固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0560.333NLFIXED IND 33UH 2.2A 93 MOHM SMD |
2,341 | - |
|
数据表 |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 33 µH | ±25% | 2.2 A | 2.3A | Shielded | 93mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
CMLB104T-4R7MSFIXED IND 4.7UH 8.5A 20MOHM SMD |
2,092 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 8.5 A | 13A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH104RNP-331NCFIXED IND 330UH 520MA 1.09OHM SM |
2,091 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±30% | 520 mA | 700mA | Shielded | 1.09Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-330MSFIXED IND 33UH 4.4A 91 MOHM SMD |
1,613 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 4.4 A | 5A | Shielded | 91mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
MPXV1D1054L330FIXED IND 33UH 4.6A 80.5MOHM SMD |
1,389 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 4.6 A | 6A | Shielded | 80.5mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|

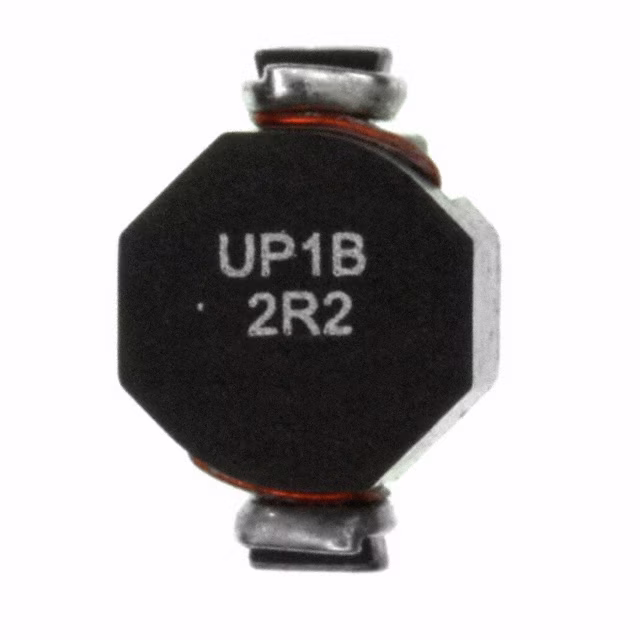

UP1B-2R2-RFIXED IND 2.2UH 3.1A 36.3MOHM SM |
1,167 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.1 A | 3.5A | Unshielded | 36.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CMLB104T-100MSFIXED IND 10UH 7.5A 30 MOHM SMD |
1,092 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 7.5 A | 7.2A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D1054L1R0FIXED IND 1UH 22.9A 3.34MOHM SMD |
1,070 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 22.9 A | 27A | Shielded | 3.34mOhm Max | - | 31MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
SCIHP0412-R047FIXED IND 47NH 13A SMD |
1,058 | - |
|
数据表 |
SCIHP0412 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 nH | ±20% | 13 A | 32A | Shielded | - | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.047" (1.20mm) |
|
CMLS104T-R56MSFIXED IND 560NH 25A 1.8MOHM SMD |
995 | - |
|
数据表 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 560 nH | ±20% | 25 A | 40A | Shielded | 1.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-R36MSFIXED IND 360NH 33A 1.18MOHM SMD |
951 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 360 nH | ±20% | 33 A | 42A | Shielded | 1.18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-R56MSFIXED IND 560NH 25A 1.8MOHM SMD |
950 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 560 nH | ±20% | 25 A | 28A | Shielded | 1.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-3R3MSFIXED IND 3.3UH 10A 12 MOHM SMD |
811 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 10 A | 13.5A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLS104T-R22MSFIXED IND 220NH 40A 0.95MOHM SMD |
811 | - |
|
数据表 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 220 nH | ±20% | 40 A | 75A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-220MSFIXED IND 22UH 5A 66 MOHM SMD |
397 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 5 A | 5.4A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D1054LR33FIXED IND 330NH 37.3A 1.27 MOHM |
353 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 37.3 A | 60A | Shielded | 1.27mOhm Max | - | 56MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
B82472P6684M000FIXED IND 680UH 250MA 2.75OHM SM |
327 | - |
|
数据表 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 250 mA | 200mA | Shielded | 2.75Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
MPXV1D1054L100FIXED IND 10UH 7.9A 27.6MOHM SMD |
127 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 7.9 A | 12A | Shielded | 27.6mOhm Max | - | 9.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
PG0426.471NLFIXED IND 470NH 20A 3.4 MOHM SMD |
1,400 | - |
|
数据表 |
PG0426NL | Nonstandard | Tray | Active | Wirewound | - | 470 nH | ±20% | 20 A | 26A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

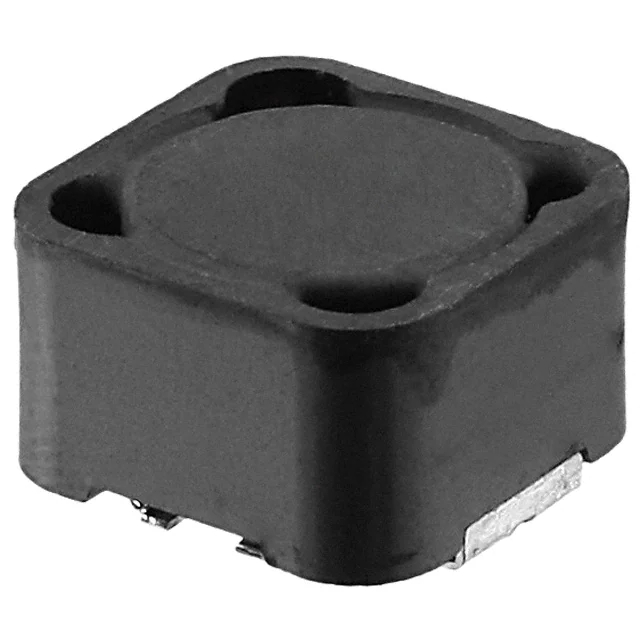

P1173.372NLFIXED IND 3.7UH 8.3A 8.5MOHM SMD |
1,928 | - |
|
数据表 |
P1173NL | Nonstandard | Tray | Active | Wirewound | - | 3.7 µH | ±30% | 8.3 A | 9.2A | Shielded | 8.5mOhm Max | - | 37MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
