固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0926.102NLFIXED IND 1UH 30A 1.2 MOHM SMD |
1,190 | - |
|
数据表 |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 30 A | 34A | Unshielded | 1.2mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.182NLFIXED IND 1.8UH 22A 2.2 MOHM SMD |
1,190 | - |
|
数据表 |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 1.8 µH | ±20% | 22 A | 25A | Unshielded | 2.2mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.282NLFIXED IND 2.8UH 19A 2.9 MOHM SMD |
1,190 | - |
|
数据表 |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 19 A | 20A | Unshielded | 2.9mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.872NLFIXED IND 8.7UH 11A 8 MOHM SMD |
1,190 | - |
|
数据表 |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 8.7 µH | ±20% | 11 A | 11.5A | Unshielded | 8mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.153NLFIXED IND 15UH 8A 12.5 MOHM SMD |
1,183 | - |
|
数据表 |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±20% | 8 A | 9A | Unshielded | 12.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
PG0434.142NLFIXED IND 1.4UH 27A 2.1 MOHM SMD |
110 | - |
|
数据表 |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 1.4 µH | ±20% | 27 A | 28A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
MPI4012V2-2R2-RFIXED IND 2.2UH 2.9A 90 MOHM SMD |
0 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 2.9 A | 4.2A | Shielded | 90mOhm Max | - | 35MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|

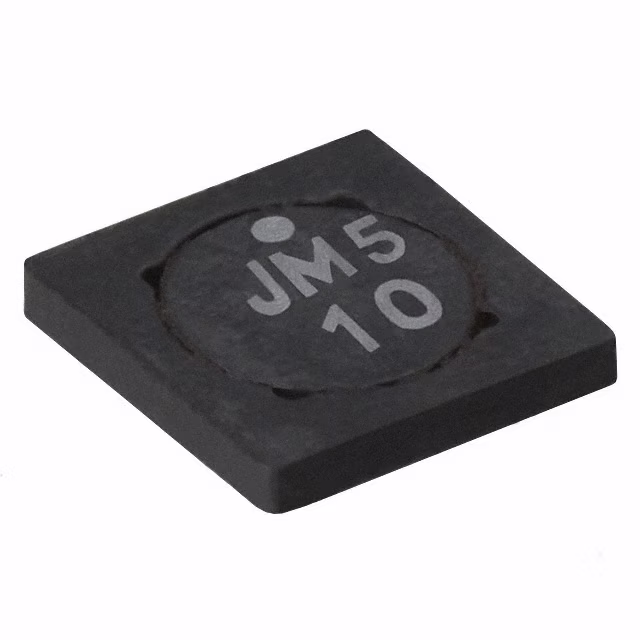

SD10-100-RFIXED IND 10UH 760MA 336MOHM SMD |
4,344 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 760 mA | 752mA | Shielded | 336mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
SBC8-102-761FIXED IND 1MH 760MA 780 MOHM TH |
1,124 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 760 mA | 1.1A | Unshielded | 780mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|

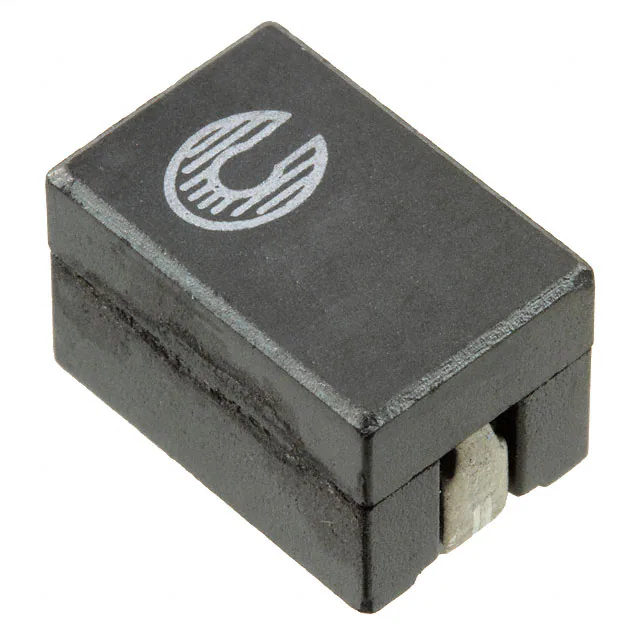

FP1208R1-R23-RFIXED IND 230NH 50A 0.29MOHM SMD |
477 | - |
|
数据表 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 230 nH | ±10% | 50 A | 61A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
|
FP1208R1-R25-RFIXED IND 250NH 50A 0.29MOHM SMD |
322 | - |
|
数据表 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 250 nH | ±10% | 50 A | 55A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
|
FP1208R1-R15-RFIXED IND 150NH 50A 0.29MOHM SMD |
198 | - |
|
数据表 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 50 A | 85A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
1mm.jpg)
|
784383230047FIXED IND 470NH 3.2A 48 MOHM SMD |
3,000 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 3.2 A | 5.5A | Shielded | 48mOhm Max | - | 170MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438323068FIXED IND 6.8UH 850MA 648MOHM SM |
2,980 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 6.8 µH | ±30% | 850 mA | 1.55A | Shielded | 648mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
784383230068FIXED IND 680NH 3.1A 60 MOHM SMD |
2,882 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 680 nH | ±30% | 3.1 A | 4.7A | Shielded | 60mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438323015FIXED IND 1.5UH 1.8A 110MOHM SMD |
2,850 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.5 µH | ±30% | 1.8 A | 3.5A | Shielded | 110mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
784383230033FIXED IND 330NH 3.4A 38 MOHM SMD |
2,812 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 330 nH | ±30% | 3.4 A | 6.2A | Shielded | 38mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438323022FIXED IND 2.2UH 1.3A 176MOHM SMD |
2,463 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 2.2 µH | ±30% | 1.3 A | 2.5A | Shielded | 176mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438323010FIXED IND 1UH 2.5A 75 MOHM SMD |
2,381 | - |
|
数据表 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1 µH | ±30% | 2.5 A | 4A | Shielded | 75mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

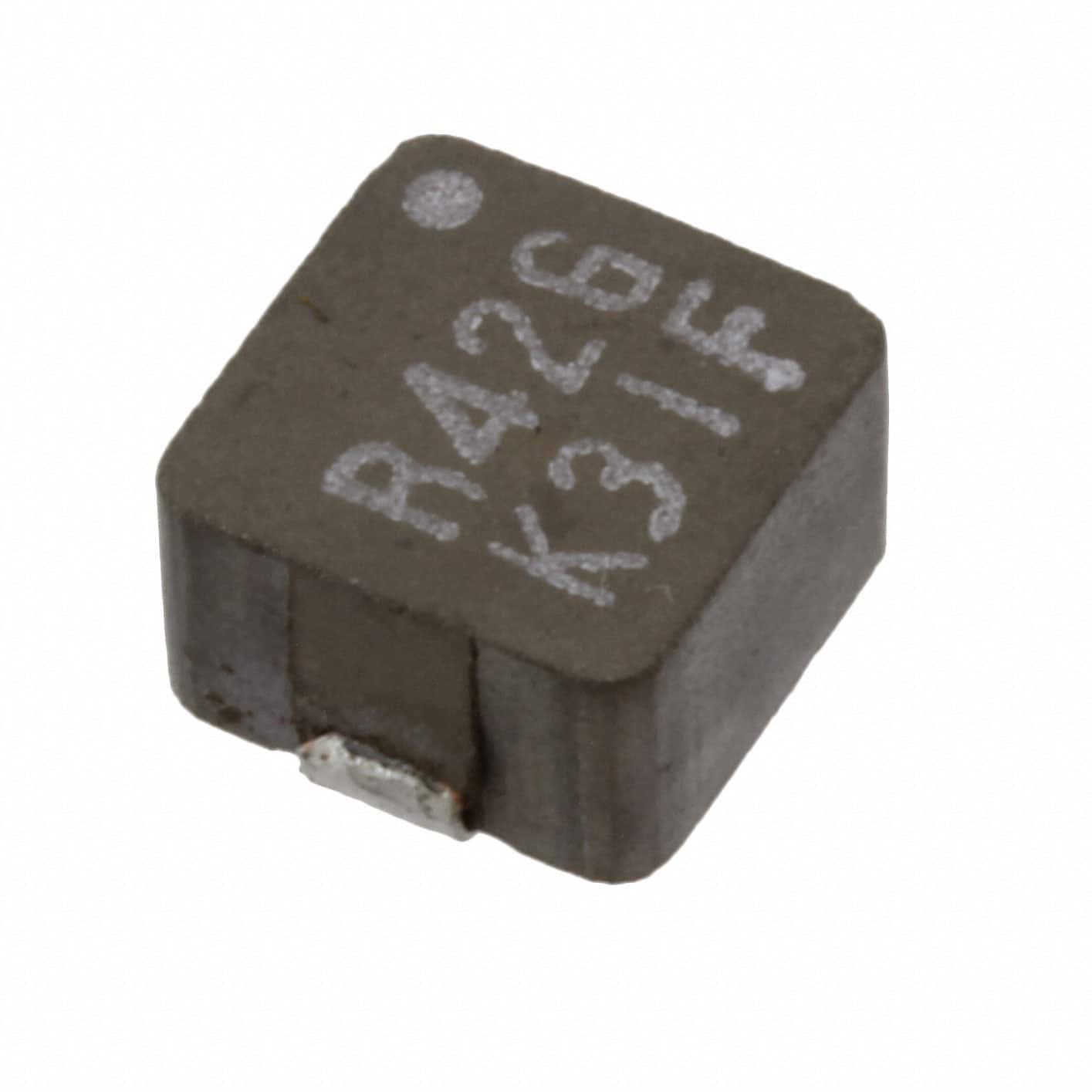

MPCG0740LR42FIXED IND 420NH 22A 1.55MOHM SMD |
2,000 | - |
|
数据表 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 420 nH | ±20% | 22 A | 20A | Shielded | 1.55mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
