固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBU9664100LT-R07MFIXED IND 70NH 75A 0.138MOHM SMD |
680 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 70 nH | ±20% | 75 A | - | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
MPX1D1250L2R2FIXED IND 2.2UH 21A 4.8 MOHM SMD |
483 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 21 A | 28.5A | Shielded | 4.8mOhm Max | - | 21MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
VLBS1007083T-R18LFIXED IND 180NH 70A 0.18MOHM SMD |
400 | - |
|
数据表 |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±15% | 70 A | 56A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.327" (8.30mm) |
|
FP1008-180-RFIXED IND 180NH 63A 0.17MOHM SMD |
365 | - |
|
数据表 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 63 A | - | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|

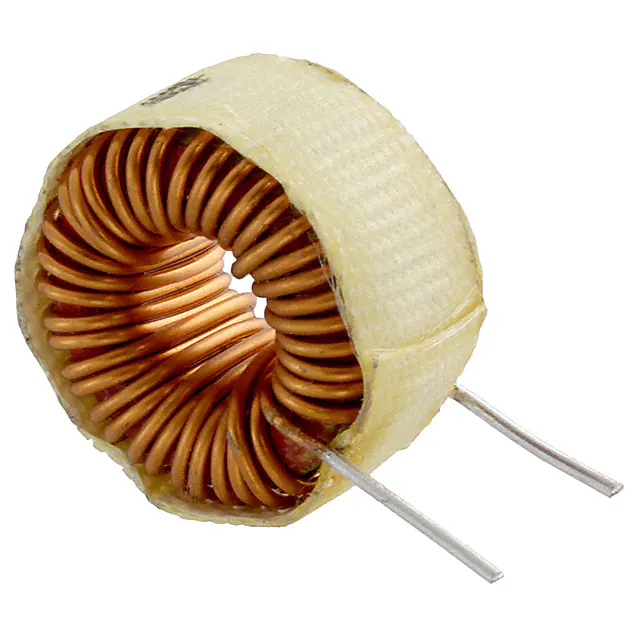

2000-4R7-H-RCFIXED IND 4.7UH 10.1A 6.4MOHM TH |
234 | - |
|
数据表 |
2000 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 4.7 µH | ±20% | 10.1 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia (17.27mm) | 0.410" (10.41mm) |
|
7447789239FIXED IND 390UH 300MA 2.94OHM SM |
2,500 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 300 mA | 340mA | Shielded | 2.94Ohm Max | - | 4.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
744778122FIXED IND 22UH 1.38A 190MOHM SMD |
2,037 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.38 A | 1.4A | Shielded | 190mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
744778926FIXED IND 680UH 220MA 5.73OHM SM |
1,977 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 220 mA | 220mA | Shielded | 5.73Ohm Max | - | 3.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
74477826FIXED IND 680UH 220MA 5.73OHM SM |
1,907 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 220 mA | 220mA | Shielded | 5.73Ohm Max | - | 3.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
PE-53828SNLTFIXED IND 168UH 1.02A 400MOHM SM |
1,787 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 168 µH | ±20% | 1.02 A | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
784777101FIXD IND 100UH 720MA 470MOHM SMD |
1,638 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 720 mA | 800mA | Shielded | 470mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
|
|
744778233FIXED IND 330UH 320MA 2.62OHM SM |
1,595 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 320 mA | 350mA | Shielded | 2.62Ohm Max | - | 4.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
74477825FIXED IND 560UH 270MA 4.67OHM SM |
1,567 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 270 mA | 300mA | Shielded | 4.67Ohm Max | - | 3.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
784778100FIXED IND 10UH 1.85A 126MOHM SMD |
1,554 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 1.85 A | 2.2A | Shielded | 126mOhm Max | - | 34.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7332 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
7447789127FIXED IND 27UH 1.27A 210MOHM SMD |
1,486 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.27 A | 1.35A | Shielded | 210mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
784777470FIXED IND 47UH 1.15A 300MOHM SMD |
1,230 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 1.15 A | 1.25A | Shielded | 300mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
|
|
784778068FIXED IND 6.8UH 2.3A 94 MOHM SMD |
1,167 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 2.3 A | 2.5A | Shielded | 94mOhm Max | - | 40.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7332 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
784778101FIXED IND 100UH 720MA 720MOHM SM |
1,103 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 720 mA | 750mA | Shielded | 720mOhm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7332 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
784777220FIXED IND 22UH 1.4A 215 MOHM SMD |
995 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 1.4 A | 1.8A | Shielded | 215mOhm Max | - | 18.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
|
|
744778156FIXED IND 56UH 840MA 470MOHM SMD |
975 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 840 mA | 880mA | Shielded | 470mOhm Max | - | 12.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
