保险丝座
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 保险丝尺寸 | 电流额定值（安培） | 适用范围/相关产品 | 保险丝类型 | 保险丝座类型 | 电路数量 | 电压 | 方向 | 端接样式 | 触点材料 | 触点表面处理 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK/HTB-62IFUSE HLDR CART 250V 20A PNL MNT |
5,100 | - |
|
数据表
|
HTB | Bulk | Obsolete | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.187" (4.7mm) | - | - | - |
|
|
BK/HTB-66IFUSE HLDR CART 250V 20A PNL MNT |
3,823 | - |
|
数据表
|
HTB | Bulk | Obsolete | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.250" (6.3mm) | - | - | - |
|
|
HTB-26FUSE HLDR CART 250V 20A PNL MNT |
9,817 | - |
|
数据表
|
- | Bulk | Obsolete | Panel Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 20 A | 5mm x 20mm, 6.35mm x 31.75mm | Cartridge | Holder | 1 | 250V | Vertical | Quick Connect - 0.250" (6.3mm) | - | - | - |
|

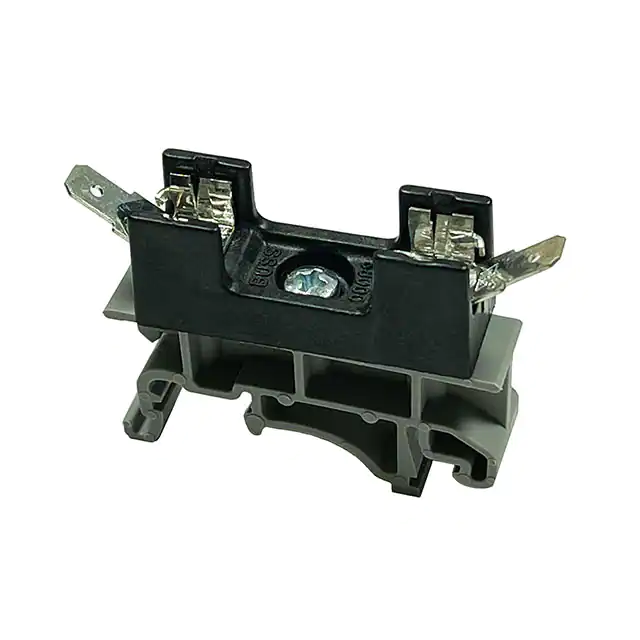

BK-S-8102-1X-DINFUSE BLOCK 1/4" DIN RAIL MNT 20A |
3,615 | - |
|
数据表
|
S-8000 | Bulk | Obsolete | Chassis Mount | 0.25" Dia x 1.26" L (6.3mm x 32mm) | - | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 6 | 600V | Horizontal and Vertical | Screw Terminal | - | - | - |
|
BF201-10PFUSE BLOCK CARTRIDGE CHASSIS MNT |
2,626 | - |
|
数据表
|
- | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | - | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 10 | - | - | - | Brass | Brass | - |
|
BF202-6PFUSE BLOCK CARTRIDGE CHASSIS MNT |
8,284 | - |
|
数据表
|
- | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | - | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 6 | - | - | - | Brass | Brass | - |
|
|
006710335FUSE HOLDERCH10X38/85 2PCS REQUI |
7,544 | - |
|
数据表
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
02860377ZFUSE HLDR CART 250V 10A PNL MNT |
2,869 | - |
|
数据表
|
286 | Bulk | Active | Panel Mount | 0.177" Dia x 0.57" L (4.5mm x 14.48mm) | 10 A | 2AG, 5mm x 15mm | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.110" (2.8mm) | Copper Alloy | Tin | - |
|
HTC-50MFUSE HOLDER CART 250V 6.3A PCB |
5,714 | - |
|
数据表
|
HTC | Bulk | Not For New Designs | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 6.3 A | 5mm x 20mm | Cartridge | Holder | 1 | 250V | Horizontal | PC Pin | Brass | Tin | - |
|
|
HHDFUSE HLDR BLADE 32V 24A IN LINE |
9,962 | - |
|
数据表
|
HHD | Bulk | Active | Free Hanging (In-Line) | 0.75" L x 0.2" W (19.1mm x 5.1mm) | 24 A | ATC, ATO | Blade | Holder | 1 | 32V | - | Wire Leads | - | - | - |
|
BM6031PQFUSE BLOCK CART 600V 30A CHASSIS |
6,667 | - |
|
数据表
|
BM | Bulk | Obsolete | Chassis Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Block | 1 | 600V | - | Screw Terminal, Pressure Plate, Quick Connect | - | - | - |
|

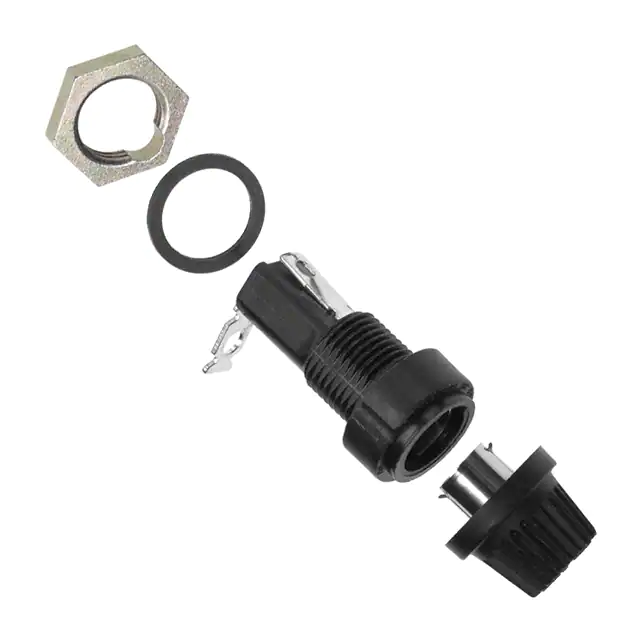

03420022XFUSE HLDR CART 250V 20A PNL MNT |
9,451 | - |
|
数据表
|
342 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | Brass | Tin | - |
|
|
002530001FUSE HOLDERPCF820A1P 400VACAC22B |
9,255 | - |
|
数据表
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
002550001FUSE HOLDER PCF10 30A 1P 600VAC/ |
7,924 | - |
|
数据表
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

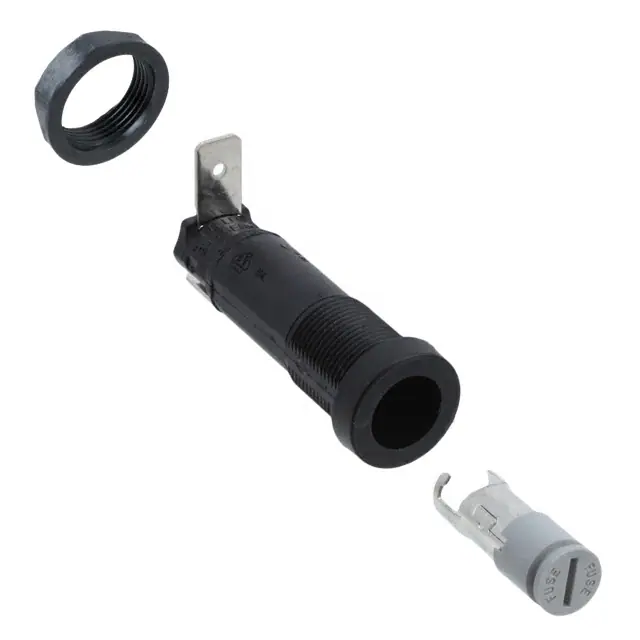

03453LS7XFUSE HLDR CART 250V 20A PNL MNT |
9,855 | - |
|
数据表
|
345 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.250" (6.3mm) | Copper Alloy | Tin | - |
|
HHCFUSE HLDR BLADE 32V 16A IN LINE |
7,502 | - |
|
数据表
|
HHC | Bulk | Active | Free Hanging (In-Line) | 0.75" L x 0.2" W (19.1mm x 5.1mm) | 16 A | ATC, ATO | Blade | Holder | 1 | 32V | - | Wire Leads | - | - | - |
|
|
BK/1A5495FUSE CLIP BULK VERSION |
5,948 | - |
|
数据表
|
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

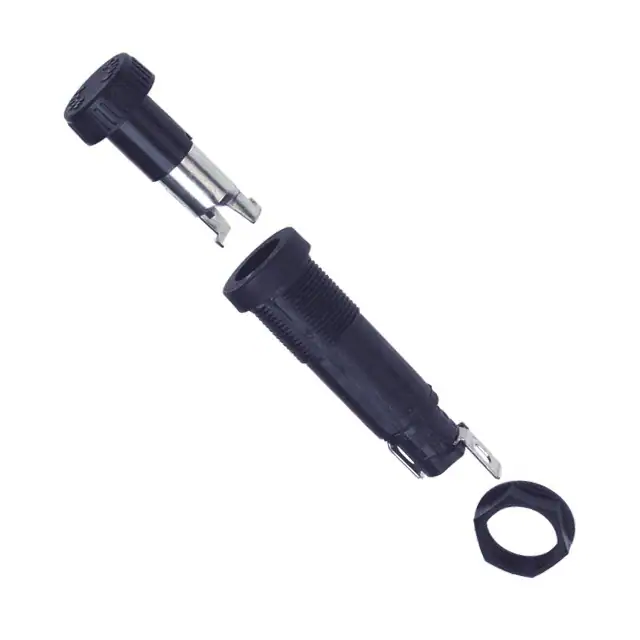

03453LF8XFUSE HLDR CART 250V 20A PNL MNT |
5,233 | - |
|
数据表
|
345 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.250" (6.3mm) | Copper Alloy | Tin | - |
|
03560003ZFUSE BLOCK CART 250V 15A CHASSIS |
6,322 | - |
|
数据表
|
356 | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 15 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 3 | 600V | - | Screw Terminal | Spring Brass | Nickel | - |
|
|
BMA6031PQFUSE BLOCK CART 600V 30A CHASSIS |
5,913 | - |
|
数据表
|
BMA | Bulk | Obsolete | Chassis Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Block | 1 | 600V | - | Screw Terminal, Pressure Plate, Quick Connect | - | - | - |
