首页 > 产品 > 继电器 > 高频（RF）继电器

高频（RF）继电器

制造商	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
Coto Technology Omron Electronics Inc-EMC Div Panasonic Electric Works Pasternack Standex-Meder Electronics TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity AMP Connectors TE Connectivity Potter & Brumfield Relays	* - 2200 2300 2600 2900 9000 9200 9270 9290 9400 9800 9853 9900 ARA ARE ARJ ARN ARS ARX ARXP B10 B40 B41 CRF G5Y-1 G6K G6K-RF G6W G6Y G6Z G9YA HF HF3, AXICOM HF3S, AXICOM HF6, AXICOM MW3S, CII MW4HP, CII MW6, CII MW6HP, CII MW6S, CII RK RP	- Box Bulk Retail Package Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Not For New Designs Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 100 mA 11.3 mA 11.7 mA 12 mA 12.5 mA 13.3 mA 13.5 mA 133 mA 133.3 mA 14 mA 14.3 mA 14.5 mA 15 mA 15.5 mA 15.6 mA 15.7 mA 155 mA 16 mA 16.7 mA 17.6 mA 17.9 mA 18.5 mA 20 mA 21.1 mA 21.7 mA 22.2 mA 23.2 mA 23.3 mA 23.4 mA 24 mA 25 mA 26.7 mA 28 mA 28.1 mA 28.6 mA 29.2 mA 30 mA 31 mA 31.1 mA 31.3 mA 33 mA 33.3 mA 4.2 mA 4.6 mA 40 mA 41.7 mA 43 mA 44.4 mA 45.5 mA 46.7 mA 46.9 mA 47 mA 47.1 mA 47.9 mA 48 mA 5.8 mA 50 mA 58.5 mA 6.3 mA 60 mA 66.7 mA 7.8 mA 71.1 mA 72 mA 8 mA 8.3 mA 80 mA 88.9 mA 9.1 mA 93.8 mA	- 1.5VDC 12VDC 18VDC 24VDC 28VDC 3.3VDC 3VDC 4.5VDC 48VDC 5VDC 6VDC 9VDC	- 6PST-NO (6 Form A) DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 4	- 1 A 1.5 A 10 mA 100 mA 140 mA 2 A 250 mA 300 mA 500 mA	- 100VAC, 100VDC - Max 125VAC, 125VDC - Max 125VAC, 60VDC - Max 12VDC - Nom 150VAC, 150VDC - Max 170VAC, 170VDC - Max 200VAC, 200VDC - Max 200VDC - Max 250VAC - Max 250VAC, 220VDC - Max 28VDC - Nom 30VAC, 30VDC - Max 30VDC - Max 30VDC - Nom 500VAC, 500VDC - Max 50VAC, 50VDC - Max	- 1.13 VDC 10.5 VDC 13.4 VDC 16.8 VDC 18 VDC 19.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.7 VDC 22.4 VDC 3.38 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 36 VDC 4 VDC 4.5 VDC 4.8 VDC 6.7 VDC 6.75 VDC 7.2 VDC 8.4 VDC 9 VDC 9.6 VDC	- 0.15 VDC 0.22 VDC 0.3 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.6 VDC 0.75 VDC 0.9 VDC 1 VDC 1.2 VDC 1.8 VDC 2 VDC 2.4 VDC 3.6 VDC 4.8 VDC	- 0.1 ms 0.25 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- 0.02 ms 0.03 ms 0.05 ms 0.1 ms 0.15 ms 0.2 ms 0.5 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- Diode Diode, Magnetic Shield Magnetic Shield Sealed - Flux Protection Sealed - Fully Sealed - Hermetically TTL Driven	- Chassis Mount Surface Mount Through Hole	- Axial BGA Gull Wing J Lead PC Pin SMD (SMT) Tab Solder Lug	- -20°C ~ 125°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -30°C ~ 70°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 85°C -65°C ~ 125°C

全部重置

全部应用

结果

厂商型号	可用性	价格	数量	数据表	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
9814-03-20 RELAY RF SPST-NO 250MA 3.3V Coto Technology	3,373	-	请求报价	数据表	9800	Tube	Active	Non Latching	47.1 mA	3.3VDC	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	2.5 VDC	0.4 VDC	0.25 ms	0.05 ms	Magnetic Shield	Surface Mount	J Lead	-20°C ~ 85°C
9270-05-00 RELAY RF SPST-NO 500MA 5V Coto Technology	327	-	请求报价	数据表	9270	Bulk	Active	Non Latching	50 mA	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	2.5 VDC	0.4 VDC	0.4 ms	0.1 ms	Magnetic Shield	Surface Mount	Gull Wing	-20°C ~ 125°C
9402-12-00 RELAY RF SPST-NO 500MA 12V Coto Technology	1,532	-	请求报价	数据表	9400	Bulk	Active	Non Latching	14.5 mA	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	9 VDC	1 VDC	0.4 ms	0.2 ms	-	Surface Mount	Gull Wing	-20°C ~ 85°C
9402-05-20TR RELAY RF SPST-NO 500MA 5V Coto Technology	3,876	-	请求报价	数据表	9400	Tape & Reel (TR)	Active	Non Latching	25 mA	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	0.4 ms	0.2 ms	-	Surface Mount	J Lead	-20°C ~ 85°C
9814-03-00 RELAY RF SPST-NO 250MA 3.3V Coto Technology	3,526	-	请求报价	数据表	9800	Tube	Active	Non Latching	47.1 mA	3.3VDC	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	2.5 VDC	0.4 VDC	0.25 ms	0.05 ms	Magnetic Shield	Surface Mount	Gull Wing	-20°C ~ 85°C

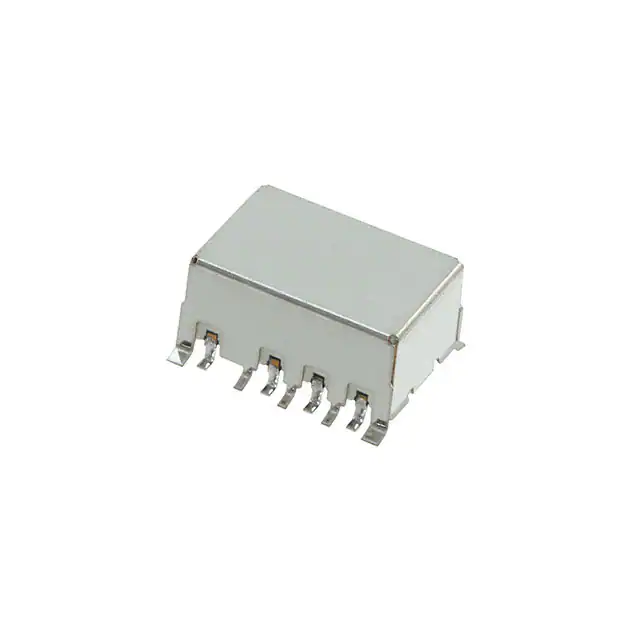

G6K-2F-RF-TR03 DC3 RELAY RF DPDT 1A 3V Omron Electronics Inc-EMC Div	2,139	-	请求报价	数据表	G6K-RF	Tape & Reel (TR)	Active	Non Latching	33 mA	3VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	2.4 VDC	0.3 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
2200-2302 RELAY RF SPST-NO 500MA 5V Coto Technology	4,135	-	请求报价	数据表	2200	Tube	Active	Non Latching	33.3 mA	5VDC	SPST-NO (1 Form A)	500 mA	150VAC, 150VDC - Max	3.6 VDC	0.5 VDC	0.55 ms	0.1 ms	Sealed - Hermetically	Through Hole	PC Pin	-20°C ~ 85°C

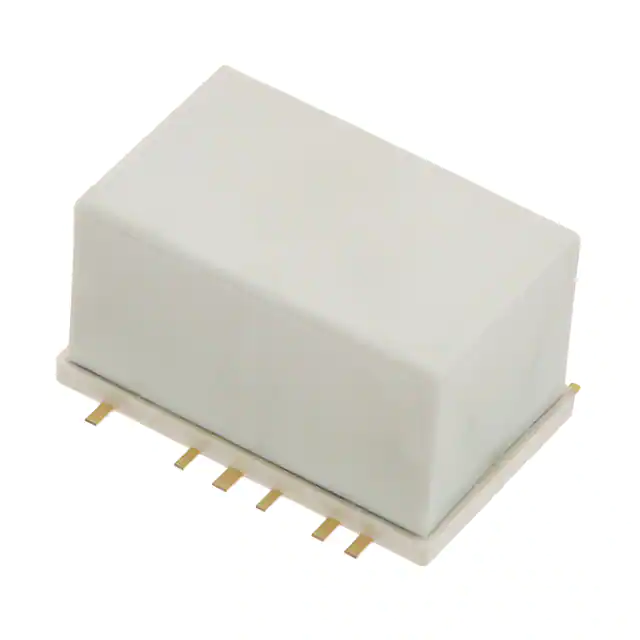

ARS1012 RELAY RF SPDT 500MA 12V Panasonic Electric Works	164	-	请求报价	数据表	ARS	Box	Active	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
G6K-2F-RF-S-TR03 DC4.5 RELAY RF DPDT 1A 4.5V Omron Electronics Inc-EMC Div	711	-	请求报价	数据表	G6K-RF	Tape & Reel (TR)	Active	Non Latching	23.2 mA	4.5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.6 VDC	0.45 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C

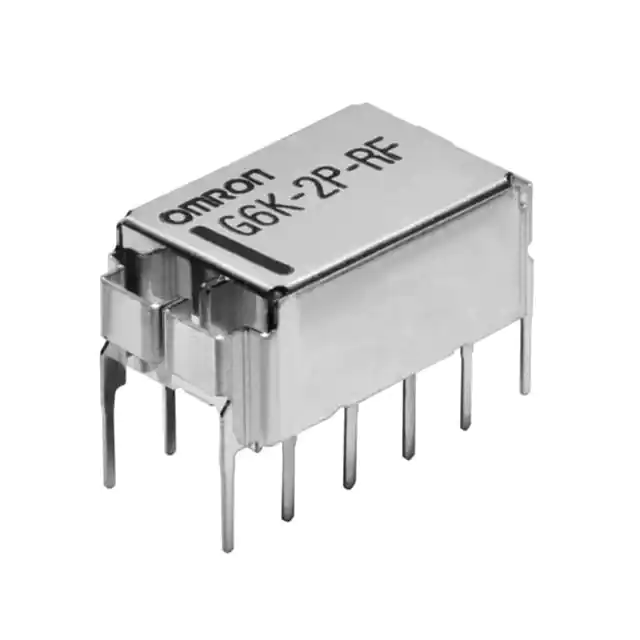

G6K-2P-RF DC4.5 RELAY RF DPDT 1A 4.5V Omron Electronics Inc-EMC Div	280	-	请求报价	数据表	G6K-RF	Tube	Active	Non Latching	23.2 mA	4.5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.6 VDC	0.45 VDC	3 ms	3 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARS14Y12 RELAY RF SPDT 500MA 12V Panasonic Electric Works	298	-	请求报价	数据表	ARS	Tube	Active	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	10 ms	6 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
ARS10Y12 RELAY RF SPDT 500MA 12V Panasonic Electric Works	1,055	-	请求报价	数据表	ARS	Tube	Active	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	10 ms	6 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C

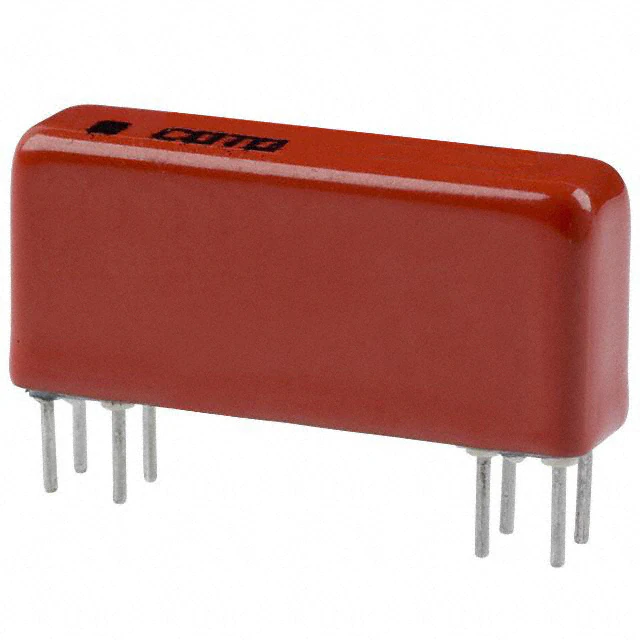

2332-05-020 RELAY RF DPST-NO 500MA 5V Coto Technology	267	-	请求报价	数据表	2300	Tray	Active	Non Latching	28.6 mA	5VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	3.8 VDC	0.4 VDC	0.5 ms	0.15 ms	Sealed - Hermetically	Through Hole	PC Pin	-20°C ~ 85°C
1462050-4 RELAY RF SPDT 2A 12V TE Connectivity Potter & Brumfield Relays	525	-	请求报价	数据表	HF3, AXICOM	Tape & Reel (TR)	Active	Non Latching	11.7 mA	12VDC	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	9 VDC	1.2 VDC	5 ms	4 ms	-	Surface Mount	Gull Wing	-55°C ~ 85°C
1462051-4 RELAY RF SPDT 2A 12V TE Connectivity Potter & Brumfield Relays	1,308	-	请求报价	数据表	HF3, AXICOM	Tape & Reel (TR)	Active	Non Latching	11.7 mA	12VDC	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	9 VDC	1.2 VDC	5 ms	4 ms	-	Surface Mount	Gull Wing	-55°C ~ 85°C
G6K-2F-RF-S DC24 RELAY RF DPDT 1A 24V Omron Electronics Inc-EMC Div	647	-	请求报价	数据表	G6K-RF	Tray	Active	Non Latching	4.6 mA	24VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	19.2 VDC	2.4 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
ARA220A12 RELAY RF DPDT 1A 12V Panasonic Electric Works	633	-	请求报价	数据表	ARA	Tube	Active	Latching, Dual Coil	11.7 mA	12VDC	DPDT (2 Form C)	1 A	30VDC - Max	9 VDC	-	4 ms	4 ms	-	Surface Mount	Gull Wing	-40°C ~ 85°C
ARA220A05 RELAY RF DPDT 1A 5V Panasonic Electric Works	1,409	-	请求报价	数据表	ARA	Tube	Active	Latching, Dual Coil	28.1 mA	5VDC	DPDT (2 Form C)	1 A	30VDC - Max	3.75 VDC	-	4 ms	4 ms	-	Surface Mount	Gull Wing	-40°C ~ 85°C
G6K-2F-RF-T-TR03 DC4.5 RELAY RF DPDT 1A 4.5V Omron Electronics Inc-EMC Div	4,982	-	请求报价	数据表	G6K-RF	Tape & Reel (TR)	Active	Non Latching	23.2 mA	4.5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.6 VDC	0.45 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6K-2F-RF-TR03 DC4.5 RELAY RF DPDT 1A 4.5V Omron Electronics Inc-EMC Div	363	-	请求报价	数据表	G6K-RF	Tape & Reel (TR)	Active	Non Latching	23.2 mA	4.5VDC	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.6 VDC	0.45 VDC	3 ms	3 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C

共995条记录«上一页 1 2 345 6 7...50 下一页»
