首页 > 产品 > 继电器 > 高频（RF）继电器

高频（RF）继电器

制造商	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
Coto Technology Omron Electronics Inc-EMC Div Panasonic Electric Works Pasternack Standex-Meder Electronics TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity AMP Connectors TE Connectivity Potter & Brumfield Relays	* - 2200 2300 2600 2900 9000 9200 9270 9290 9400 9800 9853 9900 ARA ARE ARJ ARN ARS ARX ARXP B10 B40 B41 CRF G5Y-1 G6K G6K-RF G6W G6Y G6Z G9YA HF HF3, AXICOM HF3S, AXICOM HF6, AXICOM MW3S, CII MW4HP, CII MW6, CII MW6HP, CII MW6S, CII RK RP	- Box Bulk Retail Package Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Not For New Designs Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 100 mA 11.3 mA 11.7 mA 12 mA 12.5 mA 13.3 mA 13.5 mA 133 mA 133.3 mA 14 mA 14.3 mA 14.5 mA 15 mA 15.5 mA 15.6 mA 15.7 mA 155 mA 16 mA 16.7 mA 17.6 mA 17.9 mA 18.5 mA 20 mA 21.1 mA 21.7 mA 22.2 mA 23.2 mA 23.3 mA 23.4 mA 24 mA 25 mA 26.7 mA 28 mA 28.1 mA 28.6 mA 29.2 mA 30 mA 31 mA 31.1 mA 31.3 mA 33 mA 33.3 mA 4.2 mA 4.6 mA 40 mA 41.7 mA 43 mA 44.4 mA 45.5 mA 46.7 mA 46.9 mA 47 mA 47.1 mA 47.9 mA 48 mA 5.8 mA 50 mA 58.5 mA 6.3 mA 60 mA 66.7 mA 7.8 mA 71.1 mA 72 mA 8 mA 8.3 mA 80 mA 88.9 mA 9.1 mA 93.8 mA	- 1.5VDC 12VDC 18VDC 24VDC 28VDC 3.3VDC 3VDC 4.5VDC 48VDC 5VDC 6VDC 9VDC	- 6PST-NO (6 Form A) DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 4	- 1 A 1.5 A 10 mA 100 mA 140 mA 2 A 250 mA 300 mA 500 mA	- 100VAC, 100VDC - Max 125VAC, 125VDC - Max 125VAC, 60VDC - Max 12VDC - Nom 150VAC, 150VDC - Max 170VAC, 170VDC - Max 200VAC, 200VDC - Max 200VDC - Max 250VAC - Max 250VAC, 220VDC - Max 28VDC - Nom 30VAC, 30VDC - Max 30VDC - Max 30VDC - Nom 500VAC, 500VDC - Max 50VAC, 50VDC - Max	- 1.13 VDC 10.5 VDC 13.4 VDC 16.8 VDC 18 VDC 19.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.7 VDC 22.4 VDC 3.38 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 36 VDC 4 VDC 4.5 VDC 4.8 VDC 6.7 VDC 6.75 VDC 7.2 VDC 8.4 VDC 9 VDC 9.6 VDC	- 0.15 VDC 0.22 VDC 0.3 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.6 VDC 0.75 VDC 0.9 VDC 1 VDC 1.2 VDC 1.8 VDC 2 VDC 2.4 VDC 3.6 VDC 4.8 VDC	- 0.1 ms 0.25 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- 0.02 ms 0.03 ms 0.05 ms 0.1 ms 0.15 ms 0.2 ms 0.5 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- Diode Diode, Magnetic Shield Magnetic Shield Sealed - Flux Protection Sealed - Fully Sealed - Hermetically TTL Driven	- Chassis Mount Surface Mount Through Hole	- Axial BGA Gull Wing J Lead PC Pin SMD (SMT) Tab Solder Lug	- -20°C ~ 125°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -30°C ~ 70°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 85°C -65°C ~ 125°C

全部重置

全部应用

结果

厂商型号	价格	数量	数据表	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
ARE1303 RELAY RF SPDT 500MA 3V Panasonic Electric Works	-	请求报价	数据表	ARE	Tray	Obsolete	Non Latching	66.7 mA	3VDC	SPDT (1 Form C)	500 mA	30VDC - Max	2.25 VDC	0.3 VDC	10 ms	5 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARE1309 RELAY RF SPDT 500MA 9V Panasonic Electric Works	-	请求报价	数据表	ARE	Tube	Obsolete	Non Latching	22.2 mA	9VDC	SPDT (1 Form C)	500 mA	30VDC - Max	6.75 VDC	0.9 VDC	10 ms	5 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARE1324 RELAY RF SPDT 500MA 24V Panasonic Electric Works	-	请求报价	数据表	ARE	Tube	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	500 mA	30VDC - Max	18 VDC	2.4 VDC	10 ms	5 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARE13A03Z RELAY RF SPDT 500MA 3V Panasonic Electric Works	-	请求报价	数据表	ARE	Tape & Reel (TR)	Obsolete	Non Latching	66.7 mA	3VDC	SPDT (1 Form C)	500 mA	30VDC - Max	2.25 VDC	0.3 VDC	10 ms	5 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
ARE13A06 RELAY RF SPDT 500MA 6V Panasonic Electric Works	-	请求报价	数据表	ARE	Tube	Obsolete	Non Latching	33.3 mA	6VDC	SPDT (1 Form C)	500 mA	30VDC - Max	4.5 VDC	0.6 VDC	10 ms	5 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
ARE13A12Z RELAY RF SPDT 500MA 12V Panasonic Electric Works	-	请求报价	数据表	ARE	Tape & Reel (TR)	Obsolete	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	10 ms	5 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
ARE13A24 RELAY RF SPDT 500MA 24V Panasonic Electric Works	-	请求报价	数据表	ARE	Tube	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	500 mA	30VDC - Max	18 VDC	2.4 VDC	10 ms	5 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
ARE13A24Z RELAY RF SPDT 500MA 24V Panasonic Electric Works	-	请求报价	数据表	ARE	Tape & Reel (TR)	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	500 mA	30VDC - Max	18 VDC	2.4 VDC	10 ms	5 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
ARE13A4HZ RELAY RF SPDT 500MA 4.5V Panasonic Electric Works	-	请求报价	数据表	ARE	Tape & Reel (TR)	Obsolete	Non Latching	44.4 mA	4.5VDC	SPDT (1 Form C)	500 mA	30VDC - Max	3.38 VDC	0.45 VDC	10 ms	5 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C

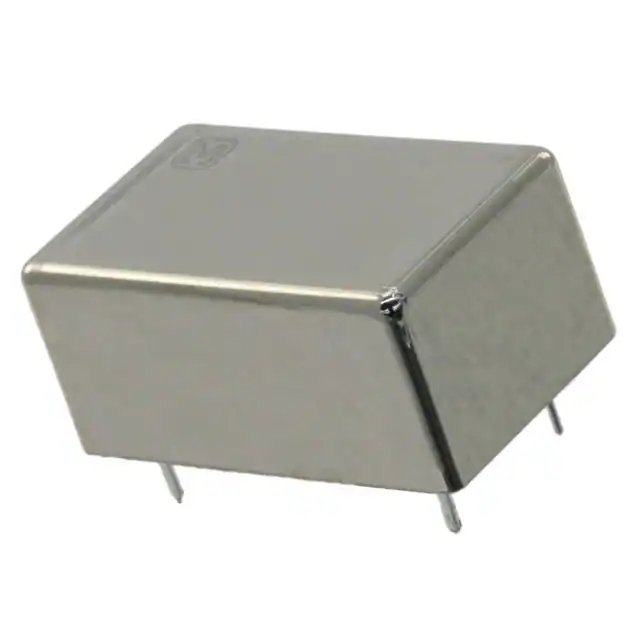

ARX1006 RELAY RF SPDT 500MA 6V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Non Latching	33.3 mA	6VDC	SPDT (1 Form C)	500 mA	30VDC - Max	4.5 VDC	0.6 VDC	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1012 RELAY RF SPDT 500MA 12V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1024 RELAY RF SPDT 500MA 24V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	500 mA	30VDC - Max	18 VDC	2.4 VDC	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1103 RELAY RF SPDT 500MA 3V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Single Coil	66.7 mA	3VDC	SPDT (1 Form C)	500 mA	30VDC - Max	2.25 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1106 RELAY RF SPDT 500MA 6V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Single Coil	33.3 mA	6VDC	SPDT (1 Form C)	500 mA	30VDC - Max	4.5 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1112 RELAY RF SPDT 500MA 12V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Single Coil	16.7 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX114H RELAY RF SPDT 500MA 4.5V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Single Coil	44.4 mA	4.5VDC	SPDT (1 Form C)	500 mA	30VDC - Max	3.38 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1206 RELAY RF SPDT 500MA 6V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Dual Coil	66.7 mA	6VDC	SPDT (1 Form C)	500 mA	30VDC - Max	4.5 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1212 RELAY RF SPDT 500MA 12V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Dual Coil	33.3 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX1224 RELAY RF SPDT 500MA 24V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Dual Coil	16.7 mA	24VDC	SPDT (1 Form C)	500 mA	30VDC - Max	18 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARX124H RELAY RF SPDT 500MA 4.5V Panasonic Electric Works	-	请求报价	数据表	ARX	Tube	Obsolete	Latching, Dual Coil	88.9 mA	4.5VDC	SPDT (1 Form C)	500 mA	30VDC - Max	3.38 VDC	-	10 ms	6 ms	-	Through Hole	PC Pin	-40°C ~ 70°C

共995条记录«上一页 1... 38 39 40 414243 44 45...50 下一页»
