工业用 DIN 导轨电源
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDR-60-5AC/DC DIN RAIL SUPPLY 5V 33W |
203 | - |
|
数据表 |
HDR-60 (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 6.5A | 33W | 4 kV | Industrial, ITE (Commercial) | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|
1234302AC/DC DIN RAIL SUPPLY 24V 120W |
186 | - |
|
数据表 |
- | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Laboratory | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | CB, UL | 61010-1 | |
|
DDR-30G-5DC/DC DIN RAIL SUPPLY 5V 30W |
12 | - |
|
数据表 |
DDR-30 (30W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 6A | 30W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - | |
|
|
HDR-60-12AC/DC DIN RAIL SUPPLY 12V 54W |
366 | - |
|
数据表 |
HDR-60 (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 4.5A | 54W | 4 kV | Industrial, ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|
DRC-24V30W1AZAC/DC DIN RAIL SUPPLY 24V 30W |
196 | - |
|
数据表 |
Chrome (30W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | ITE (Commercial) | 87% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|
MDR-60-5AC/DC DIN RAIL SUPPLY 5V 50W |
604 | - |
|
数据表 |
MDR-60 (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 10A | 50W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 78% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|

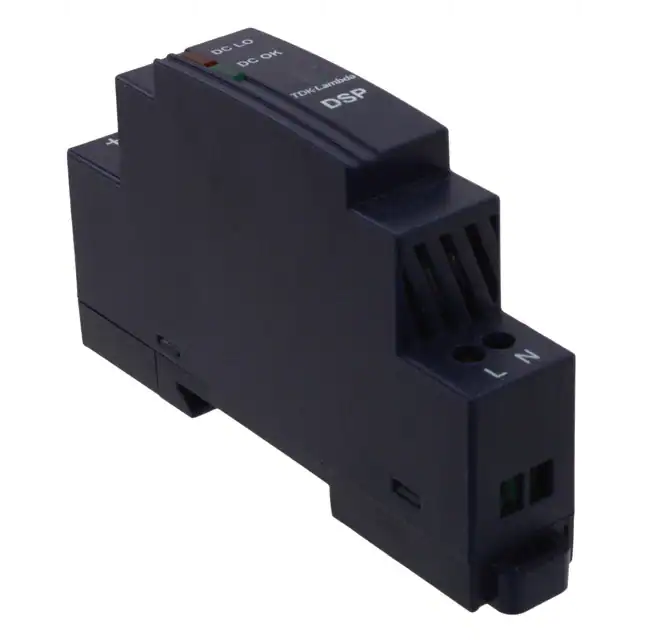

DSP10-24AC/DC DIN RAIL SUPPLY 24V 10W |
135 | - |
|
数据表 |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 420mA | 10W | 3 kV | ITE (Commercial) | 80% | -25°C ~ 71°C (With Derating) | Universal Input | CE | - | |
|
NDR-120-12AC/DC DIN RAIL SUPPLY 12V 120W |
5 | - |
|
数据表 |
NDR-120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | ITE (Commercial) | 85.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, TUV | - | |
|
NDR-75-48AC/DC DIN RAIL SUPPLY 48V 77W |
164 | - |
|
数据表 |
NDR-75 (75W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 1.6A | 77W | 3 kV | Industrial, ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, TUV | - | |
|
|
NDR-75-24AC/DC DIN RAIL SUPPLY 24V 77W |
147 | - |
|
数据表 |
NDR-75 (75W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 3.2A | 77W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, TUV | - | |
|
|
DDR-30L-12DC/DC DIN RAIL SUPPLY 12V 30W |
373 | - |
|
数据表 |
DDR-30 (30W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 2.5A | 30W | 4 kV | ITE (Commercial) | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - | |
|
|
DDR-30L-24DC/DC DIN RAIL SUPPLY 24V 30W |
132 | - |
|
数据表 |
DDR-30 (30W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 1.25A | 30W | 4 kV | ITE (Commercial) | 91% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - | |
|
|
DDR-30G-12DC/DC DIN RAIL SUPPLY 12V 30W |
616 | - |
|
数据表 |
DDR-30 (30W) | Box | Active | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 2.5A | 30W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - | |
|

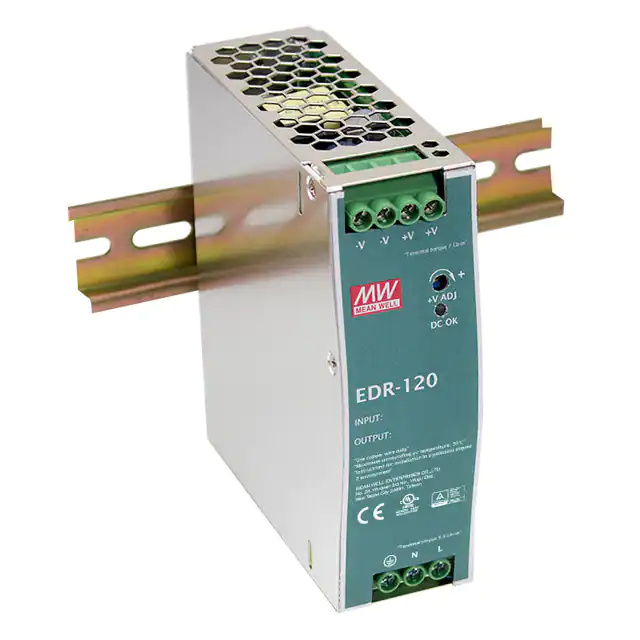

EDR-120-12AC/DC DIN RAIL SUPPLY 12V 120W |
212 | - |
|
数据表 |
EDR-120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 85% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, RCM, TUV | - | |
|
|
13356991-PHASE, OUTPUT: 5 V DC / 3 A, U |
110 | - |
|
数据表 |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 275V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | Laboratory | 82% | -10°C ~ 70°C (With Derating) | PFC, Universal Input | UL | 61010-1 | |
|
|
NDR-120-48AC/DC DIN RAIL SUPPLY 48V 120W |
126 | - |
|
数据表 |
NDR-120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, TUV | - | |
|
|
NDR-120-24AC/DC DIN RAIL SUPPLY 24V 120W |
190 | - |
|
数据表 |
NDR-120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, TUV | - | |
|
EDR-150-24AC/DC DIN RAIL SUPPLY 24V 156W |
1,235 | - |
|
数据表 |
EDR-150 (150W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 6.5A | 156W | 3 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, RCM, TUV | - | |
|
DRC-24V60W1AZAC/DC DIN RAIL SUPPLY 24V 60W |
219 | - |
|
数据表 |
Chrome (60W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|
HDR-100-24AC/DC DIN RAIL SUPPLY 24V 92W |
587 | - |
|
数据表 |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 3.83A | 92W | 4 kV | ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - |
