模拟开关、复用器、解复用器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG507ATQIC MUX DUAL 8:1 300OHM 28CDIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | - | 8:1 | 2 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 28-CDIP |
|
ADG508AKR-REELIC MUX 8:1 300OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG508AKR-REEL7IC MUX 8:1 300OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ADG509ABQIC SWITCH SP4TX2 450OHM 16CERDIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 11pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
ADG509AKR-REELIC SWITCH SP4T X 2 450OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 11pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG509AKR-REEL7IC SWITCH SP4T X 2 450OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 11pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG526ABQIC MUX 16:1 450OHM 28CDIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | - | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 28-CDIP |
|

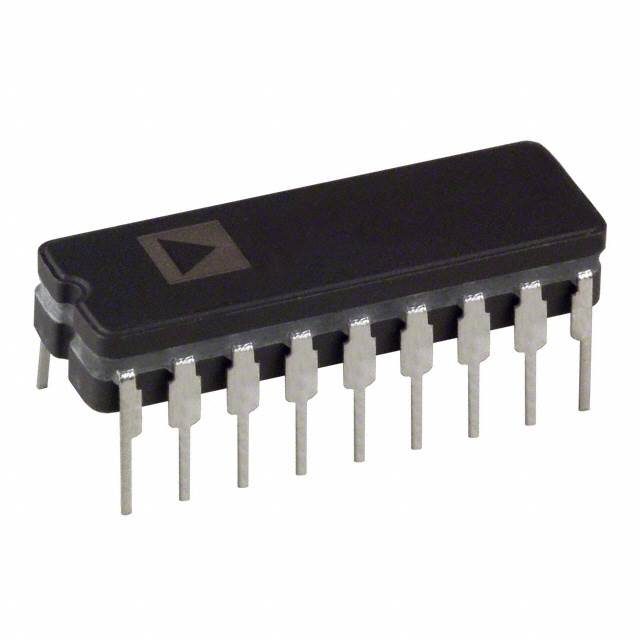

ADG528ABQIC MUX 8:1 450OHM 18CERDIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | - | 8:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 18-CERDIP |
|
ADG528AKPIC MUX 8:1 450OHM 20PLCC |
0 | - |
|
数据表 |
- | Tube | Obsolete | - | 8:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
ADG608BR-REELIC MUX 8:1 30OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 30Ohm | 5Ohm (Max) | 3.3V ~ 5V | ±5V | 75ns, 45ns | - | 6pC | 9pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ADG608BRU-REEL7IC MUX 8:1 30OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 30Ohm | 5Ohm (Max) | 3.3V ~ 5V | ±5V | 75ns, 45ns | - | 6pC | 9pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG608TRU-REEL7IC MUX 8:1 30OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 30Ohm | 5Ohm (Max) | 3.3V ~ 5V | ±5V | 75ns, 45ns | - | 6pC | 9pF, 40pF | 500pA | -85dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG609BRU-REEL7IC SWITCH SP4T X 2 30OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 30Ohm | 5Ohm (Max) | 3.3V ~ 5V | ±5V | 75ns, 45ns | - | 6pC | 9pF, 20pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG619BRM-REELIC SWITCH SPDT X 1 6.5OHM 8MSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 6.5Ohm | 700mOhm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 120ns, 75ns | 190MHz | 110pC | 25pF | 250pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG620BRM-REELIC SWITCH SPDT X 1 6.5OHM 8MSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 6.5Ohm | 700mOhm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 330ns | 190MHz | 110pC | 25pF | 250pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG633YRU-REEL7IC SWITCH SPDT X 3 75OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 75Ohm | 800mOhm | 2V ~ 12V | ±2V ~ 6V | 95ns, 40ns | 580MHz | 2pC | 4pF, 7pF | 200pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG636YRU-REELIC SWITCH SPDTX2 115OHM 14TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 135ns, 80ns | 610MHz | -1.2pC | 5pF, 8pF | 100pA | -65dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
ADG658YRU-REEL7IC MUX 8:1 75OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 115ns, 45ns | 210MHz | 2pC | 4pF, 23pF | 200pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG659YRU-REEL7IC SWITCH SP4T X 2 75OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 75Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 115ns, 45ns | 400MHz | 2pC | 4pF, 12pF | 200pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG701BRT-REEL7IC SWITCH SPST-NOX1 3OHM SOT23-6 |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 10pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
