联锁开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44518-0070INTERLOCK MAGNETIC DPST |
0 | - |
|
- |
MF-STI | Bulk | Obsolete | Magnetic | DPST-NO/NC | 500mA (AC/DC) | 120VAC, 24VDC | 24VDC | - | Non-Contact | Cable Leads | Status Indicator | 9mm | 10mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE |
|
|
D40Z-1C2-SINTERLOCK MAGNETIC SPST |
0 | - |
|
数据表 |
D40Z | Bulk | Active | Magnetic | SPST-NO | 10mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -10°C ~ 65°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
GKCC1L7SAFETY LIMIT SWITCH-HEAVY DUTY |
0 | - |
|
数据表 |
GK | Bulk | Active | Non-Locking | DPST-NO/NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKCA6LXSAFETY LIMIT SWITCH-HEAVY DUTY |
0 | - |
|
数据表 |
GK | Bulk | Active | Non-Locking | DPST-NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKDA1L6SAFETY LIMIT SWITCH-HEAVY DUTY |
0 | - |
|
数据表 |
GK | Bulk | Active | Non-Locking | DPST-NO/NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|

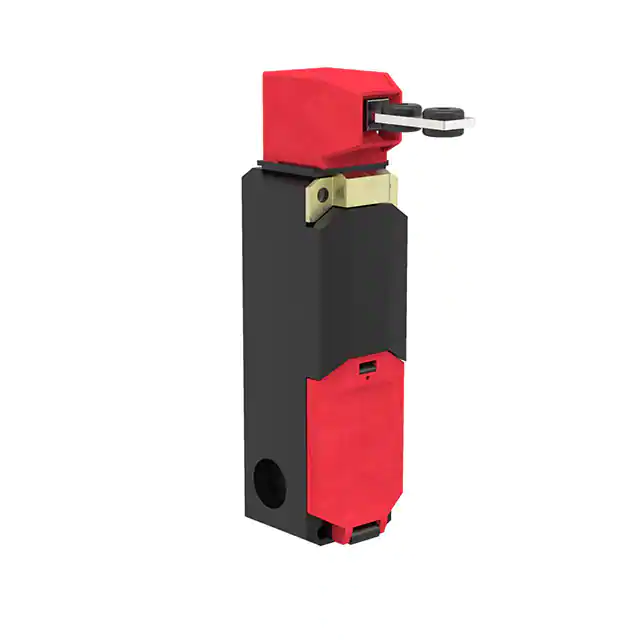

SI-LS42DMSIINTERLOCK SOLENOID RELEASE 3PST |
0 | - |
|
数据表 |
SI-LS42 | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
D4GL-1AFA-AINTERLOCK SOLENOID RELEASE DPST |
0 | - |
|
数据表 |
D4GL | Bulk | Obsolete | Solenoid Release | DPST-NO/NC (DB/DM) x 2 | 750mA (AC) | 240VAC | 24VDC | 102kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
D4GL-1BFA-AINTERLOCK SOLENOID RELEASE DPST |
0 | - |
|
数据表 |
D4GL | Bulk | Obsolete | Solenoid Release | DPST-NO/NC + DPST-NC | 750mA (AC) | 240VAC | 24VDC | 102kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
D4GL-1CFA-AINTERLOCK SOLENOID RELEASE DPST |
0 | - |
|
数据表 |
D4GL | Bulk | Obsolete | Solenoid Release | DPST-NO/NC + DPST-NC | 750mA (AC) | 240VAC | 24VDC | 102kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
D4GL-1CFG-AINTERLOCK SOLENOID LOCKING DPST |
0 | - |
|
数据表 |
D4GL | Bulk | Obsolete | Solenoid Locking | DPST-NO/NC + DPST-NC | 750mA (AC) | 240VAC | 24VDC | 102kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
D4GL-1DFA-AINTERLOCK SOLENOID RELEASE DPST |
0 | - |
|
数据表 |
D4GL | Bulk | Obsolete | Solenoid Release | DPST-NC x 2 | 750mA (AC) | 240VAC | 24VDC | 102kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
D4SL-N4EFG-DINTERLOCK SOLENOID LOCKING 3PST |
0 | - |
|
数据表 |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NO/NC | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|
|
XCSLE2525332INTERLOCK KEY LOCKING DPST |
0 | - |
|
数据表 |
XCSLE | Box | Active | Key Locking | DPST-NO/NC | 750mA (AC), 550mA (DC) | 240VAC, 24VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, TUV, UL |
|
|
XCSLE2525342INTERLOCK KEY LOCKING DPST |
0 | - |
|
数据表 |
XCSLE | Box | Active | Key Locking | DPST-NO/NC | 750mA (AC), 550mA (DC) | 240VAC, 24VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP66 - Dust Tight, Waterproof | CSA, UL |
|
|
6025062INTERLOCK SOLENOID RELEASE 3PST |
0 | - |
|
数据表 |
i14 Lock | Bulk | Active | Solenoid Release | 3PST-NC | 3A (AC), 2A (DC) | 240VAC, 24VDC | 20.4 ~ 26.4VDC | 102kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | CCC, CE, cULus |
|
|
HS1C-P44Z-GINTERLOCK SWITCH SAFETY PLUG TYP |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS1C-P44Z-RINTERLOCK SWITCH SAFETY PLUG TYP |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GKBA1L8-F11SAFETY LIMIT SWITCH-HEAVY DUTY |
0 | - |
|
数据表 |
GK | Bulk | Active | Non-Locking | DPST-NO/NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKBB14L8SAFETY LIMIT SWITCH-HEAVY DUTY |
0 | - |
|
数据表 |
GK | Bulk | Active | Non-Locking | 4PST-2NO/2NC (BBM) | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | PG13.5 | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKBA10N8SAFETY LIMIT SWITCH-HEAVY DUTY |
0 | - |
|
数据表 |
GK | Bulk | Active | Non-Locking | 4PST-NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
