钥匙锁开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 开关功能 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 钥匙可拆卸位置 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 面板开孔尺寸 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRK 286 B-2KEY SWITCH, ON-ON |
100 | - |
|
数据表 |
MRK | Box | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 286 B-1KEY SWITCH, ON-ON |
100 | - |
|
数据表 |
MRK | Box | Active | SPDT | 1 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 286 A-1KEY SWITCH, OFF-ON |
89 | - |
|
数据表 |
MRK | Box | Active | SPST | 1 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-1KEY SWITCH, OFF-ON |
100 | - |
|
数据表 |
MRK | Box | Active | SPST | 1 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-2KEY SWITCH, OFF-ON |
96 | - |
|
数据表 |
MRK | Box | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-AKEY SWITCH, OFF-MOM |
98 | - |
|
数据表 |
MRK | Box | Active | SPST-NO | 1 | Off-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-DAKEY SWITCH, ON-MOM |
100 | - |
|
数据表 |
MRK | Box | Active | SPST-NC | 1 | On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 2021 RKEY SWITCH, ON-ON, GOLD PLATED |
99 | - |
|
数据表 |
MRK | Box | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | Right | 90° | - | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
K1-101S1S1N2 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
17 | - |
|
数据表 |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
CKL12AFW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
5 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
K1-100S1S1N2 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
50 | - |
|
数据表 |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-101S1S1N1 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
50 | - |
|
数据表 |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|

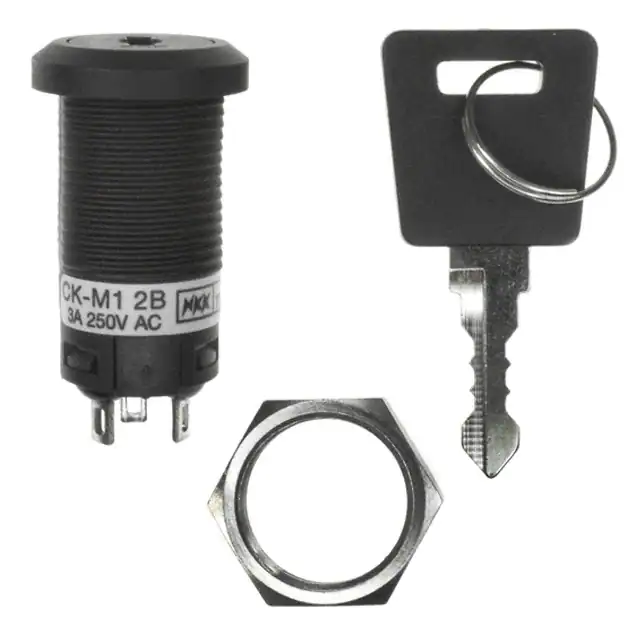

CKM12BFW01-002SWITCH KEYLOCK 2POS SPDT 3A 250V |
65 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-010SWITCH KEYLOCK 2POS SPDT 3A 250V |
19 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
11 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

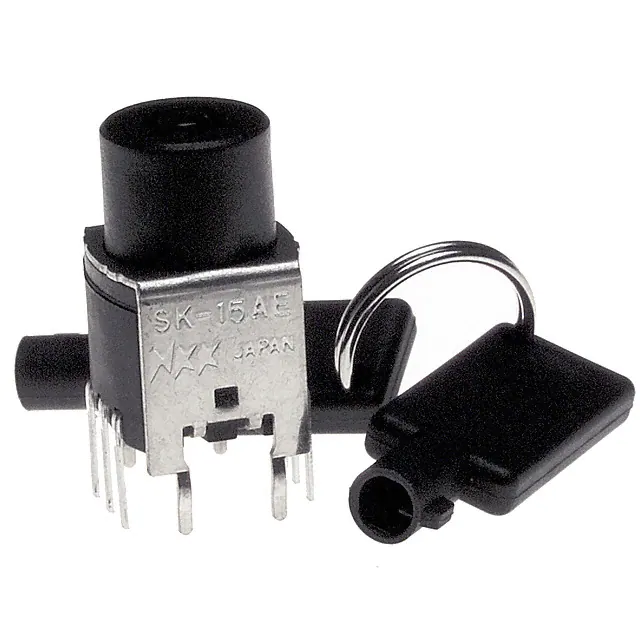

SK15AEG13SWITCH KEYLK 5POS SP5T 0.4VA 28V |
16 | - |
|
数据表 |
SK | Bulk | Active | SP5T | 5 | On-On-On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Tubular Key | All | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Antistatic, Process Sealed | -25°C ~ 70°C |
|
CKL12AFW01-003SWITCH KEYLOCK 2POS SPDT 3A 250V |
75 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

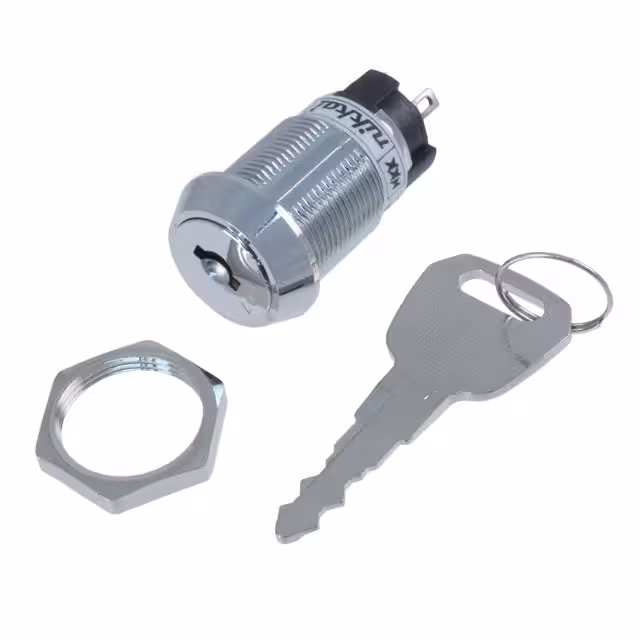

CKL12AFW01-007SWITCH KEYLOCK 2POS SPDT 3A 250V |
49 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

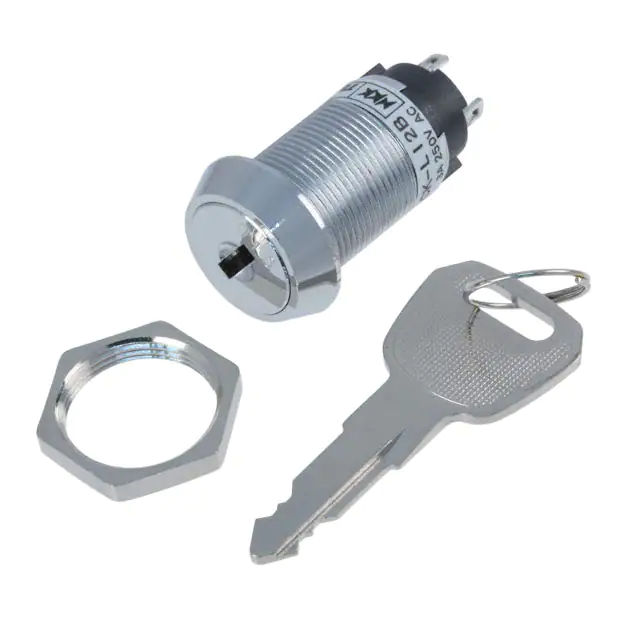

CKL12BFW01-016SWITCH KEYLOCK 2POS SPDT 3A 250V |
25 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12ATW01-037SWITCH KEYLOCK 2POS SPDT 3A 250V |
29 | - |
|
数据表 |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
