钥匙锁开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 开关功能 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 钥匙可拆卸位置 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 面板开孔尺寸 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW6K-2T1ASWITCH KEY 2POS SPDT 100MA 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6K-2T1BSWITCH KEY 2POS SPDT 100MA 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6K-2T1VBSWITCH KEY 2POS SPDT 100MA 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6K-2T5ASWITCH KEYLOCK 2POS SPDT 5A 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6K-2T5BSWITCH KEYLOCK 2POS SPDT 5A 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW7K-2T1ASWITCH KEY 2POS SPDT 100MA 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Square - 22.50mm² | - | -25°C ~ 60°C |
|
|
LBW7K-2T1BSWITCH KEY 2POS SPDT 100MA 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Square - 22.50mm² | - | -25°C ~ 60°C |
|
|
LBW7K-2T1VASWITCH KEY 2POS SPDT 100MA 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Square - 22.50mm² | - | -25°C ~ 60°C |
|
|
LBW7K-2T1VBSWITCH KEY 2POS SPDT 100MA 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Square - 22.50mm² | - | -25°C ~ 60°C |
|
|
LBW7K-2T5ASWITCH KEYLOCK 2POS SPDT 5A 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Square - 22.50mm² | - | -25°C ~ 60°C |
|
|
LBW7K-2T5BSWITCH KEYLOCK 2POS SPDT 5A 125V |
0 | - |
|
数据表 |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Square - 22.50mm² | - | -25°C ~ 60°C |
|
|
71L36-01-1-10S-FSWITCH KEY 10P SP10T 250MA 115V |
0 | - |
|
数据表 |
71L | Bulk | Active | SP10T | 10 | - | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
M-489-03SWITCH KEYLOCK 2POS 10A 12V |
0 | - |
|
- |
- | Bulk | Active | - | 2 | Off-Mom | Not Specified | 10A (DC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|

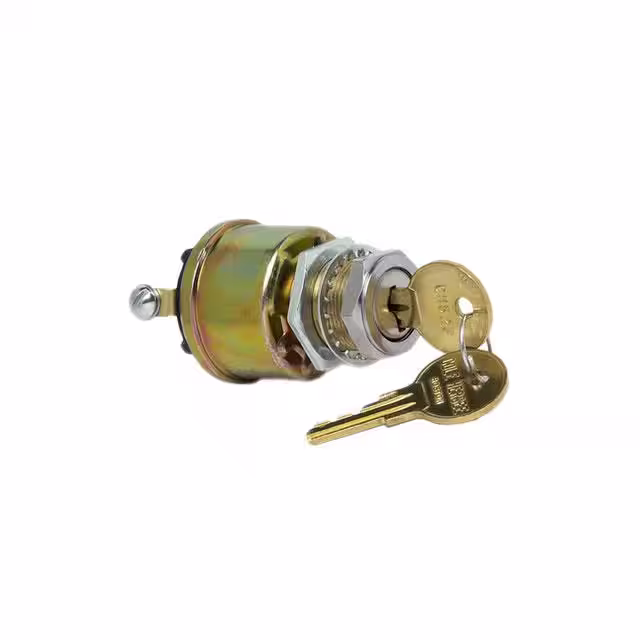

95532SWITCH KEYLOCK 2POS 5A 12V |
0 | - |
|
- |
95 | Bulk | Obsolete | - | 2 | Off-On | Not Specified | 5A (DC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
|
LA1K-3C2VHSWITCH KEY 3POS DPDT 100MA 125V |
0 | - |
|
- |
L6 | Bulk | Active | DPDT | 3 | On-Off-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left and Center | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-3C6BSWITCH KEYLOCK 3POS DPDT 3A 125V |
0 | - |
|
- |
L6 | Bulk | Active | DPDT | 3 | On-Off-On | Not Specified | 3A (AC), 2A (DC) | 125 V | 30 V | Flat Key | Right | 45° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-3C2VGSWITCH KEY 3POS DPDT 100MA 125V |
0 | - |
|
- |
L6 | Bulk | Active | DPDT | 3 | On-Off-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center and Right | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-31C2VDSWITCH KEY 3POS DPDT 100MA 125V |
0 | - |
|
- |
L6 | Bulk | Active | DPDT | 3 | On-Off-Mom | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left and Right | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-31C6DSWITCH KEYLOCK 3POS DPDT 3A 125V |
0 | - |
|
- |
L6 | Bulk | Active | DPDT | 3 | On-Off-Mom | Not Specified | 3A (AC), 2A (DC) | 125 V | 30 V | Flat Key | Left and Right | 45° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-3C2VASWITCH KEY 3POS DPDT 100MA 125V |
0 | - |
|
- |
L6 | Bulk | Active | DPDT | 3 | On-Off-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
