键盘开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZB6-430023SWITCH KEYPAD 6KEY ILLUM |
4 | - |
|
数据表 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Rear | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|

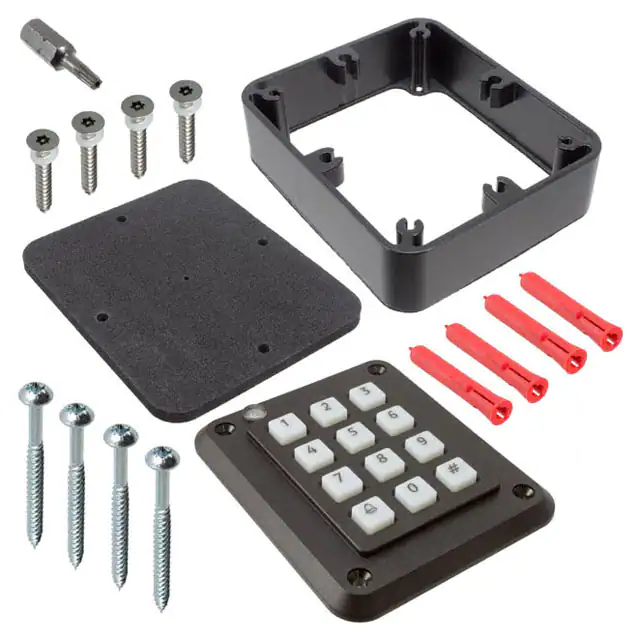

DE2KT103SWITCH KEYPAD 12KEY NON-ILLUM |
2 | - |
|
数据表 |
AXS | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Non-Standard (Controller Included) | Telephone Format | Gray | White | Panel Mount, Front | Screw Terminal | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|
09-0075.3142SWITCH KEYPAD 6KEY 0.03A 32V |
5 | - |
|
数据表 |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0075.3132SWITCH KEYPAD 6KEY 0.03A 32V |
4 | - |
|
数据表 |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
3K008-G2-4RC3AWSWITCH KEYPAD 8KEY ILLUM |
25 | - |
|
数据表 |
3K | Bulk | Active | Snap Dome | 8 | 2 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K012-G2-4RC3AWSWITCH KEYPAD 12KEY ILLUM |
25 | - |
|
数据表 |
3K | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 46.99mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K206-G2-2RC3AWSWITCH KEYPAD 6KEY ILLUM |
24 | - |
|
数据表 |
3K | Bulk | Active | Snap Dome | 6 | 3 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K006-G2-2RC3AWSWITCH KEYPAD 6KEY ILLUM |
22 | - |
|
数据表 |
3K | Bulk | Active | Snap Dome | 6 | 3 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
09-0025.1112SWITCH KEYPAD 6KEY 0.03A 32V |
2 | - |
|
数据表 |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0015.1112SWITCH KEYPAD 6KEY 0.03A 32V |
2 | - |
|
数据表 |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
3K208-G2-4RC3AGSWITCH KEYPAD 8KEY ILLUM |
4 | - |
|
数据表 |
3K | Bulk | Active | Snap Dome | 8 | 2 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
09-0A72.3142SWITCH KEYPAD 6KEY 0.03A 32V |
2 | - |
|
数据表 |
09 | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0A72.3132SWITCH KEYPAD 6KEY 0.03A 32V |
2 | - |
|
数据表 |
09 | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0A12.1111SWITCH KEYPAD 6KEY 0.03A 32V |
6 | - |
|
数据表 |
09 | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0025.1111SWITCH KEYPAD 6KEY 0.03A 32V |
20 | - |
|
数据表 |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
82-150-17SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
14 | - |
|
数据表 |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Illuminated - Light Source Not Included | Fixed | Polymer | Independent Switches (SPST) | No Legend | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
96AB2-152-RSSWITCH KEYPAD 12KEY 0.005A 12V |
0 | - |
|
数据表 |
96 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | White | Black | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 50.80mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | Shielded |
|
|
82-301-61SWITCH KEYPAD 3KEY 0.1A 5V |
96 | - |
|
数据表 |
82 | Bulk | Active | Keyswitch | 3 | 3 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
87HC3-201SWITCH KEYPAD 6KEY 0.01A 24V |
0 | - |
|
数据表 |
87 | Bulk | Active | Snap Dome | 6 | 6 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
|
82-601-85SWITCH KEYPAD 6KEY 0.1A 5V |
0 | - |
|
数据表 |
82 | Bulk | Active | Keyswitch | 6 | 3 x 2 | Non-Illuminated | Fixed | Polymer | Independent Switches (SPST) | Telephone Format | White | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
