LED COB、引擎、模块、灯条
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

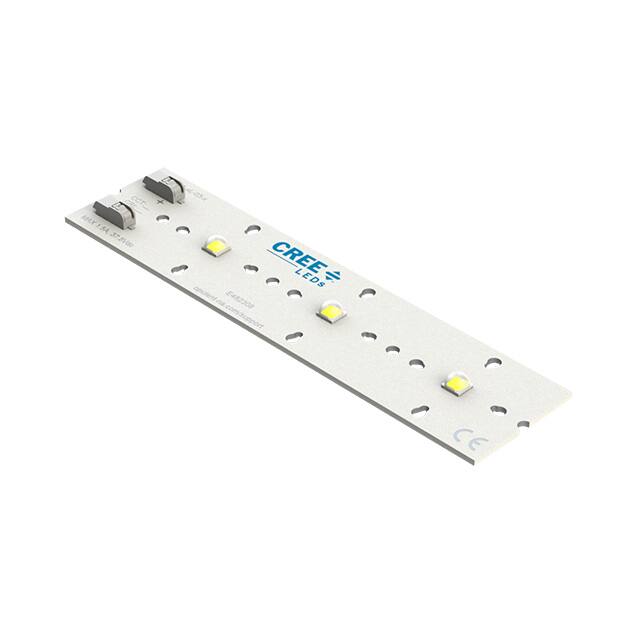

XHP50A-0L-03-0D0BJ450ELED MOD XHP50A WH LNR STRP 5000K |
0 | - |
|
数据表 |
XHP50A | Tray | Not For New Designs | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm (Typ) | 700mA | 85°C | 34.5V | 139 lm/W | 1.5A | 70 | - | - | 132.08mm L x 33.02mm W | - | - | Domed |
|
|
XHP50A-0L-03-0D0HH440GLED MOD XHP50 LNR LGT STRIP |
0 | - |
|
数据表 |
XHP50 | Tray | Not For New Designs | LED Module | - | - | - | Linear Light Strip | - | 700mA | 85°C | - | - | - | 80 | - | - | - | - | - | Domed |
|
|
XHP50A-0L-03-0D0HJ20E2LED MOD XHP50 LNR LGT STRIP |
0 | - |
|
数据表 |
XHP50 | Tray | Not For New Designs | LED Module | - | - | - | Linear Light Strip | - | 700mA | 85°C | - | - | - | 80 | - | - | - | - | - | Domed |
|
|
XHP50A-0L-03-0D0HJ250GLED MOD XHP50 LNR LGT STRIP |
0 | - |
|
数据表 |
XHP50 | Tray | Not For New Designs | LED Module | - | - | - | Linear Light Strip | - | 700mA | 85°C | - | - | - | 80 | - | - | - | - | - | Domed |
|
BXRC-65E10K1-D-84VERO 29D COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 11579lm (Typ) | 1.7A | 25°C | 36.4V | 187 lm/W | 5.5A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-30G10K0-B-83VERO 29B WARM WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 10563lm (Typ) | 1.4A | 25°C | 50.2V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-50G10K1-D-84VERO 29D COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Round | 9270lm (Typ) | 1.7A | 85°C | 35.7V | 153 lm/W | 5.5A | 90 | 120° | Dimming | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27E10K0-D-83VERO 29D WARM WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 2700K 2-Step MacAdam Ellipse | - | Round | 10771lm (Typ) | 1.3A | 25°C | 36.4V | 127 lm/W | 4.2A | 70 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-57E10K1-B-84VERO 29B COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 13012lm (Typ) | 1.4A | 25°C | 50.2V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-50C10K1-B-84VERO 29B COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 14084lm (Typ) | 1.4A | 25°C | 50.2V | 200 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27G1KH0-D-83VERO 29D WARM WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 9270lm (Typ) | 1.7A | 25°C | 36.4V | 150 lm/W | 5.5A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-57C10K1-D-84VERO 29D COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 12050lm (Typ) | 1.7A | 25°C | 36.4V | 195 lm/W | 5.5A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-57C10K1-B-84VERO 29B COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 13701lm (Typ) | 1.4A | 25°C | 50.2V | 195 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27G1KH0-B-83VERO 29B WARM WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 10540lm (Typ) | 1.4A | 25°C | 50.2V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-40G10K0-B-83VERO 29B NEUTRAL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 11175lm (Typ) | 1.4A | 25°C | 50.2V | 159 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-65C10K1-D-84VERO 29D COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 12050lm (Typ) | 1.7A | 25°C | 36.4V | 195 lm/W | 5.5A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-35G10K0-D-83VERO 29D WARM WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 2700K 2-Step MacAdam Ellipse | - | Round | 9626lm (Typ) | 1.3A | 25°C | 36.4V | 127 lm/W | 4.2A | 70 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-30C10K1-B-84VERO 29B WARM WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 13624lm (Typ) | 1.4A | 25°C | 50.2V | 194 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-50E10K1-D-84VERO 29D COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Round | 10724lm (Typ) | 1.7A | 85°C | 35.7V | 177 lm/W | 5.5A | 80 | 120° | Dimming | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-65C10K1-B-84VERO 29B COOL WHITE LED ARRAY |
0 | - |
|
数据表 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 13701lm (Typ) | 1.4A | 25°C | 50.2V | 195 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
