LED 发射器 - 红外线、紫外线、可见光
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 电流 - 直流正向（If）（最大值） | 辐射强度 (Ie) 最小值 @ If | 波长 | 电压 - 正向 (Vf)（典型值） | 视角 | 方向 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLMU3511-365-130UV SMD LED WITH SILICONE LENS |
4,941 | - |
|
数据表 |
- | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 700mA | 330mW/sr @ 700mA (Typ) | 367nm (360nm ~ 370nm) | 3.6V | 130° | Top View | -40°C ~ 85°C (TA) | - | - | Surface Mount |
|
XBT-3535-UV-A130H-M-BC270-00XBT-3535-UV SURFACE MOUNT UVC L |
250 | - |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
SBT-10X-UV-A120-AH390-22SBT-10X-UV SURFACE MOUNT LED |
196 | - |
|
数据表 |
SBT-10X-UV | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 4A | - | 395nm (390nm ~ 400nm) | 3.6V | 120° | Top View | 125°C | - | - | Surface Mount |
|
|
SBT-10X-UV-A120-AH380-22SBT-10X-UV SURFACE MOUNT LED |
179 | - |
|
数据表 |
SBT-10X-UV | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 4A | - | 385nm (380nm ~ 390nm) | 3.4V | 120° | Top View | 125°C | - | - | Surface Mount |
|
15335337AA350WL-SUMW SMT ULTRAVIOLET CERAMIC |
457 | - |
|
数据表 |
WL-SUMW | 2-SMD, No Lead | Tape & Reel (TR) | Active | Ultraviolet (UV) | 700mA | - | 365nm | 3.8V | 130° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
BELICE SD-0B-250MWBELICE SD-0B-250MW |
1,396 | - |
|
数据表 |
- | 2-SMD, No Lead | Tray | Active | Infrared (IR) | 7A | - | 850nm | 1.9V | 51°, 71° | Top View | 0°C ~ 80°C | - | - | Surface Mount |
|
|
XBT-3535-UV-A130H-M-CB-300-00SURFACE MOUNT 308 NM UVB LED |
217 | - |
|
数据表 |
XBT-3535-UV Horticulture | 2-SMD, No Lead | Tape & Reel (TR) | Active | Ultraviolet (UV) | 225mA | - | 308nm (300nm ~ 315nm) | 5.6V | 130° | Top View | 85°C | - | - | Surface Mount |
|
|
UVC3535CZ0112-FUC7085040X70350-1TEMITTER UVC SMD |
3,000 | - |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
XBT-3535-UV-A130H-DB280-00GEN 2 XBT-3535-285 NM SURFACE MO |
236 | - |
|
- |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Ultraviolet (UV) | 800mA | - | 285nm (280nm ~ 290nm) | 6.2V | 130° | Top View | 100°C (TJ) | - | - | Surface Mount |
|
|
SA1037-5M3STEADY STATE EMITTER |
97 | - |
|
数据表 |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
SVF350-8M3STANDARD PULSABLE EMITTER |
91 | - |
|
数据表 |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
HIS550R-ANICR FILAMENT BASED THERMAL INFR |
72 | - |
|
数据表 |
HISbasic | TO-5 Variant, 2 Leads, Lens Top Metal Can | Box | Active | Infrared (IR) | 175mA | - | 4µm (2µm ~ 6µm) | 4V (Max) | - | Side View | - | - | - | Through Hole |
|
|
ULR1B265NM UV-C LED REACTOR FOR RUNNI |
95 | - |
|
数据表 |
- | Module | Box | Active | Ultraviolet (UV) | - | - | 265nm | - | - | Top View | - | - | - | - |
|
SE03-LP2835S-1460100mA MINIMUM RADIATION INTNSITY |
0 | - |
|
数据表 |
- | 2-SMD, No Lead | Active | Infrared (IR) | 100mA | 35mW/sr @ 100mA | 850nm | 1.3V ~ 1.7V | 60° | Top View | -30°C ~ 85°C | - | - | Surface Mount | |
|
QED233A4A0EMITTER INFRARED 940NM 100MA RAD |
6,921 | - |
|
数据表 |
- | Radial | Bulk | Obsolete | Infrared (IR) | 100mA | 10mW/sr | 940nm | 1.5V (Max) | 40° | Top View | -40°C ~ 100°C | - | - | Through Hole |
|

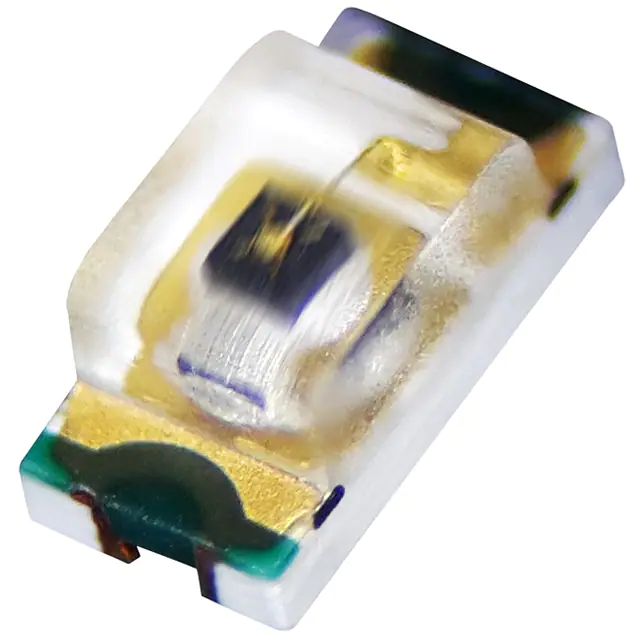

B13V1IR--20C000114U19301.6 (L)X 0. 8 (W)X 0. 66 (H) MM |
16,238 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 65mA | 0.4mW/sr @ 20mA | 940nm | 1.2V | 140° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|

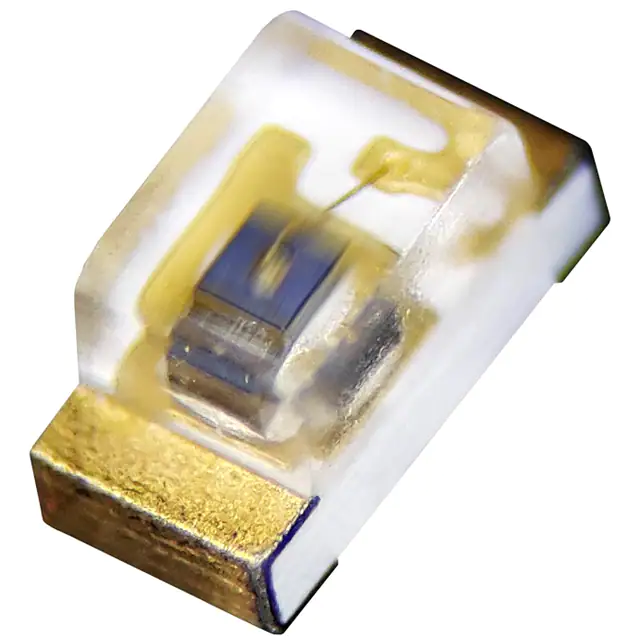

B19H1IR--20C000114U19301.6 (L)X 0. 8 (W)X 0. 8 8 (H) MM |
10,605 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 65mA | 0.4mW/sr @ 20mA | 940nm | 1.2V | 140° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|

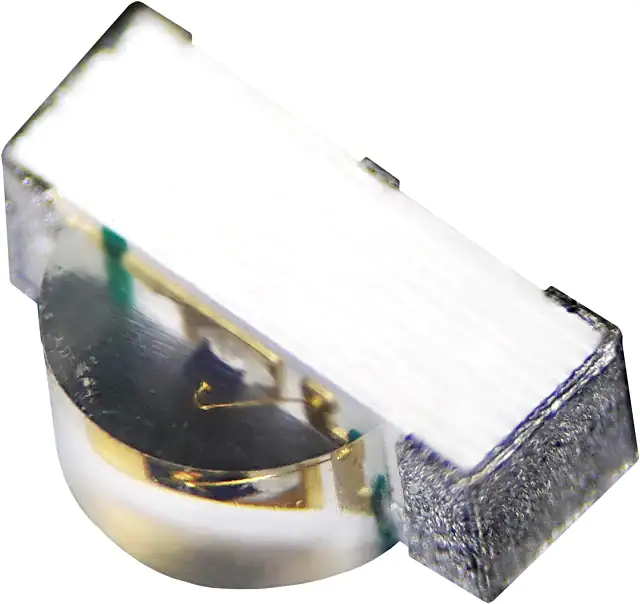

B2151IR-20C000133U19303.2(L)X2.55 (W)X 1.6 (H) MM IR |
14,991 | - |
|
数据表 |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Infrared (IR) | 65mA | 0.5mW/sr @ 20mA | 940nm | 1.5V | 140° | Top View | -40°C ~ 85°C | - | - | Surface Mount, Right Angle |
|
APA3010F3CEMITTER IR 940NM 50MA SMD |
2,000 | - |
|
数据表 |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Infrared (IR) | 50mA | 0.4mW/sr @ 20mA | 940nm | 1.2V | 120° | Side View | -40°C ~ 85°C (TA) | - | - | Surface Mount, Right Angle |
|

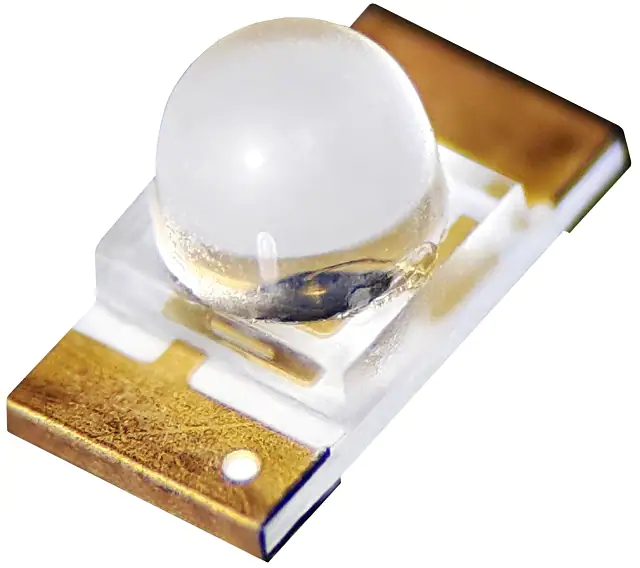

B15W1IR--20C000112U19303.2(L)X1.6(W)X1.85(H) MM IR |
2,817 | - |
|
数据表 |
- | 1206 (3216 Metric) | Cut Tape (CT) | Active | Infrared (IR) | 100mA | 2mW/sr @ 20mA | 940nm | 1.2V | 30° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
