限位开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007C62CSWITCH SNAP ACTION DPDT 6A 120V |
2 | - |
|
数据表 |
9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007AW16SWITCH LIMIT SPDT 15A 120V |
5 | - |
|
数据表 |
9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
D4F-120-5RSWITCH SNAP ACTION DPST 15A 120V |
4 | - |
|
数据表 |
D4F | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 510gf | 51gf | - | 12° | - | 40° | -30°C ~ 70°C |
|
3SE03AR16PSWITCH LIMIT SIDE ROTARY |
15 | - |
|
- |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
|
L525WDL2M58SWITCH LIMIT DPST 20A 120V |
2 | - |
|
数据表 |
- | Box | Active | DPST-NC (DB) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
D4F-102-3RSWITCH SNAP ACTION DPST 15A 120V |
2 | - |
|
数据表 |
D4F | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
LSYKB1A-8CSWITCH SNAP ACTION SPDT 10A 120V |
8 | - |
|
数据表 |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Plug In | - | - | 198gf | - | - | 2.000" (50.8mm) | - | - | -29°C ~ 121°C |
|
|
9007C54B2P10Y19021SWITCH SNAP ACTION SPDT 10A 600V |
3 | - |
|
数据表 |
9007C | Box | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
9007AW36SWITCH LIMIT SPDT 15A 120V |
2 | - |
|
数据表 |
9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
D5A-3200SWITCH SNP ACT SPST-NC 0.01A 24V |
17 | - |
|
数据表 |
D5A | Bulk | Last Time Buy | SPST-NC | On-Mom | 10mA (AC/DC) | 24 V | 12 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 50gf | - | 0.256" (6.5mm) | - | 0.0002" (0.005mm) | 0.060" (1.5mm) | -20°C ~ 75°C |
|
D4A-4516NSWITCH SNAP ACTION DPDT 5A 125V |
4 | - |
|
数据表 |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 15° | - | - | -20°C ~ 100°C |
|
D4C-3032-DK1EJ03SWITCH SNAP ACTION SPDT 1A 30V |
2 | - |
|
数据表 |
D4C | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 0.3m, Status Indicator | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

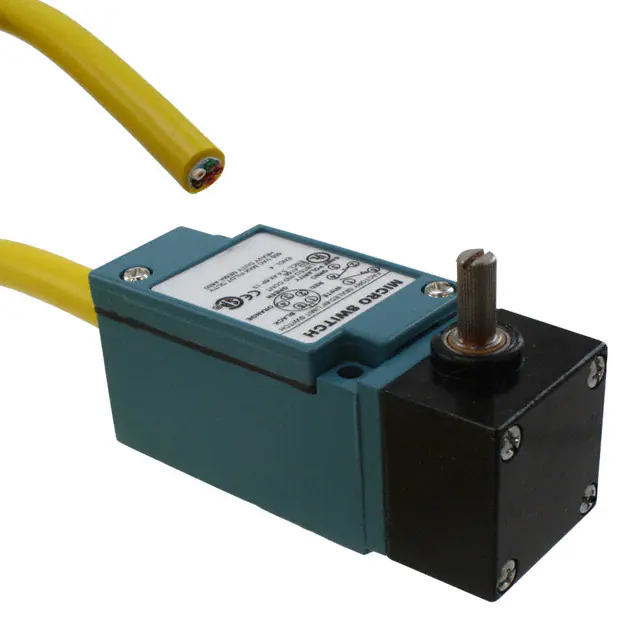

LSYAC3KP-FPSWITCH SNAP ACTION SPDT 10A 120V |
11 | - |
|
数据表 |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 105°C |
|
OP-QSWITCH SNAP ACTION SPDT 15A 125V |
2 | - |
|
数据表 |
OP | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Screw Terminal | - | - | 1360gf | - | 1.859" (47.2mm) | 0.078" (2.0mm) | 0.004" (0.1mm) | 0.188" (4.78mm) | - |
|
|
9007C54CS17SWITCH LIMIT SPDT 10A 600V |
6 | - |
|
数据表 |
9007C | Box | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | Wire Leads | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
XCRF17H2SWITCH LIMIT 4PST 3A 240V |
5 | - |
|
数据表 |
XCR | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKMR54D1SWITCH LIMIT 4PST-NC 3A 240V |
2 | - |
|
数据表 |
XCKM | Box | Active | 4PST-NC | On-Mom | 3A (AC), 550mA (DC) | 240 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 70°C |
|

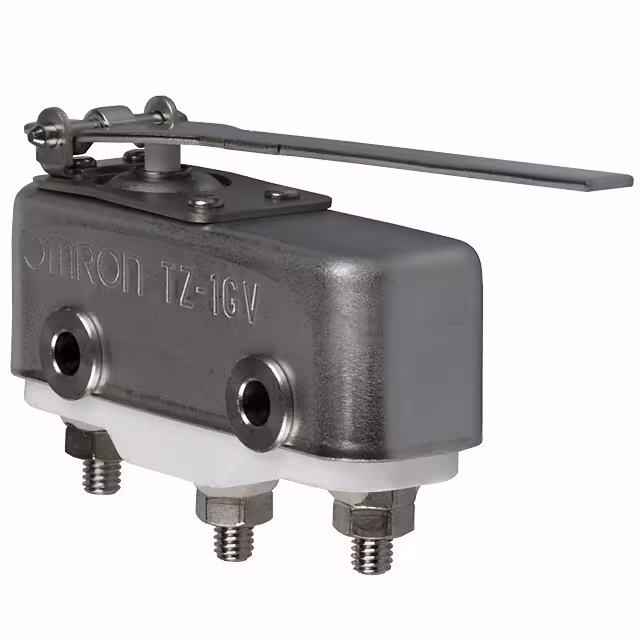

TZ-1GVSWITCH SNAP ACTION SPDT 1A 125V |
8 | - |
|
数据表 |
TZ | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 100gf | 14gf | 0.710" (18.0mm) | 0.138" (3.5mm) | 0.050" (1.3mm) | 0.180" (4.6mm) | -65°C ~ 400°C |
|
EXH-AR3SWITCH SNAP ACTION SPDT 1A 125V |
18 | - |
|
数据表 |
EX | Bulk | Active | SPDT | On-Mom | 1A (AC), 25A (DC) | 125 V | 28 V | Side Rotary, Roller | Chassis Mount | Wire Leads | - | Explosion Proof | 227gf | 113gf | - | 0.219" (5.6mm) | 0.025" (0.6mm) | 25° | -40°C ~ 71°C |
|
|
VB-6211SWITCH SNAP ACT SPDTX6 10A 125V |
2 | - |
|
数据表 |
VB | Bulk | Active | SPDT x 6 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.260" (32.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
