限位开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DM3CQF1005L03SWITCH LIMIT SPDT 3A 125V |
911 | - |
|
数据表 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.508" (12.9mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
|
DM3CQF1005L04SWITCH LIMIT SPDT 3A 125V |
896 | - |
|
数据表 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.354" (9.0mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
|
DM3CQF1004L01SWITCH LIMIT SPDT 3A 125V |
841 | - |
|
数据表 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 35gf | 15gf | 0.281" (7.15mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
|
DM3CQF1004L03SWITCH LIMIT SPDT 3A 125V |
757 | - |
|
数据表 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.508" (12.9mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
|
DM3CQF1004L04SWITCH LIMIT SPDT 3A 125V |
200 | - |
|
数据表 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.354" (9.0mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|

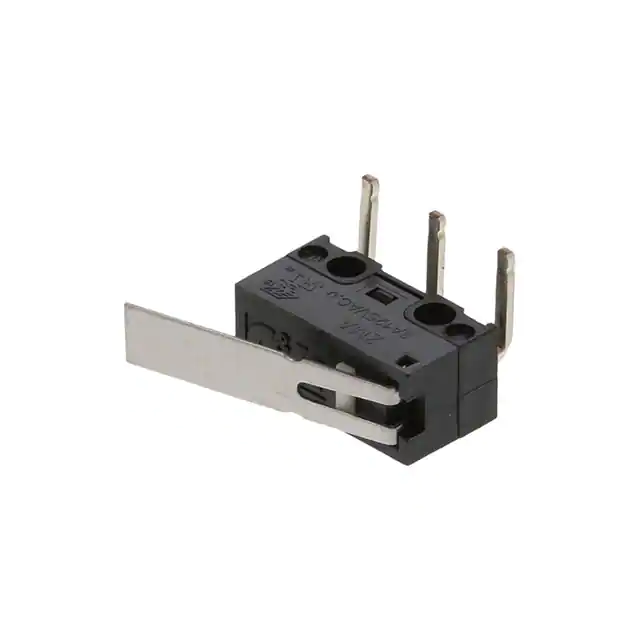

ZMA00A080L04LCSWITCH SNAP ACT SPDT 100MA 125V |
420 | - |
|
数据表 |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
ESE-18L61BSWITCH DETECTOR SPST-NC 0.01A 5V |
10,004 | - |
|
数据表 |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18R61BSWITCH DETECTOR SPST-NC 0.01A 5V |
5,014 | - |
|
数据表 |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

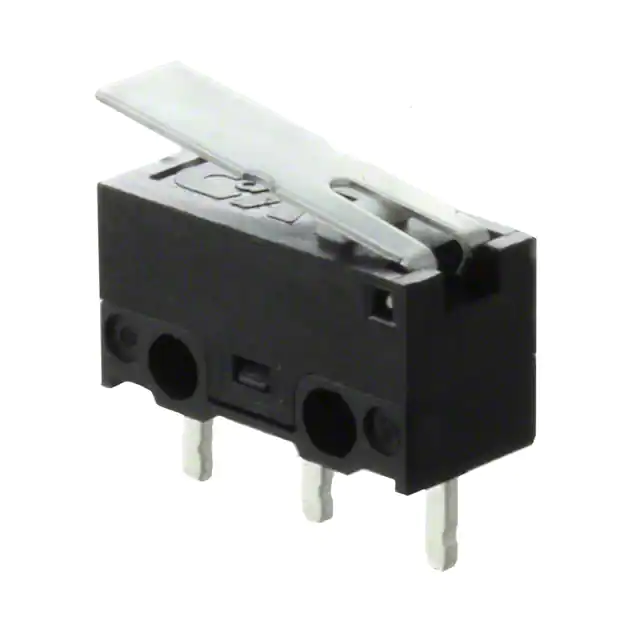

ZMA00A080L04PCSWITCH SNAP ACT SPDT 100MA 125V |
1,536 | - |
|
数据表 |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole | PC Pin | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
JJCHLUJ100NCNMRTRSWITCH DETECT SPST-NC 0.001A 5V |
681 | - |
|
数据表 |
JJC | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 35gf | - | 0.120" (3.05mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|
UP01DTANLA04SWITCH SNAP ACT SPDT 0.1A 125V |
28,341 | - |
|
数据表 |
UP01 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 80°C |
|
JJBV0UG335NONPRTRSWITCH DETECTOR SPST-NO 0.1A 5V |
842 | - |
|
数据表 |
JJB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | 0.120" (3.05mm) | 0.012" (0.3mm) | - | - | -15°C ~ 70°C |
|
D2FS-F-N-ASWITCH SNAP ACT SPST-NO 0.1A 6V |
167 | - |
|
数据表 |
D2FS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 6 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 87gf | 5.099gf | 0.276" (7.0mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -20°C ~ 70°C |
|
SAJ101XBL0N74SDTPTQSWITCH SNAP ACTION SPDT 0.1A 30V |
851 | - |
|
数据表 |
SAJ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 26gf | 2.000gf | 0.378" (9.6mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|

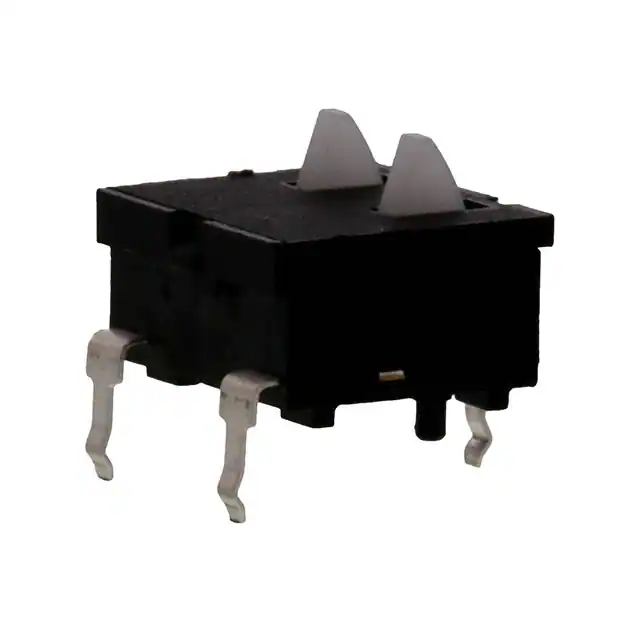

JJPH0US830NOPPRLOSWITCH DETECTOR DPST-NO 0.1A 5V |
1,499 | - |
|
数据表 |
JJP | Tray | Active | DPST-NO | Off-Mom | 100mA (DC) | - | 5 V | Angled Toggle (Detector) | Panel Mount, Snap-In | PC Pin | - | - | 50gf | - | 0.307" (7.8mm) | 0.020" (0.5mm) | - | - | -10°C ~ 60°C |
|

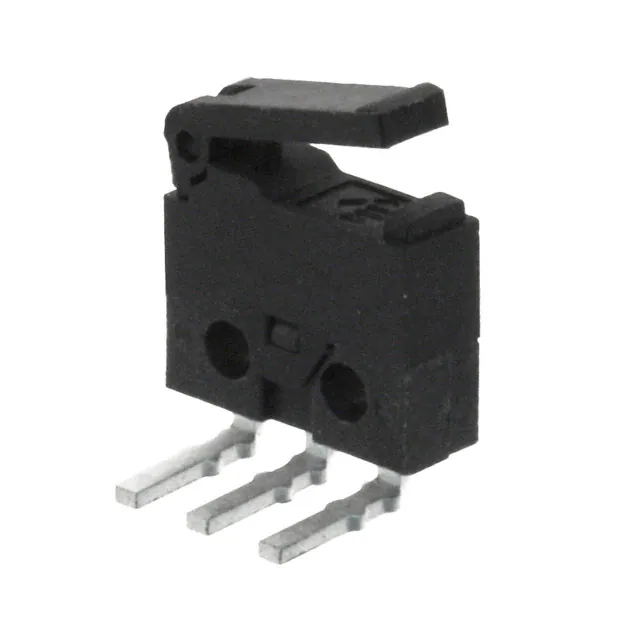

TS0101F020V3SWITCH SNAP ACTION SPDT 0.3A 6V |
657 | - |
|
数据表 |
TS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 6 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | - | 0.264" (6.7mm) | 0.071" (1.8mm) | - | - | -25°C ~ 85°C |
|

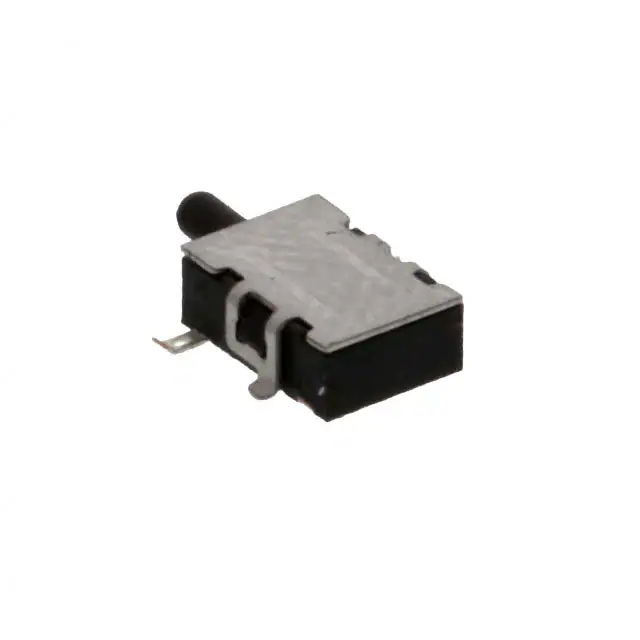

JJMH0UG200NOPMRTRSWITCH DETECTOR SPST-NO 0.1A 12V |
2,840 | - |
|
数据表 |
JJM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 70gf | - | 0.134" (3.4mm) | 0.014" (0.35mm) | - | - | -10°C ~ 60°C |
|
SS0750300F130P1ASWITCH SNAP ACTION SPDT 3A 125V |
1,339 | - |
|
数据表 |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 130gf | 60gf | 0.276" (7.0mm) | 0.014" (0.35mm) | - | - | -25°C ~ 75°C |
|
JJMH0UG200NCNMRTRSWITCH DETECTOR SPST-NC 0.1A 12V |
1,318 | - |
|
数据表 |
JJM | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 70gf | - | 0.085" (2.16mm) | 0.014" (0.35mm) | - | - | -10°C ~ 60°C |
|
|
V19T16-CZ300B05SWITCH SNAP ACTION SPDT 16A 125V |
110 | - |
|
数据表 |
V19 | Box | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 340gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.035" (0.9mm) | 0.031" (0.79mm) | -25°C ~ 125°C |
