门电路和反向器 - 多功能、可配置
门电路和反向器 - 多功能,可配置
多功能可配置门电路和反向器是用于实现数字逻辑运算,信号反相,逻辑组合,接口控制和电路功能配置的基础逻辑 IC,适合需要灵活逻辑设计和小型化电路实现的应用场景.常见类型包括可配置逻辑门,多功能逻辑门,反向器,施密特触发输入逻辑器件,单门逻辑器件和多通道逻辑芯片等,广泛应用于工业控制,通信设备,汽车电子,消费电子,服务器,嵌入式系统和智能硬件中.
宝利科技作为专业电子元器件分销商,可为客户供应行业主流厂商的多系列多功能可配置门电路和反向器产品,包括德州仪器(Texas Instruments),安世半导体(Nexperia),达尔科技(Diodes Incorporated),安森美(onsemi),恩智浦(NXP),意法半导体(STMicroelectronics),东芝(Toshiba),瑞萨(Renesas),微芯科技(Microchip)等品牌.您可在下方产品列表中查询所需门电路和反向器型号的库存,价格,封装规格,品牌,参数及 PDF 规格书等相关资料,并提交 BOM 或型号清单进行批量询价.
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 逻辑类型 | 电路数量 | 输入数量 | 施密特触发器输入 | 输出类型 | 电流 - 输出高、低 | 电压 - 电源 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74AXP1G97GNHIC GATE MULTI-FUNCTION X2SON6 |
0 | - |
|
数据表 |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 8mA, 8mA | 0.7V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|

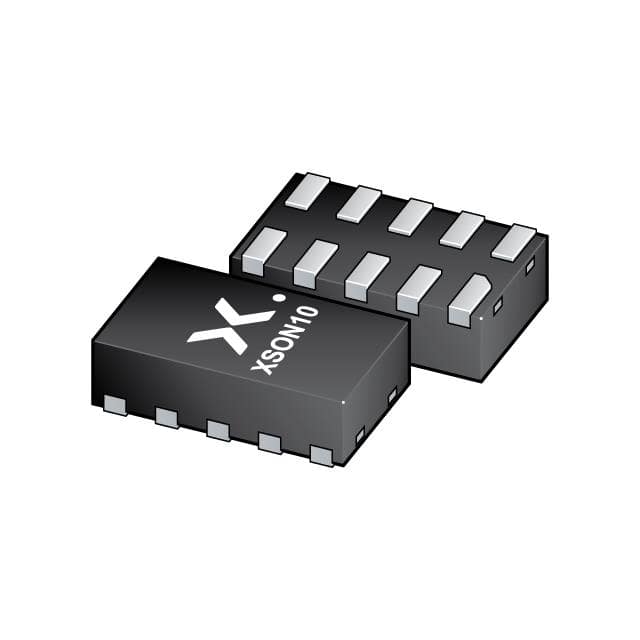

74AUP2G98GFXIC GATE |
88,684 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74LVC1G57YEPRIC CONFIG MULTI FUNCTION 6DSBGA |
0 | - |
|
数据表 |
74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-DSBGA |
|
|
SN74LVC1G58YEPRIC CONFIG MULTI FUNCTION 6DSBGA |
0 | - |
|
数据表 |
74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
|
SN74LVC1G97YZPRBCONFIGURABLE MULTIPLE-FNCTN GATE |
12,000 | - |
|
数据表 |
74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
74AXP1G57GN125MAJORITY LOGIC GATE, AXP SERIES |
5,000 | - |
|
数据表 |
* | - | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SN74LVC1G57YZARIC CONFIG MULTI FUNCTION 6DSBGA |
3,000 | - |
|
数据表 |
74LVC | 6-XFBGA, DSBGA | Bulk | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-DSBGA |
|
|
SN74LVC1G58YZARIC CONFIG MULTI FUNCTION 6DSBGA |
3,000 | - |
|
数据表 |
74LVC | 6-XFBGA, DSBGA | Bulk | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
74AUP1G885GM,125IC GATE DUAL FUNCTION 8-XQFN |
88,000 | - |
|
数据表 |
74AUP | 8-XFQFN Exposed Pad | Bulk | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
74F64PCAND-OR-INVERT GATE, F/FAST SERIE |
14,553 | - |
|
数据表 |
74F | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Differential | 1mA, 20mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
SN74LVC1G97DBVRG4IC CONFIG MULTI FUNCTION SOT23-6 |
5,090 | - |
|
数据表 |
74LVC | SOT-23-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
74AUP1G0832GS,132IC GATE AND/OR 3-IN 6X2SON |
0 | - |
|
数据表 |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
|
74AUP1G3208GS,132IC 3-IN OR-AND GATE LP 6XSON |
0 | - |
|
数据表 |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
74AUP1G3208GXZ74AUP1G3208GX/SOT1255/X2SON6 |
0 | - |
|
数据表 |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-X2SON (1.0x0.8) |
|
74AUP3G3404GMHIC DUAL BUFFER SGL INVERT 8XQFN |
0 | - |
|
数据表 |
74AUP | 8-XFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Buffer/Inverter | 3 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
74AUP3G3404GNXIC DUAL BUFFER SGL INVERT X2SON8 |
0 | - |
|
数据表 |
74AUP | 8-XFDFN | Tape & Reel (TR) | Active | Buffer/Inverter | 3 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
74AUP3G3404GSXIC DUAL BUFFER SGL INVERT X2SON8 |
0 | - |
|
数据表 |
74AUP | 8-XFDFN | Tape & Reel (TR) | Active | Buffer/Inverter | 3 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
NC7SP57L6XTINYLOGIC ULP UNIVERSAL CONFIGUR |
60,000 | - |
|
数据表 |
7SP | 6-UFDFN | Bulk | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 2.6mA, 2.6mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
MC74HC58FELDUAL AND-OR GATE |
8,000 | - |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
74AUP2G98GUXNEXPERIA 74AUP2G98GU - MAJORITY |
77,465 | - |
|
数据表 |
74AUP | 10-XFQFN | Bulk | Active | Configurable Multiple Function | 2 | 6 Input (3, 3) | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XQFN (1.4x1.8) |
