门电路和反向器 - 多功能、可配置
门电路和反向器 - 多功能,可配置
多功能可配置门电路和反向器是用于实现数字逻辑运算,信号反相,逻辑组合,接口控制和电路功能配置的基础逻辑 IC,适合需要灵活逻辑设计和小型化电路实现的应用场景.常见类型包括可配置逻辑门,多功能逻辑门,反向器,施密特触发输入逻辑器件,单门逻辑器件和多通道逻辑芯片等,广泛应用于工业控制,通信设备,汽车电子,消费电子,服务器,嵌入式系统和智能硬件中.
宝利科技作为专业电子元器件分销商,可为客户供应行业主流厂商的多系列多功能可配置门电路和反向器产品,包括德州仪器(Texas Instruments),安世半导体(Nexperia),达尔科技(Diodes Incorporated),安森美(onsemi),恩智浦(NXP),意法半导体(STMicroelectronics),东芝(Toshiba),瑞萨(Renesas),微芯科技(Microchip)等品牌.您可在下方产品列表中查询所需门电路和反向器型号的库存,价格,封装规格,品牌,参数及 PDF 规格书等相关资料,并提交 BOM 或型号清单进行批量询价.
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 逻辑类型 | 电路数量 | 输入数量 | 施密特触发器输入 | 输出类型 | 电流 - 输出高、低 | 电压 - 电源 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM38510/07401BCASN54S51 AND-OR-INVERT GATES |
190 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
100301W-QMLV100301 - OR/NOR GATE, 100K SERIE |
30 | - |
|
数据表 |
- | - | Bulk | Active | NOR/OR Gate | - | 15 Input (5, 5, 5) | - | - | - | 4.2V ~ 5.7V | - | - | - | - | - |
|
100304J-QMLV100304 - AND/NAND GATE, 100K SER |
97 | - |
|
数据表 |
- | - | Bulk | Active | AND/NAND Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Through Hole | - |
|
|
100307W-QMLV100307 - XOR/XNOR GATE, 100K SER |
201 | - |
|
数据表 |
- | - | Bulk | Active | XOR/XNOR Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Surface Mount | - |
|
|
100304W-QMLV100304 - AND/NAND GATE, 100K SER |
59 | - |
|
数据表 |
- | - | Bulk | Active | AND/NAND Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Through Hole | - |
|
|
100302J-QMLVOR/NOR GATE, 100K SERIES, 5-FUNC |
120 | - |
|
数据表 |
- | 24-DIP (0.400", 10.16mm) | Bulk | Active | NOR/OR Gate | - | 10 Input (2, 2, 2, 2, 2) | - | - | - | 4.2V ~ 5.7V | - | - | - | Through Hole | - |
|
|
100302W-QMLV100302 - OR/NOR GATE, 100K SERIE |
63 | - |
|
数据表 |
- | - | Bulk | Active | NOR/OR Gate | - | 10 Input (2, 2, 2, 2, 2) | - | - | - | -4.2V ~ -5.7V | - | - | - | Surface Mount | - |
|
ASNT5160-KMC50GB BROADBAND AND OR LOGIC GATE |
95 | - |
|
数据表 |
- | 24-CFlatPack | Bulk | Active | AND/OR Gate | 1 | 4 Input (2, 2) | No | Differential | - | 3.1V ~ 3.5V | -40°C ~ 125°C | - | - | Surface Mount | 24-CQFP (8x8) |
|
HMC745LC3IC GATE XOR/XNOR 13DBPS 16CQFN |
4 | - |
|
数据表 |
- | 16-VFCQFN Exposed Pad | Strip | Active | XOR/XNOR Gate | 1 | 4 | No | Differential, Single-Ended | - | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-CSMT (3x3) |
|
CD4068BEIC NAND/AND GATE 8-IN 14-DIP |
853 | - |
|
数据表 |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
74LVC1G58GM,115IC CONFIG MULTI-FUNC GATE 6-XSON |
571 | - |
|
数据表 |
74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74AUP1G58GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
213 | - |
|
数据表 |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
74AUP1T58GW,125IC TRANSLATOR UNIDIR 6TSSOP |
407 | - |
|
数据表 |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | - | 1 | - | - | Single-Ended | - | - | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|

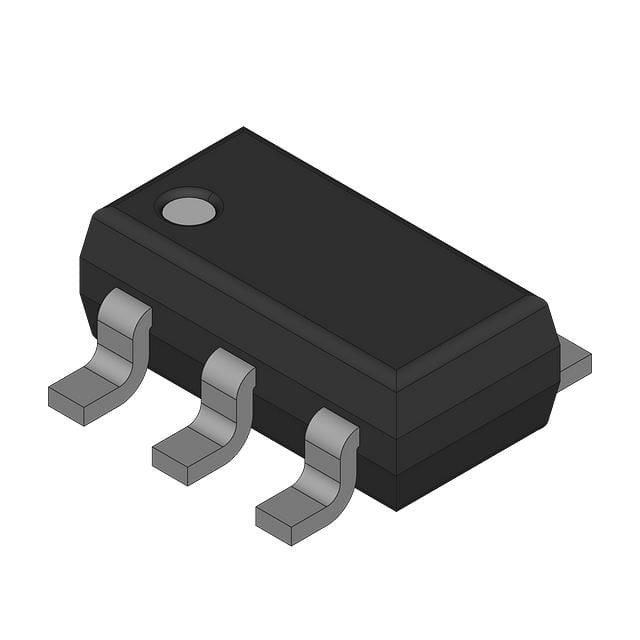

74LVC1G98GV,125IC CONFIG MULTI FUNC GATE 6TSOP |
369 | - |
|
数据表 |
74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
CD4048BPWIC 8IN GATE EXPND MULTI 16TSSOP |
550 | - |
|
数据表 |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
74AUP2G3404GN,125IC BUFFER/INVERTER SGL X2SON6 |
225 | - |
|
数据表 |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Buffer/Inverter | 2 | 2 Input (1, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
SY55851AUKGIC GATE UNIV 3GHZ 50 OHM 10MSOP |
48 | - |
|
数据表 |
SY55 | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 10-MSOP |
|
MC10EP08DTGIC GATE XOR/XNOR ECL 2INP 8TSSOP |
37 | - |
|
数据表 |
10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
MC10EP05DGIC GATE AND/NAND ECL 2INP 8SOIC |
61 | - |
|
数据表 |
10EP | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
74AUP1G57GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
699 | - |
|
数据表 |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
