门电路和反向器 - 多功能、可配置
门电路和反向器 - 多功能,可配置
多功能可配置门电路和反向器是用于实现数字逻辑运算,信号反相,逻辑组合,接口控制和电路功能配置的基础逻辑 IC,适合需要灵活逻辑设计和小型化电路实现的应用场景.常见类型包括可配置逻辑门,多功能逻辑门,反向器,施密特触发输入逻辑器件,单门逻辑器件和多通道逻辑芯片等,广泛应用于工业控制,通信设备,汽车电子,消费电子,服务器,嵌入式系统和智能硬件中.
宝利科技作为专业电子元器件分销商,可为客户供应行业主流厂商的多系列多功能可配置门电路和反向器产品,包括德州仪器(Texas Instruments),安世半导体(Nexperia),达尔科技(Diodes Incorporated),安森美(onsemi),恩智浦(NXP),意法半导体(STMicroelectronics),东芝(Toshiba),瑞萨(Renesas),微芯科技(Microchip)等品牌.您可在下方产品列表中查询所需门电路和反向器型号的库存,价格,封装规格,品牌,参数及 PDF 规格书等相关资料,并提交 BOM 或型号清单进行批量询价.
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 逻辑类型 | 电路数量 | 输入数量 | 施密特触发器输入 | 输出类型 | 电流 - 输出高、低 | 电压 - 电源 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC1G99GM,125IC CONFIG MULTI-FUNC GATE 8-XQFN |
0 | - |
|
数据表 |
74LVC | 8-XFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
74AUP2G98GFXIC PROG GATE W/SCHMITT 10SON |
0 | - |
|
数据表 |
74AUP | 10-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XSON (1.7x1) |
|
74LVC1G99GN,115IC GATE CONFIG MULTI-FUNC 8XSON |
0 | - |
|
数据表 |
74LVC | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
74AUP1G885GN,115IC GATE DUAL FUNCTION 8XSON |
0 | - |
|
数据表 |
74AUP | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
NC7SP57L6XIC GATE ULP UNIV 2-INP 6MICROPAK |
0 | - |
|
数据表 |
7SP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 2.6mA, 2.6mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
HCF4078BEYIC GATE NOR/OR 8INPUT 14-DIP |
0 | - |
|
数据表 |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 20V | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
SN74AUP1G99DCURG4IC CONFIG MULTI FUNCTION US8 |
0 | - |
|
数据表 |
74AUP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
74AUP1G3208GN,132IC 3-IN OR-AND GATE LP 6XSON |
0 | - |
|
数据表 |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
|
NC7SV58L6XIC GATE ULP-A UNIV 2INP 6-MCRPAK |
0 | - |
|
数据表 |
7SV | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 24mA, 24mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
74AUP2G98DPJIC PROG GATE W/SCHMITT 10TSSOP |
0 | - |
|
数据表 |
74AUP | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-TSSOP |
|
M74HC4078RM13TRIC GATE NOR/OR 8-INPUT 14-SOIC |
0 | - |
|
数据表 |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 5.2mA, 5.2mA | 2V ~ 6V | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LVC1G0832YEPRIC SGL 3IN OR/AND GATE 6DSBGA |
0 | - |
|
数据表 |
74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
|
SN74LVC1G3208YEPRIC SGL 3IN OR/AND GATE 6DSBGA |
0 | - |
|
数据表 |
74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
SN74LVC1G99DCTRG4IC CONFIG MULTI-FUNC GATE SM8 |
0 | - |
|
数据表 |
74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
|
NC7SP58L6XIC GATE ULP UNIV 2-INP 6MICROPAK |
0 | - |
|
数据表 |
7SP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 2.6mA, 2.6mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
SN74LVC1G57DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
0 | - |
|
数据表 |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G58DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
0 | - |
|
数据表 |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|

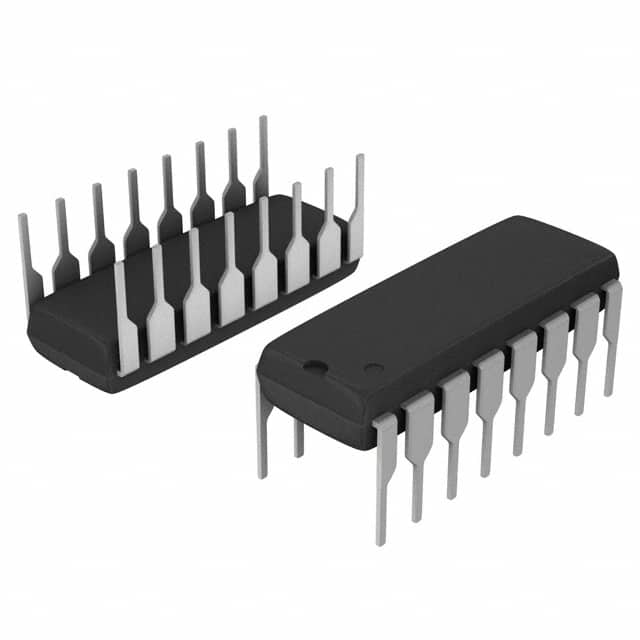

HCF4019BEYIC 2INPUT AND/OR QUAD 14DIP |
0 | - |
|
数据表 |
4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | AND/OR Gate | 4 | 2 Input (1, 1) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 20V | -55°C ~ 125°C | - | - | Through Hole | 16-DIP |
|
|
SN74LVC1G97DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
0 | - |
|
数据表 |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
CD4085BPWIC DUAL AND-ORINV GATE 14-TSSOP |
0 | - |
|
数据表 |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
