陀螺仪
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 轴向 | 范围 °/s | 灵敏度（LSB/(°/s)） | 灵敏度（mV/°/s） | 带宽 | 输出类型 | 电压 - 电源 | 电流 - 电源 | 特性 | 工作温度 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPY4150ALGYRO 1500DEG/S 0.67MV 28LGA |
0 | - |
|
数据表 |
- | 28-TFLGA | Tray | Obsolete | Analog | X (Pitch), Y (Roll) | ±1500 | - | 0.67 | 140Hz | Analog Voltage | 2.7V ~ 3.6V | 6.8 mA | - | -40°C ~ 85°C | - | - |
|
|
LPY403ALGYRO 30DEG/S 33.3MV 140HZ 28LGA |
0 | - |
|
数据表 |
- | 28-TFLGA | Tray | Obsolete | Analog | X (Pitch), Z (Yaw) | ±30 | - | 33.3 | 140Hz | Analog Voltage | 2.7V ~ 3.6V | 6.8 mA | - | -40°C ~ 85°C | - | - |
|
L3GD20HTRIC MEMS MOTION SENSOR 16LLGA |
0 | - |
|
数据表 |
- | 16-LGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±245, 500, 2000 | 8.75 ~ 70 | - | 6.25Hz ~ 400Hz | I2C, SPI | 2.2V ~ 3.6V | 5 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
LPR550ALTRGYROSCOPE MEMS DUAL AXIS 16-LGA |
16 | - |
|
数据表 |
- | 16-LFLGA | Tape & Reel (TR) | Obsolete | Analog | X (Pitch), Y (Roll) | ±500 | - | 2 | 140Hz | Analog Voltage | 2.7V ~ 3.6V | 6.8 mA | - | -40°C ~ 85°C | - | - |
|
ITG-10103-AXIS GYROSCOPE; LOW POWER SOLU |
0 | - |
|
数据表 |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 16kHz | I2C, SPI | 1.71V ~ 3.6V | 3.2 mA | Adjustable Bandwidth, Selectable Scale, Temperature Sensor | -40°C ~ 85°C | - | - |
|
L3G4200DGYROSCOPE MEMS 3-AXIS 16LGA |
0 | - |
|
- |
- | 16-TFLGA | Tray | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 2000 | 8.75 ~ 70 | - | 100Hz ~ 800Hz | I2C, SPI | 2.4V ~ 3.6V | 6.1 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
LISY300ALIC GYRO SENSOR 28-LGA |
0 | - |
|
数据表 |
- | 28-LFLGA | Tray | Obsolete | Analog | Z (Yaw) | ±300 | - | 3.3 | 88Hz | Analog Voltage | 2.4V ~ 3.6V | 4.8 mA | - | -40°C ~ 85°C | - | - |
|
|
LYPR540AHGYROSCOPE MEMS TRIPLE AXIS 28LGA |
0 | - |
|
数据表 |
- | 28-TFLGA | Tray | Obsolete | Analog | X (Pitch), Y (Roll), Z (Yaw) | ±400 | - | 3.2 | 140Hz | Analog Voltage | 2.7V ~ 3.6V | 10 mA | - | -40°C ~ 85°C | - | - |
|
|
LY530ALIC MEMS INERTL SENSOR SGL 16LGA |
0 | - |
|
数据表 |
- | 16-LFLGA | Tray | Obsolete | Analog | X (Pitch) | ±300 | - | 33.3 | 88Hz | Analog Voltage | 2.7V ~ 3.6V | 4.8 mA | - | -40°C ~ 85°C | - | - |
.jpg)
|
ADXRS290BCEZ-RLIC GYROSCOPE YAW RATE 18LGA |
0 | - |
|
数据表 |
- | 18-LFLGA | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll) | ±100 | 200 | - | 20Hz ~ 480Hz | SPI | 2.7V ~ 5V | 7.8 mA | Adjustable Bandwidth, Sleep Mode | -25°C ~ 85°C | - | - |
|
SCR410T-K03-10GYROSCOPE X AXIS 300DPS |
0 | - |
|
数据表 |
SCC400T | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Digital | X (Pitch) | ±300 | 80 | - | 13Hz ~ 300Hz | SPI | 3V ~ 3.6V | - | Temperature Sensor | -40°C ~ 110°C | - | - |
|
|
ICG-1020STHINNEST DUAL-AXIS OIS OPTIMIZED |
0 | - |
|
数据表 |
- | 12-WFLGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll) | ±46.5, 374 | - | - | 32kHz | SPI | 1.71V ~ 3.6V | - | Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
SCR2100-D08-6GYROSCOPES |
0 | - |
|
数据表 |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ADXRS450BRGZ-RLSENS GYRO 300DEG/S DGTL 16SOIC |
0 | - |
|
数据表 |
- | 16-SOIC (0.307", 7.80mm Width) | Tape & Reel (TR) | Active | Digital | Z (Yaw) | ±300 | 80 | - | 80Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
MPU-3300GYROSCOPE 3-AXIS I2C 24QFN |
0 | - |
|
数据表 |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±225, 450 | 7.28 ~ 145.6 | - | 33kHz (X), 30kHz (Y), 27kHz (Z) | I2C, SPI | 2.375V ~ 3.46V | 3.6 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 125°C | - | - |
|
ADXRS622BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
0 | - |
|
数据表 |
- | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±300 | - | 7 | 0.01Hz ~ 2.5kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|

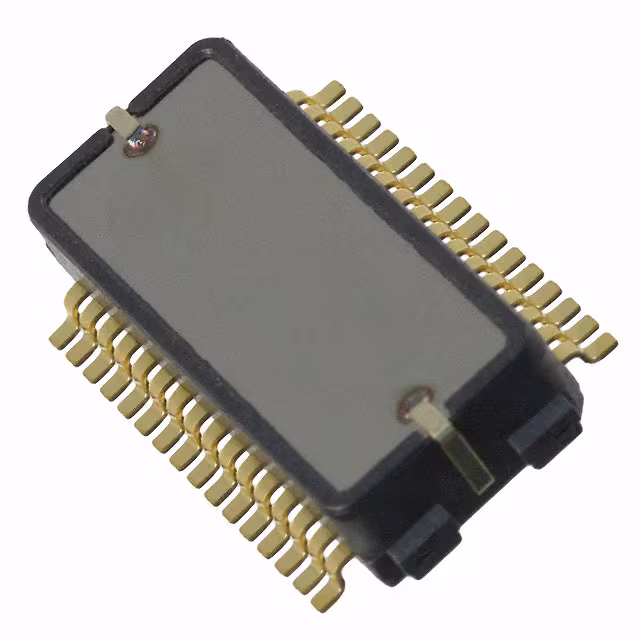

SCR1100-D02-05SENSOR GYRO 100DEG SNGL AXIS SPI |
0 | - |
|
数据表 |
- | 32-BSOP (0.335", 8.50mm Width) | Tape & Reel (TR) | Active | Digital | X (Pitch) | ±100 | 50 | - | 50Hz | SPI | 3V ~ 3.6V, 4.75V ~ 5.25V | 46 mA | Temperature Sensor | -40°C ~ 125°C | - | - |
|
ADXRS450BEYZ-RLSENS GYRO 300DEG/S DGTL 14CLCC |
0 | - |
|
数据表 |
- | 14-CLCC | Tape & Reel (TR) | Last Time Buy | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±300 | 80 | - | 80Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
SCR1100-D04-05SENSOR GYRO 300DEG SNGL AXIS SPI |
0 | - |
|
数据表 |
- | 32-BSOP (0.335", 8.50mm Width) | Cut Tape (CT) | Active | Digital | X (Pitch) | ±300 | 18 | - | 50Hz | SPI | 3V ~ 3.6V, 4.75V ~ 5.25V | 46 mA | Temperature Sensor | -40°C ~ 125°C | - | - |
|
GYPRO2300MEMS GYRO Z-AXIS (YAW) 30-CLCC |
0 | - |
|
数据表 |
GYPRO® | 30-CLCC | Tray | Obsolete | Digital | Z (Yaw) | ±300 | 10000 | - | 100Hz | SPI | 4.75V ~ 5.25V | 25 mA | Temperature Compensated | -40°C ~ 85°C | - | - |
