直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTL6048S12DC DC CONVERTER 12V 60W |
28 | - |
|
数据表 |
JTL60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 92% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|

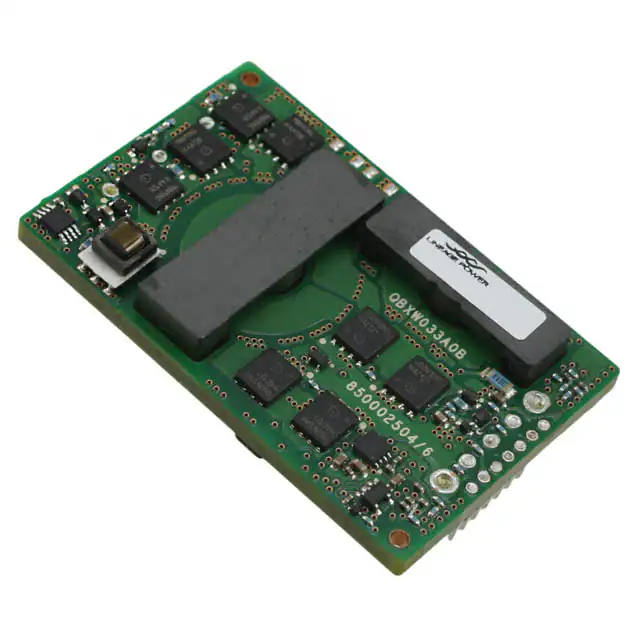

QBDW033A0B41-HZDC DC CONVERTER 12V 396W |
30 | - |
|
数据表 |
Barracuda™ QBDW033A0B (400W) | 8-DIP Module, 1/4 Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 95.3% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
RP30-2415SEWDC DC CONVERTER 15V 30W |
55 | - |
|
数据表 |
POWERLINE RP30-EW (30W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 10V | 40V | 15V | - | - | - | 2A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
70IMX7-15-15-8GDC DC CONVERTER 15V 15V 7W |
48 | - |
|
数据表 |
Melcher IMX7 (7W) | 14-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 40V | 121V | 15V | 15V | - | - | 240mA, 240mA | 7 W | 2 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
REM20-2412SWDC DC CONVERTER 12V 20W |
56 | - |
|
数据表 |
MEDLINE REM20-W (20W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.667A | 20 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 88.5% | - | - | Through Hole | - | - | - | - | |
|
MPQ0125V3NBMCDC-DC 300W 18-75/12V 1/4 BRICK |
67 | - |
|
数据表 |
- | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 85°C | 94% | - | - | Through Hole | Quarter Brick | - | cCSAus, CE, UKCA | - | |
|
REM10-2412DW/ADC DC CONVERTER +/-12V 10W |
170 | - |
|
数据表 |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
SQE48T17060-NGB0GDC DC CONVERTER 6V 102W |
123 | - |
|
数据表 |
SQE48 | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 6V | - | - | - | 17A | 102 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
Q80SV24006PRFS14.4-170VIN, 24VOUT, 150W, EN501 |
64 | - |
|
数据表 |
Q80SV_150W (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 14.4V | 170V | 24V | - | - | - | 6.3A | 151 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 89.3% | - | - | Through Hole | Quarter Brick | Enable, Active High | EN, UL | 60950-1; 62368-1 | |
|
TEN 40-4812WIRDC DC CONVERTER 12V 40W |
54 | - |
|
数据表 |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | - | - | |
|
TEN 40-4815WIRDC DC CONVERTER 24V 40W |
45 | - |
|
数据表 |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 1.666A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | Module | - | - | - | |
|
THN 30-2413WIDC DC CONVERTER 15V 30W |
29 | - |
|
数据表 |
THN 30WI (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
REM20-2405SWDC DC CONVERTER 5V 20W |
30 | - |
|
数据表 |
MEDLINE REM20-W (20W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
PXD-M30-24WS05DC DC CONVERTER 5V 30W |
78 | - |
|
数据表 |
PXD-M (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | - | - | Through Hole | - | - | CE | - | |
|
ECLB75W-24S05DC DC CONVERTER 5V 75W |
3,053 | - |
|
数据表 |
ECLB75W (75W) | 7-DIP Module, 6 Leads | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 | |
|
CHB100W-24S24DC DC CONVERTER 24V 100W |
326 | - |
|
数据表 |
CHB100W (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 4.17A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87.5% | - | - | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
|
CHB100W-24S12DC DC CONVERTER 12V 100W |
59 | - |
|
数据表 |
CHB100W (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.3A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88.5% | - | - | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
|
Q80SV12013PRFS14.4-170VIN, 12VOUT, 150W, EN501 |
99 | - |
|
数据表 |
Q80SV_150W (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 14.4V | 170V | 12V | - | - | - | 12.5A | 150 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 90% | - | - | Through Hole | Quarter Brick | Enable, Active High | EN, UL | 60950-1; 62368-1 | |
|
THM 30-2411WIDC DC CONVERTER 5V 30W |
52 | - |
|
数据表 |
THM 30WI (30W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
|
DAQ0150V2NBCDC DC CONVERTER 12V 600W |
100 | - |
|
数据表 |
DAQ (600W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | - | - | - |
