直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OKL2-T/6-W5P-CDC DC CONVERTER 0.6-3.3V |
1,780 | - |
|
数据表 |
Okami™ OKL2-T/6-W5 | 12-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 93.5% | - | - | Surface Mount | - | - | - | - | |
|
RKZ-242005DDC DC CONVERTER 20V -5V 2W |
157 | - |
|
数据表 |
ECONOLINE RKZ-xx2005D (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 20V | -5V | - | - | 50mA, 200mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | |
|
EPM2405SJDC DC CONVERTER 24V 12W |
177 | - |
|
数据表 |
EPM | 14-DIP Module | Bulk | Active | Isolated Module | 1 | 110V | 450V | 24V | - | - | - | 500mA | 12 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP | -20°C ~ 80°C | 80% | - | - | Through Hole | - | - | - | - | |
|
EC2SA-05D15NDC DC CONVERTER +/-15V 2W |
811 | - |
|
数据表 |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
NMR118CDC DC CONVERTER 5V 1W |
769 | - |
|
数据表 |
NMR (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | - | - | - | - | |
|
NKE0505SECDC DC CONVERTER 5V 1W |
702 | - |
|
数据表 |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - | |
|
MTC1S2403MC-R13DC DC CONVERTER 3.3V 1W |
567 | - |
|
数据表 |
MTC1 (1W) | 6-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 100°C | 75.5% | - | - | Surface Mount | - | - | - | - | |
|

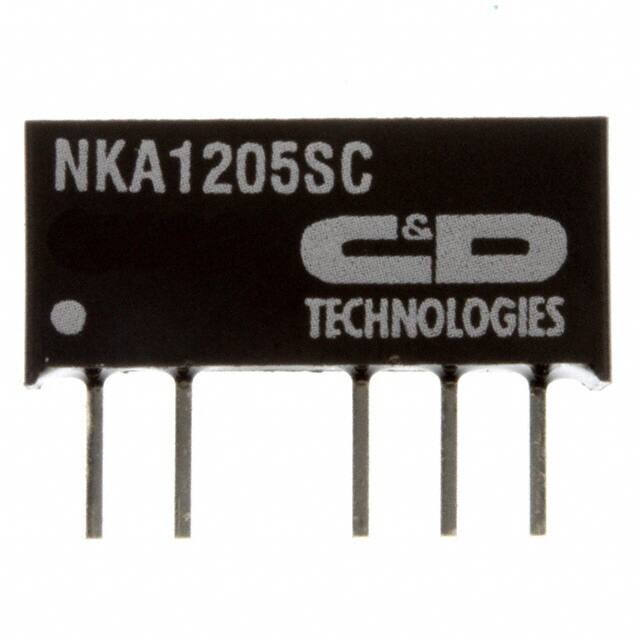

NKA1205SCDC DC CONVERTER +/-5V 1W |
563 | - |
|
数据表 |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | - | - | |
|
|
NMR102CDC DC CONVERTER 15V 1W |
273 | - |
|
数据表 |
NMR (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
|
MTC1S1212MC-R13DC DC CONVERTER 12V 1W |
243 | - |
|
数据表 |
MTC1 (1W) | 6-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 100°C | 79% | - | - | Surface Mount | - | - | - | - | |
|
|
MTC1S1203MC-R13DC DC CONVERTER 3.3V 1W |
176 | - |
|
数据表 |
MTC1 (1W) | 6-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
|
MTC1S1205MC-R13DC DC CONVERTER 5V 1W |
147 | - |
|
数据表 |
MTC1 (1W) | 6-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 100°C | 78.5% | - | - | Surface Mount | - | - | - | - | |
|
MTU1S0509MCDC DC CONVERTER 9V 1W |
120 | - |
|
数据表 |
MTU1 (1W) | 5-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | |
|
|
MTU1D1212MCDC DC CONVERTER +/-12V 1W |
120 | - |
|
数据表 |
MTU1 (1W) | 5-SMD Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Surface Mount | - | - | - | - | |
|
NMG0515SCDC DC CONVERTER 15V 2W |
110 | - |
|
数据表 |
NMG (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | - | - | - | |
|
RNM-0512SDC DC CONVERTER 12V 1W |
136 | - |
|
数据表 |
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
RNM-0515SDC DC CONVERTER 15V 1W |
135 | - |
|
数据表 |
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
TPSM63602V3RDHR3.6-V TO 36-V INPUT, 1-V TO 12-V |
2,475 | - |
|
数据表 |
TPSM | 30-PowerQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 3.3V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 125°C | 94.1% | - | - | Surface Mount | 30-B0QFN (4x6) | Enable, Active High | - | - | |
|
|
TPSM63602V5RDHR3.6-V TO 36-V INPUT, 1-V TO 12-V |
1,726 | - |
|
数据表 |
TPSM | 30-PowerQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 5V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 125°C | 94.1% | - | - | Surface Mount | 30-B0QFN (4x6) | Enable, Active High | - | - | |
|
FS1703-3300-ALTDK MPOL POWER MODULE, 5VIN TO 3 |
14,683 | - |
|
数据表 |
µPOL™ micro-POL | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | - | - | - | Surface Mount | - | Enable, Active Low | - | - |
