直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 3-7215WIRDC DC CONVERTER 24V 3W |
143 | - |
|
数据表 |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 125mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
NCS12S4805CDC DC CONVERTER 5V 12W |
105 | - |
|
数据表 |
NCS12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | - | - | - | |
|
TEN 5-4812WIDC DC CONVERTER 12V 6W |
136 | - |
|
数据表 |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | Module | - | - | - | |
|
TEL 12-121212 WATT DC/DC CONVERTER, INDUSTR |
253 | - |
|
数据表 |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | CB, cURus | - | |
|
LMZ14202EXTTZE/NOPBDC DC CONVERTER 0.8-6V |
164 | - |
|
数据表 |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 90% | - | - | Surface Mount | TO-PMOD-7 | Enable, Active High | - | - | |
|
EC8AW-48S05DC DC CONVERTER 5V 15W |
260 | - |
|
数据表 |
EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
TDR 2-2412WISMDC DC CONVERTER 12V 2W |
148 | - |
|
数据表 |
TDR 2WISM (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 167mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - | |
|

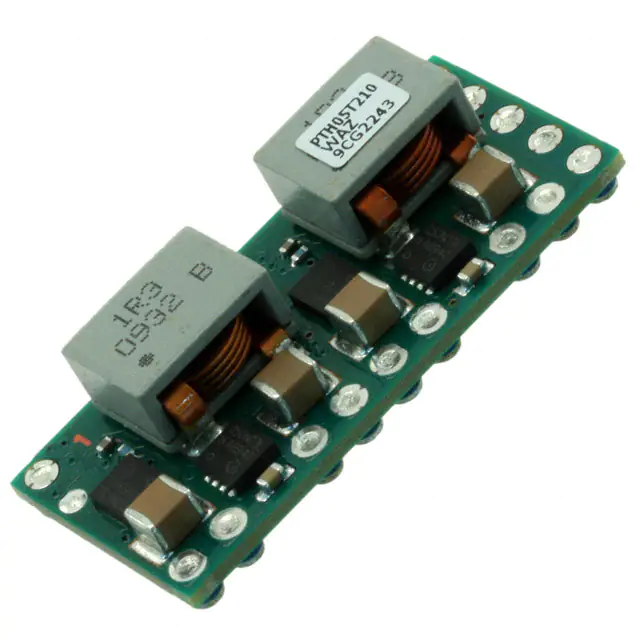

PTH05T210WAZDC DC CONVERTER 0.7-3.6V |
2,832 | - |
|
数据表 |
PTH05T210W | 14-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.7 ~ 3.6V | - | - | - | 30A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
AVD85B-48S12-6LDC DC CONVERTER 12V 85W |
170 | - |
|
数据表 |
AVD85B (85W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 7.1A | 85 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 93.3% | - | - | Through Hole | Sixteenth Brick | - | - | - | |
|
PTH12020LAZDC DC CONVERTER 0.8-1.8V 32W |
14 | - |
|
数据表 |
PTH12020 | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 18A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | - | - | - | |
|
REC5-1205DRW/H4/A/SMDDC DC CONVERTER +/-5V 5W |
3 | - |
|
数据表 |
ECONOLINE REC5 (5W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 81% | - | - | Surface Mount | - | - | - | - | |
|
BTD24-05S200DDC DC CONVERTER 5V 10W |
487 | - |
|
数据表 |
BTD (10W) | Module | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
E48SC12010NRFADC DC CONVERTER 12V 120W |
114 | - |
|
数据表 |
Delphi E48SC | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91.7% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
S24DE120R4PDFADC DC CONVERTER +/-12V 10W |
214 | - |
|
数据表 |
S24DE (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 420mA, 420mA | 10 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | |
|
JTF1048S05DC DC CONVERTER 5V 10W |
212 | - |
|
数据表 |
JTF (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 87% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
JTD1524D12DC DC CONVERTER +/-12V 15W |
129 | - |
|
数据表 |
JTD15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | 6-DIP | - | - | 62368-1 | |
|
JTF0824D15DC DC CONVERTER +/-15V 8W |
111 | - |
|
数据表 |
JTF (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 265mA, 265mA | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 87% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
LTM8052AEY#PBFDC DC CONVERTER 1.2-24V |
119 | - |
|
数据表 |
µModule® | 81-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 81-BGA (15x11.25) | - | - | - | |
|
JSM1024S05DC DC CONVERTER 5V 10W |
406 | - |
|
数据表 |
JSM10 (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C | 85% | - | - | Through Hole | - | - | - | 62368-1 | |
|
ISX0624S15DC DC CONVERTER 15V 6W |
279 | - |
|
数据表 |
ISX06 (6W) | 16-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Surface Mount | - | Enable, Active High | - | 62368-1 |
