直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1515XT-2WR3DC DC CONVERTER 15V 2W |
362 | - |
|
数据表 |
B1515XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tray | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | CE | 62368-1 | |
|
IB0505XT-W75R3ISOLATED MODULE DC DC CONVERTER |
187 | - |
|
数据表 |
IB05_XT-W75R3 (750mW) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 150mA | 750 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Surface Mount | - | - | CE, EN, UKCA | 62368-1 | |
|
|
IB2405XT-1WR3ISOLATED MODULE DC DC CONVERTER |
147 | - |
|
数据表 |
IB_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | - | - | - | - | |
|
|
IB2405LS-1WR3ISOLATED MODULE DC DC CONVERTER |
141 | - |
|
数据表 |
IB_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | - | - | CB, CE, cURus | 62368-1 | |
|
|
IB2405S-W75R3ISOLATED MODULE DC DC CONVERTER |
135 | - |
|
数据表 |
IB_S-W75R3 (750mW) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 150mA | 750 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 | |
|
|
IB2412LS-1WR3ISOLATED MODULE DC DC CONVERTER |
131 | - |
|
数据表 |
IB_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | - | - | CB, CE, cURus | 62368-1 | |
|
|
IF2405XT-1WR3ISOLATED MODULE DC DC CONVERTER |
124 | - |
|
数据表 |
IF_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | - | - | CE | 62368-1 | |
|
PQS075-S24-S12-SDC-DC ISOLATED, 0.75 W, 22.8~25. |
111 | - |
|
数据表 |
PQS075-S (0.75W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 12V | - | - | - | 62mA | 744 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
IB0503XT-1WR3DC-DC ISOLATED 1 W 4.75~5.25V |
159 | - |
|
数据表 |
IB05_XT-1WR3 | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 3.3V | - | - | - | 250mA | 825 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 66% | - | - | Surface Mount | - | - | - | 62368-1 | |
|

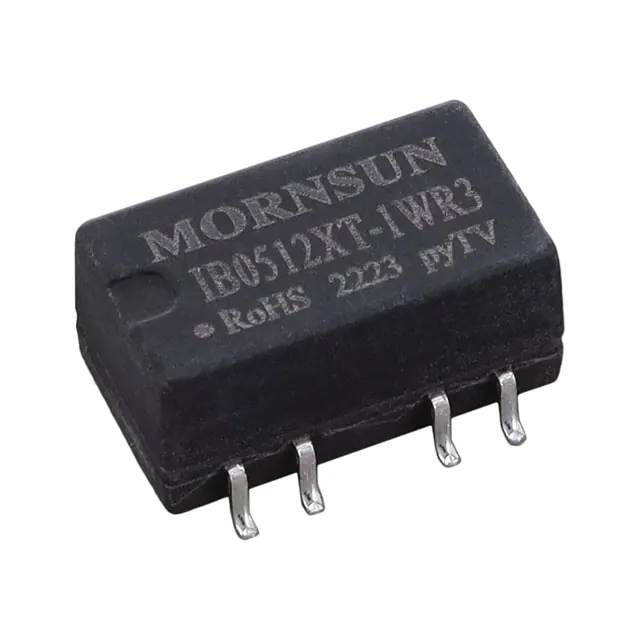

IB0512XT-1WR3DC-DC ISOLATED 1 W 4.75~5.25V |
150 | - |
|
数据表 |
IB05_XT-1WR3 | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | - | - | - | 62368-1 | |
|
1T8A1_0505S1.5UPDC-DC |
265 | - |
|
数据表 |
1T8A1_1.5UP (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 | |
|
|
H2424S-1WR3ISOLATED MODULE DC DC CONVERTER1 |
132 | - |
|
数据表 |
H_S-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1.008 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 76% | - | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
A1515D-2WR3DC DC CONVERTER +/-15V 2W |
125 | - |
|
数据表 |
A1515D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
|
A2424S-2WR3ISOLATED MODULE DC DC CONVERTER |
123 | - |
|
数据表 |
A_S-2WR3 (2W) | 6-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | CB, CE, cURus | 62368-1 | |
|
|
F2409S-2WR3ISOLATED MODULE DC DC CONVERTER |
114 | - |
|
数据表 |
E_S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CB, CE, cURus | 62368-1 | |
|
|
H2412S-1WR3ISOLATED MODULE DC DC CONVERTER1 |
113 | - |
|
数据表 |
H_S-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1.008 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 76% | - | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
|
H2405S-1WR3ISOLATED MODULE DC DC CONVERTER1 |
105 | - |
|
数据表 |
H_S-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 76% | - | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
B0503XT-1WR3DC DC CONVERTER 3.3V 1W |
1,606 | - |
|
数据表 |
B_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | - | - | Surface Mount | - | - | CB, CE, cURus | - | |
|
|
B0515XT-1WR3DC DC CONVERTER 15V 1W |
242 | - |
|
数据表 |
B_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB, CE, cURus | - | |
|
E0512D-2WR3DC DC CONVERTER +/-12V 2W |
477 | - |
|
数据表 |
E0512D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - |
