直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSR 2-2490DC DC CONVERTER 9V 18W |
125 | - |
|
数据表 |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 12V | 36V | 9V | - | - | - | 2A | 18 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - | |
|
TPSM63606RDLRDC DC CONVERTER 1-16V |
908 | - |
|
数据表 |
TPSM | 20-PowerBFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 16V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C | 91.3% | - | - | Surface Mount | 20-B3QFN (5x5.5) | Enable, Active High | - | - | |
|
DCP020503UDC DC CONVERTER 3.3V 2W |
396 | - |
|
数据表 |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 606mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 74% | - | - | Surface Mount | 12-SOP | - | - | - | |
|
TPSM63606SRDLRHIGH-DENSITY, 36-V INPUT, 1-V TO |
326 | - |
|
数据表 |
TPSM | 20-PowerBFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 16V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C | 95.6% | - | - | Surface Mount | 20-B3QFN (5x5.5) | Enable, Active High | - | - | |
|
RP-0524SDC DC CONVERTER 24V 1W |
161 | - |
|
数据表 |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|

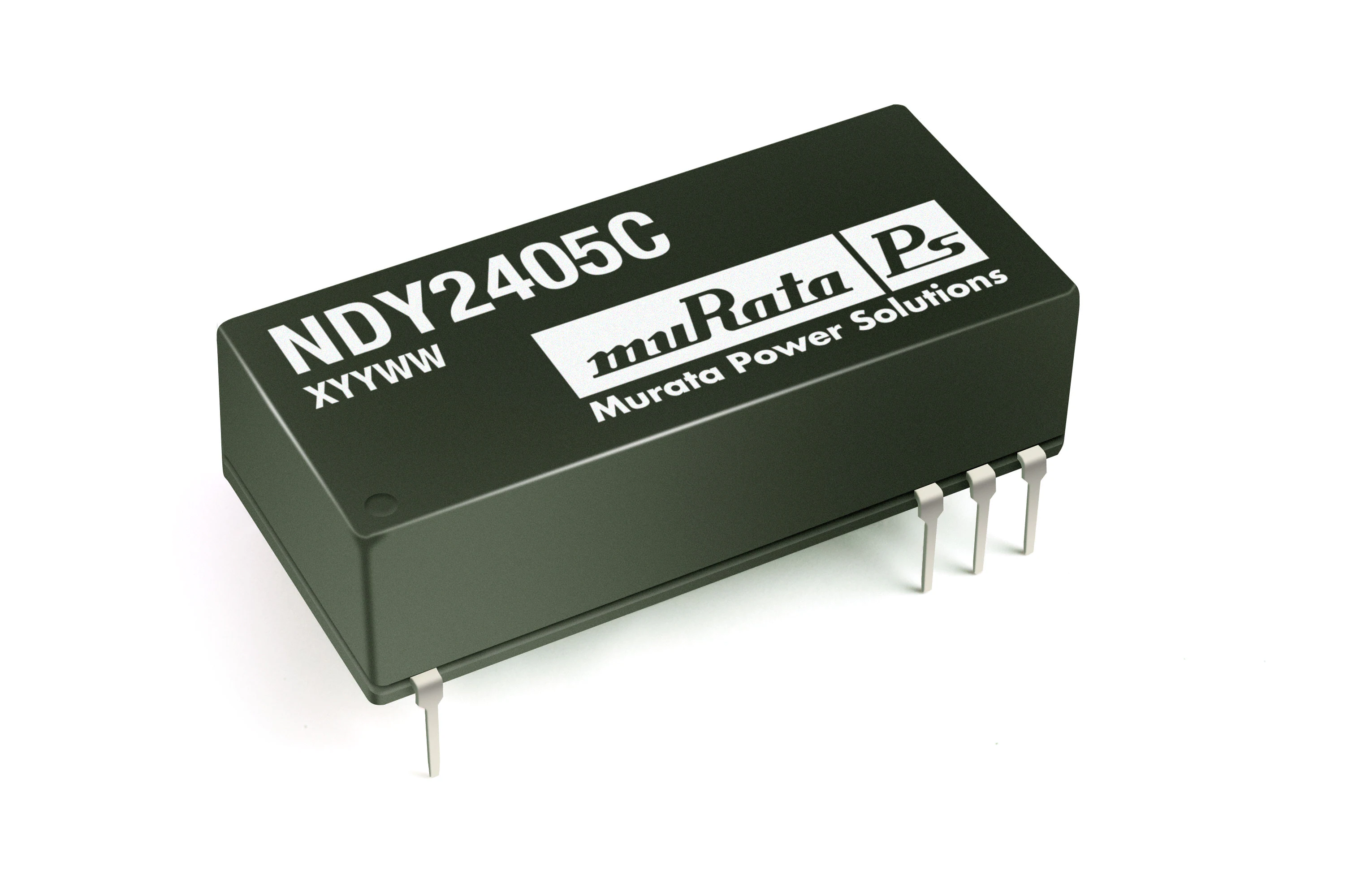

NDY2405CDC DC CONVERTER 5V 3W |
393 | - |
|
数据表 |
NDY (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | - | - | - | - | |
|
NDY2415CDC DC CONVERTER 15V 3W |
315 | - |
|
数据表 |
NDY (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|

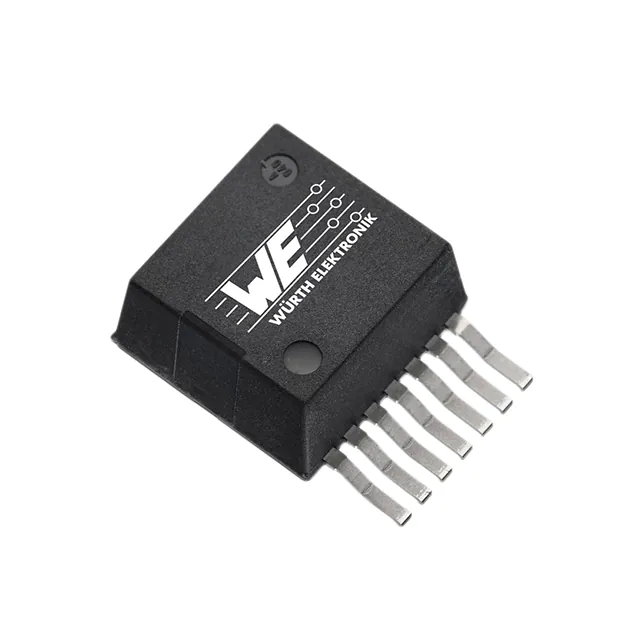

171030601DC DC CONVERTER 0.8-6V |
639 | - |
|
数据表 |
MagI³C, VDRM | 7-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Surface Mount | TO-263-7 | Enable, Active High | - | - | |
|
R12P12SDC DC CONVERTER 12V 1W |
323 | - |
|
数据表 |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | - | - | - | - | |
|
REC5A-0505SW/H2DC DC CONVERTER 5V 5W |
117 | - |
|
数据表 |
REC5A (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 73.5% | - | - | Through Hole | - | - | - | - | |
|
|
R-78B5.0-2.0DC DC CONVERTER 5V |
332 | - |
|
数据表 |
INNOLINE R-78B-2.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 2A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 70°C | 94% | - | - | Through Hole | - | - | - | - | |
|
IM2412SADC DC CONVERTER 12V 2W |
14,028 | - |
|
数据表 |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 165mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
|
IM2415SADC DC CONVERTER 15V 2W |
10,354 | - |
|
数据表 |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 135mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
|
IM2405SADC DC CONVERTER 5V 2W |
720 | - |
|
数据表 |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
|
R05P05SDC DC CONVERTER 5V 1W |
585 | - |
|
数据表 |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | - | - | - | - | |
|
IZ2405SADC DC CONVERTER 5V 3W |
6,479 | - |
|
数据表 |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
|
IZ2412SADC DC CONVERTER 12V 3W |
3,260 | - |
|
数据表 |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
LTM8074IYIC REG BUCK ADJ 1.2A 25BGA |
23 | - |
|
数据表 |
µModule® | 25-FBGA | Tray | Active | Non-Isolated PoL Module | 1 | 3.2V | 40V | 0.8 ~ 12V | - | - | - | 1.2A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 25-BGA (4x4) | - | - | - | |
|
RS6-1205SDC DC CONVERTER 5V 6W |
313 | - |
|
数据表 |
ECONOLINE RS6 (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 75°C | 86% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
RS6-1212SDC DC CONVERTER 12V 6W |
132 | - |
|
数据表 |
ECONOLINE RS6 (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 75°C | 87% | - | - | Through Hole | - | Enable, Active Low | - | - |
