直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3T8W_2405S1.5RPDC-DC INDUSTRIAL |
329 | - |
|
数据表 |
3T8W_1.5RP (3W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Surface Mount | - | - | cURus | 62368-1 | |
|
|
PTH04T261WASDC DC CONVERTER 0.69-3.6V |
0 | - |
|
数据表 |
PTH04T261W | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
K7815-2000R3DC DC CONVERTER 15V 30W |
126 | - |
|
数据表 |
K7815-2000R3 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 96% | - | - | Through Hole | - | - | CE | - | |
|
|
WRF2405P-3WR2DC DC CONVERT 24V 5V TH |
203 | - |
|
数据表 |
WRF_P- 3WR2 (3W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | CE | 60601-1; 62368-1 | |
|
PDS1-S24-S15-MDC DC CONVERTER 15V 1W |
1,807 | - |
|
数据表 |
PDS1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 | |
|
PDS1-S24-S3-DDC DC CONVERTER 3.3V 1W |
0 | - |
|
数据表 |
PDS1-D (1W) | 7-DIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
3T8W_1205S1.5RPDC-DC INDUSTRIAL |
275 | - |
|
数据表 |
3T8W_1.5RP (3W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Surface Mount | - | - | cURus | 62368-1 | |
|
URB2405JMD-3WDC DC CONVERTER 5V 3W |
221 | - |
|
数据表 |
URB2405JMD-3W (3W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | - | - | CE, UKCA | 62368-1 | |
|
|
URB2415JMD-3WDC DC CONVERTER 15V 3W |
199 | - |
|
数据表 |
URB2415JMD-3W (3W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, UKCA | 62368-1 | |
|
URB2405JMT-3WDC DC CONVERTER 5V 3W |
190 | - |
|
数据表 |
URB2405JMT-3W (3W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 77% | - | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
|
URB2415JMT-3WDC DC CONVERTER 15V 3W |
106 | - |
|
数据表 |
URB2415JMT-3W (3W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
|
2118DC DC CONVERTER 2.5-8V 5.6W |
336 | - |
|
数据表 |
S7V8 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.7V | 11.8V | 2.5 ~ 8V | - | - | - | 1A | 5.6 W | - | - | Adjustable Output | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
|
2122DC DC CONVERTER 3.3V 5.6W |
224 | - |
|
数据表 |
S7V8 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.7V | 11.8V | 3.3V | - | - | - | 1A | 5.6 W | - | - | - | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
401612V STEPUP VREG U3V40F12 |
160 | - |
|
数据表 |
- | 6-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 1.3V | 12V | 12V | - | - | - | 3.5A | 91.2 W | - | ITE (Commercial) | OTP, OVP, UVLO | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
|
2123DC DC CONVERTER 5V 5.6W |
140 | - |
|
数据表 |
S7V8 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.7V | 11.8V | 5V | - | - | - | 1A | 5.6 W | - | - | - | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
2873DC DC CONVERTER 3.3V 10W |
132 | - |
|
数据表 |
S9V11 | 5-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 3V | 16V | 3.3V | - | - | - | 1.5A | 10 W | - | - | - | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
40136V STEPUP VREG U3V40F6 |
118 | - |
|
数据表 |
- | 6-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 1.3V | 6V | 6V | - | - | - | 3.5A | 45.6 W | - | - | OTP, OVP, UVLO | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|

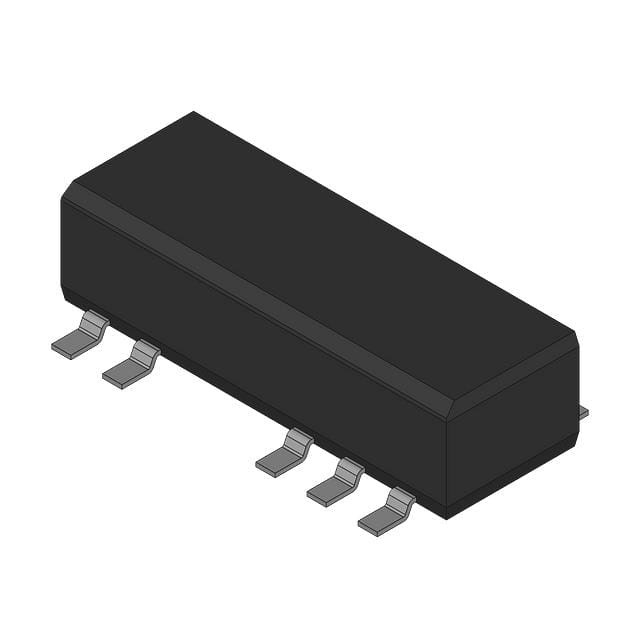

DCP012415DP-5MULTICHIP-JAPAN ONLY, DC-DC UNRE |
485 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
R0.25S-0509DC DC CONVERTER 9V 250MW |
595 | - |
|
数据表 |
ECONOLINE R0.25S (0.25W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 28mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 60 ~ 70% | - | - | Surface Mount | - | - | - | - | |
|
AM1D-2412DH52ZDC DC CONVERTER +/-12V 1W |
200 | - |
|
数据表 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | -12 ~ 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | CE, cULus, cURus | - |
