直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTH12050LAZTDC DC CONVERTER 0.8-1.8V 6A |
0 | - |
|
数据表 |
PTH12050 | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | - | - | - | - | |
|
PT6312RDC DC CONVERTER 15V 3A |
0 | - |
|
数据表 |
PT6310 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 19V | 38V | 15V | - | - | - | 2A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | |
|
|
PT5521ADC DC CONVERTER 3.3V 1.5A |
0 | - |
|
数据表 |
Excalibur™ PT5520 | 5-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT5522CDC DC CONVERTER 2.5V 1.5A |
0 | - |
|
数据表 |
Excalibur™ PT5520 | 5-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 2.5V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | |
|
|
PT5521CDC DC CONVERTER 3.3V 1.5A |
0 | - |
|
数据表 |
Excalibur™ PT5520 | 5-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | - | - | - | |
|
|
PTH12050WAZTDC DC CONVERTER 1.2-5.5V 33W |
501 | - |
|
数据表 |
PTH12050 (33W) | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | - | - | - | - | |
|
|
PTH12020LAGDC-DC REGULATED POWER MODULE |
280 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PMB8818TPDC DC CONVERTER 0.75-5.5V 88W |
200 | - |
|
数据表 |
PMB 8000 | 10-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 16V | 0.75 ~ 5.5V | - | - | - | 16A | 88 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -45°C ~ 115°C (With Derating) | 94.5% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
PTH03060YASDC DC CONVERTER 0.55-1.8V |
0 | - |
|
数据表 |
PTH03060Y | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.55 ~ 1.8V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | |
|
TSRN 1-0525SMDC DC CONVERTER 2.5V 2.5W |
340 | - |
|
数据表 |
TSRN-1SM | 10-SMD Module, 6 Leads | Tube | Discontinued at Digi-Key | Linear Regulator Replacement | 1 | 3V | 5.5V | 2.5V | - | - | - | 1A | 2.5 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Surface Mount | - | - | - | - | |
|
PUZ3-D12-D15-DDC DC CONVERTER +/-15V 3W |
244 | - |
|
数据表 |
PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
RV-0505D/PDC DC CONVERTER +/-5V 2W |
135 | - |
|
数据表 |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
PQME3-D48-S15-M-TRDC DC CONVERTER 15V 3W |
869 | - |
|
数据表 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Surface Mount | - | - | - | - | |
|
|
PQME3-D24-S5-M-TRDC DC CONVERTER 5V 3W |
424 | - |
|
数据表 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 | |
|
|
PQME3-D24-S9-M-TRDC DC CONVERTER 9V 3W |
210 | - |
|
数据表 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 333mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | - | - | UL | 60950-1 | |
|
OKX-T/16-D12N-CDC DC CONVERTER 0.75-5.5V 80W |
2,004 | - |
|
数据表 |
Okami™ OKX-T/16-D12 | 11-SIP Module | Tube | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.75 ~ 5.5V | - | - | - | 16A | 80 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - | |
|
LMZ10505EXTTZX/NOPBDC DC CONVERTER 0.8-5V |
0 | - |
|
数据表 |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 0.8 ~ 5V | - | - | - | 5A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 96% | - | - | Surface Mount | TO-PMOD-7 | Enable, Active High | - | - | |
|
URB2405LD-20WR3DC DC CONVERTER 5V 20W |
488 | - |
|
数据表 |
VRB1212S-6WR3 (6W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 60950-1 | |
|
R1Z-0515-RDC DC CONVERTER 15V 1W |
250 | - |
|
数据表 |
ECONOLINE R1Z (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.75V | 5.25V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial), Medical | - | -40°C ~ 70°C | 60% | - | - | Surface Mount | - | - | - | - | |
|

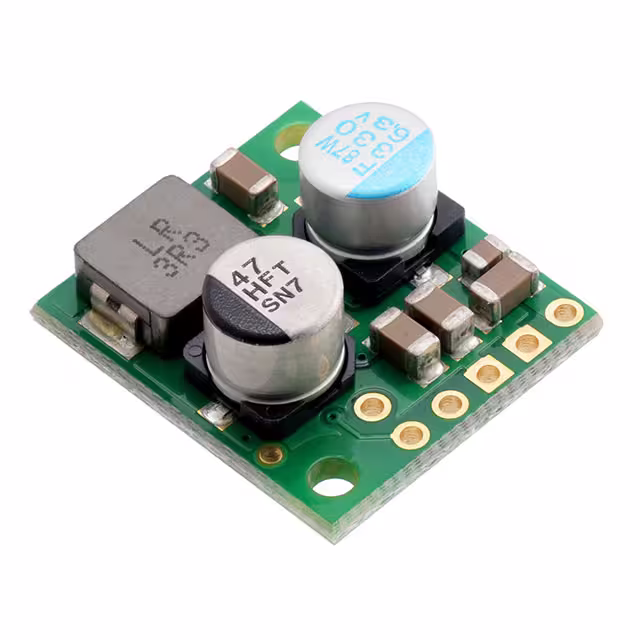

3782DC DC CONVERTER 5V 16W |
524 | - |
|
数据表 |
D36V28 | 5-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 5.3V | 50V | 5V | - | - | - | 3.2A | 16 W | - | - | - | - | 90% | - | - | Through Hole | - | Enable, Active Floating | - | - |
