直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WRD05D05-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 2A | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
WRD48D24-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 36V | 72V | 24V | -24V | - | - | - | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|

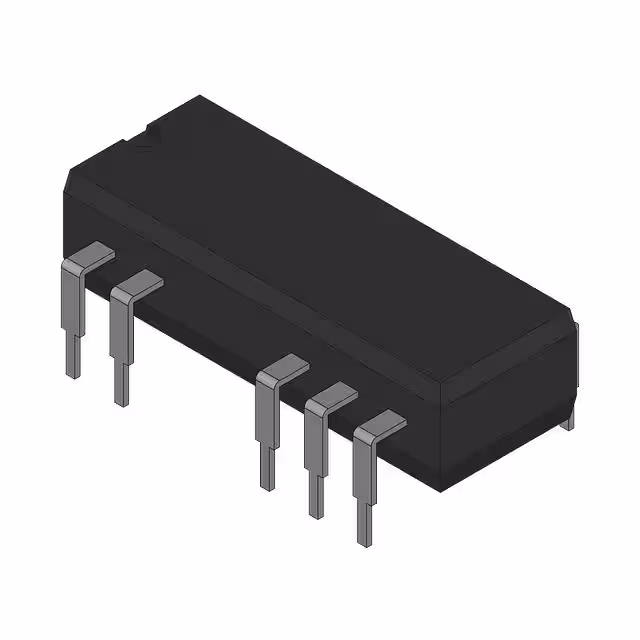

DCV011512DPDC DC CONVERTER +/-12V 1W |
1,112 | - |
|
数据表 |
DCV01 (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 7-PDIP | Enable, Active High | - | - | |
.jpg)
|
DCR011203PDCR011203 MINIATURE, 1W ISOLATED |
317 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
URD12S12-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD24S12-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 1.67A | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD12S24-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 833mA | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD12S05-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD24S24-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 18V | 72V | 24V | - | - | - | 833mA | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD24S05-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 4A | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD24D24-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 18V | 72V | 24V | -24V | - | - | - | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD12D05 -20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
URD12D05 -20W | 7-DIP Module | Case | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A | 20 W | 2 kV | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - | |
|
|
URD24D12-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 18V | 72V | 12V | -12V | - | - | - | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD12D12-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | - | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD24D05-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 18V | 72V | 5V | -5V | - | - | - | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
URD12D24-20WH2DC DC CONVERTER 20W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | - | 20 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
WRD12S12-30WH2DC DC CONVERTER 30W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 2.5A | 30 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
WRD05S12-30WH2DC DC CONVERTER 30W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 2.5A | 30 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
WRD48S05-30WH2DC DC CONVERTER 30W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 6A | 30 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
WRD48S12-30WH2DC DC CONVERTER 30W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 2.5A | 30 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - |
