直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBA 1-0310DC DC CONVERTER 3.3V 858MW |
27 | - |
|
数据表 |
TBA 1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 260mA | 858 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 73% | - | - | Through Hole | - | - | - | - | |
|

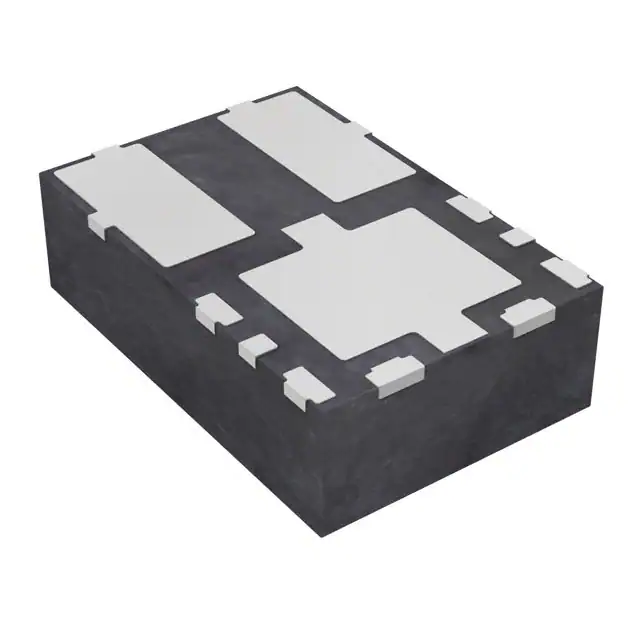

XCL211B082DRDC DC CONVERTER 0.9-6V |
87 | - |
|
数据表 |
XCL211 | 11-PowerLQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 6V | 0.9 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | USP-11B01 | - | - | - | |
|
TBA 2-0511DC DC CONVERTER 5V 2W |
64 | - |
|
数据表 |
TBA 2 (2W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
MGJ1D121802SCDC-DC 1W TH 12-18/2V 5.2KV SIP |
60 | - |
|
数据表 |
MGJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 18V | -2.5V | - | - | 48.8mA, 48.8mA | 1 W | 5.2 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C | 78% | - | - | Through Hole | - | - | cURus | 60601-1; 62368-1 | |
.jpg)
|

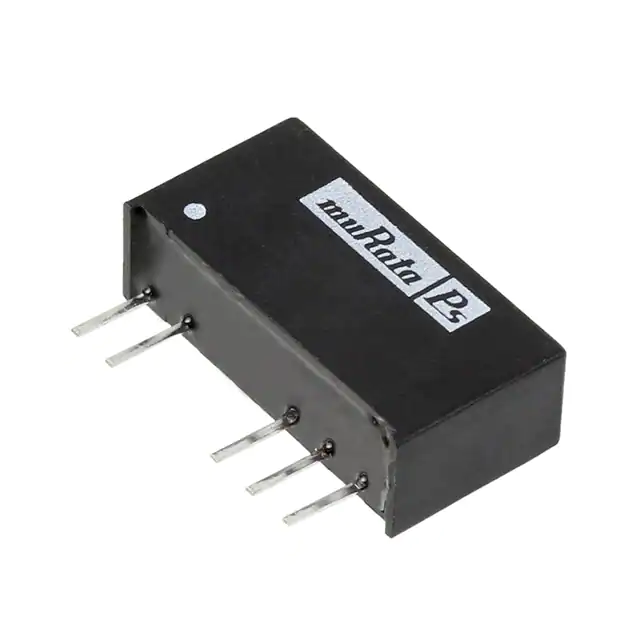

MEA1D2409SCDC DC CONVERTER +/-9V 1W |
100 | - |
|
数据表 |
MEA1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | - | - | - | |
|

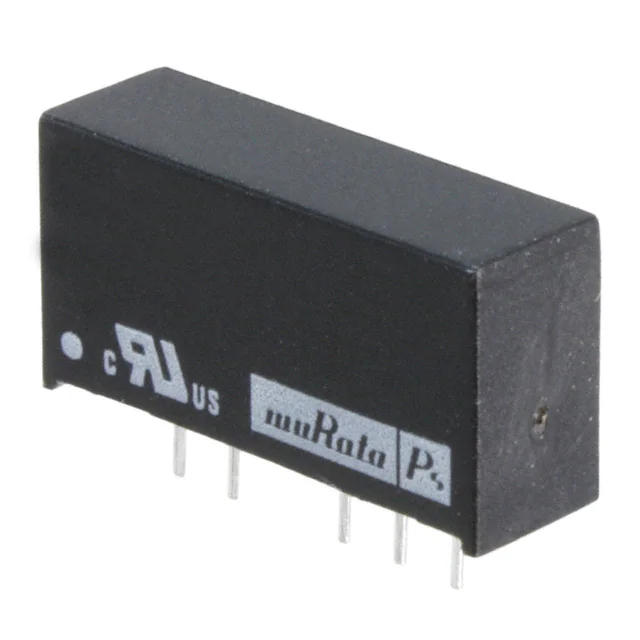

MEA1D0515SCDC DC CONVERTER +/-15V 1W |
76 | - |
|
数据表 |
MEA1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | |
|

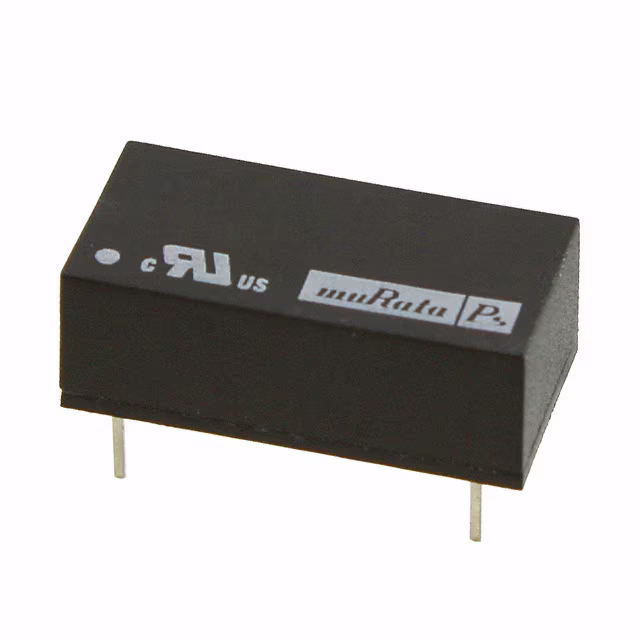

MEA1D2415DCDC DC CONVERTER +/-15V 1W |
71 | - |
|
数据表 |
MEA1 (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|

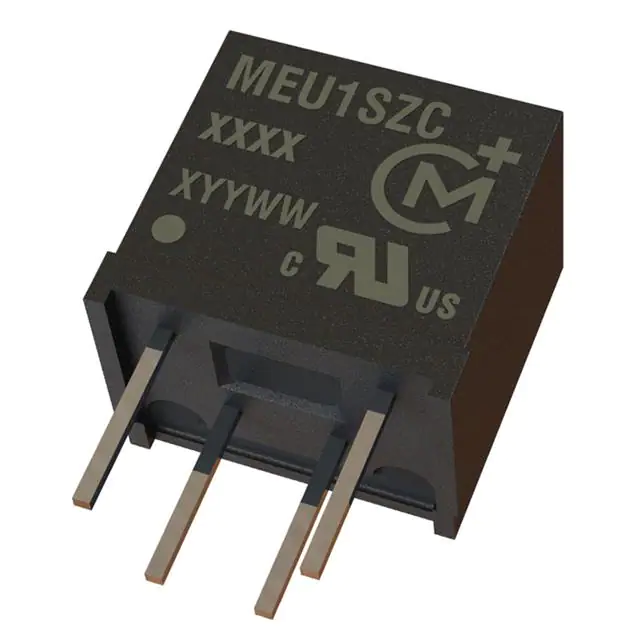

MEU1S0505ZCDC DC CONVERTER 5V 1W |
50 | - |
|
数据表 |
MEU1 (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
NMA0509SCDC DC CONVERTER +/-9V 1W |
37 | - |
|
数据表 |
NMA (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|

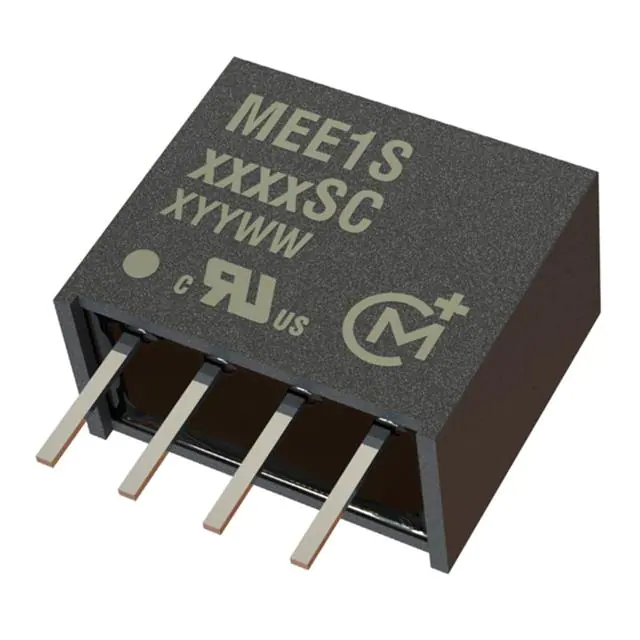

MEE1S1515SCDC DC CONVERTER 15V 1W |
77 | - |
|
数据表 |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
|
MEE1S1205SCDC DC CONVERTER 5V 1W |
75 | - |
|
数据表 |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83.5% | - | - | Through Hole | - | - | - | - | |
|
|
MEE1S0305SCDC DC CONVERTER 5V 1W |
40 | - |
|
数据表 |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81.5% | - | - | Through Hole | - | - | - | - | |
|
TMA 0512SDC DC CONVERTER 12V 1W |
84 | - |
|
数据表 |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|

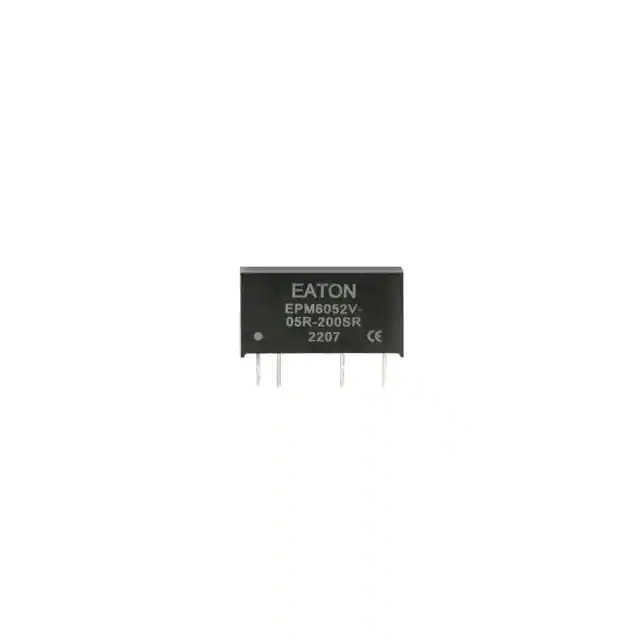

EPM6052V-12R-042DRDC DC CONV 1W 5VIN 12VOUT 42MA |
76 | - |
|
数据表 |
EPM6-2V (1W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | - | - | 62368-1 | |
|

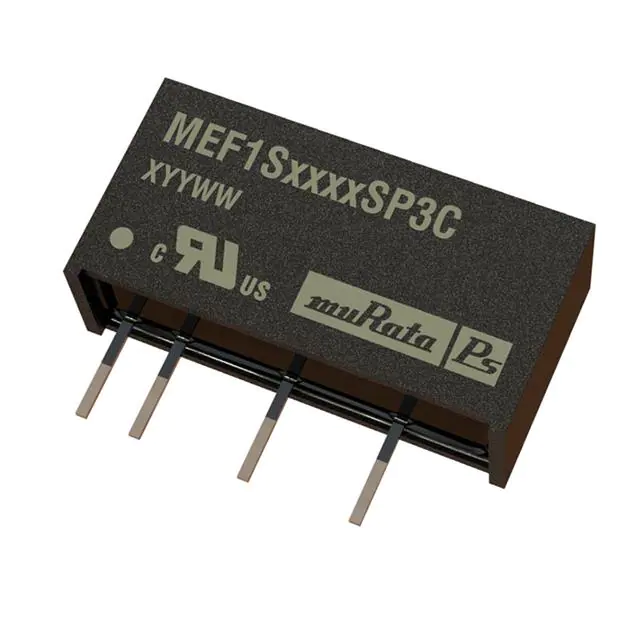

MEF1S1205SP3CDC DC CONVERTER 5V 1W |
75 | - |
|
数据表 |
MEF1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 73.5% | - | - | Through Hole | - | - | - | - | |
|
|
MEF1S2405SP3CDC DC CONVERTER 5V 1W |
45 | - |
|
数据表 |
MEF1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 73% | - | - | Through Hole | - | - | - | - | |
|
TSR 1.5-24120E1.5 AMP POL CONVERTER, INDUSTRIA |
57 | - |
|
数据表 |
TSR 1.5E | 3-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 15V | 36V | 12V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C | 97% | - | - | Through Hole | 3-SIP Module | - | - | - | |
|
IA0503SDC DC CONVERTER +/-3.3V 1W |
34 | - |
|
数据表 |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 151mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 65% | - | - | Through Hole | - | - | - | 62368-1 | |
|

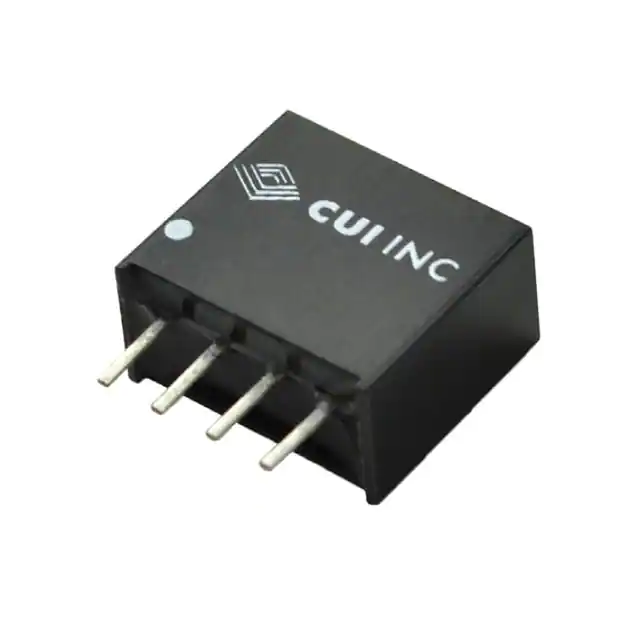

PCSA1-S5-S15-SDC DC CONVERTER 15V 1W |
93 | - |
|
数据表 |
PSCA1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - | |
|

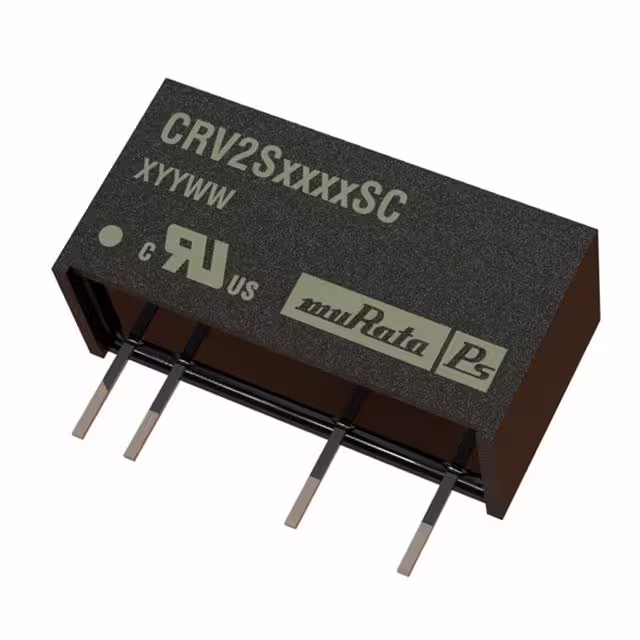

CRV2S0505SCDC DC CONVERTER 5V 2W |
45 | - |
|
数据表 |
CRV2 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
