直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDR 3-2423WISMDC DC CONVERTER +/-15V 3W |
18 | - |
|
数据表 |
TDR 3WISM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | - | - | - | - | |
|
JCA0405S05DC DC CONVERTER 5V 4W |
22 | - |
|
数据表 |
JCA (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 800mA | 4 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | - | - | - | 62368-1 | |
|
LTM8003HYDC DC CONVERTER 0.97-18V |
84 | - |
|
数据表 |
µModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.4V | 40V | 0.97 ~ 18V | - | - | - | 3.5A | - | - | ITE (Commercial) | - | -40°C ~ 150°C | - | - | - | Surface Mount | 48-BGA (9x6.25) | - | - | - | |
|
TVN 3-2423DC DC CONVERTER +/-15V 3W |
62 | - |
|
数据表 |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
REC30E-2405SZ30W DC/DC-CONVERTER 'ECONOLINE' |
8 | - |
|
数据表 |
REC30E-Z (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 2 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | - | - | - | 62368-1 | |
|
THB 3-2415DC DC CONVERTER 24V 3W |
66 | - |
|
数据表 |
THB 3 (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 125mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
THB 3-1215DC DC CONVERTER 24V 3W |
50 | - |
|
数据表 |
THB 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 125mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
TMR 9-2422DC DC CONVERTER +/-12V 9W |
57 | - |
|
数据表 |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 375mA, 375mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
DKMW30G-12DC DC CONVERTER +/-12V 30W |
12 | - |
|
数据表 |
DKMW30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
|
THD 12-1211DC DC CONVERTER 5.1V 12W |
89 | - |
|
数据表 |
THD 12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5.1V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
TEN 8-2422DC DC CONVERTER +/-12V 8W |
75 | - |
|
数据表 |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 335mA, 335mA | 8 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
|
TEN 8-1223DC DC CONVERTER +/-15V 8W |
42 | - |
|
数据表 |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 265mA, 265mA | 8 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
TEN 8-1222DC DC CONVERTER +/-12V 8W |
41 | - |
|
数据表 |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 335mA, 335mA | 8 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
SUCW104815CDC DC CONVERTER +/-15V 11W |
18 | - |
|
数据表 |
SUCW (10W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 36V | 76V | 15V | -15V | - | - | 350mA, 350mA | 11 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
REC10-2415SRW/H2/A/MDC DC CONVERTER 15V 10W |
30 | - |
|
数据表 |
ECONOLINE REC10 (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 667mA | 10 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 75°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
THN 10-4822WIRDC DC CONVERTER +/-12V 10W |
28 | - |
|
数据表 |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | - | - | CB, cURus | - | |
|
TEN 8-4822WIDC DC CONVERTER +/-12V 8W |
55 | - |
|
数据表 |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 333mA, 333mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
THN 15-2410NDC DC CONVERTER 3.3V 15W |
48 | - |
|
数据表 |
THN 15N (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 4.5A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
|
|
THN 15-1211NDC DC CONVERTER 5V 15W |
14 | - |
|
数据表 |
THN 15N (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|

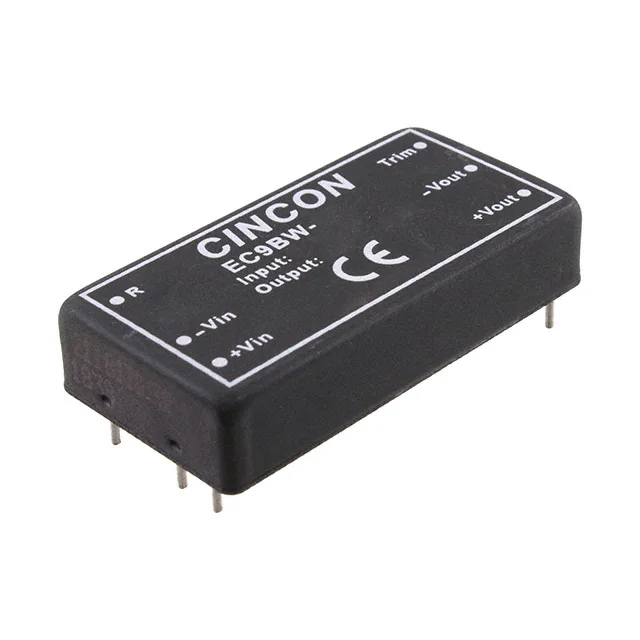

EC9BW-24S05DC DC CONVERTER 5V 30W |
32 | - |
|
数据表 |
EC9BW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
