首页 > 产品 > 继电器 > 干簧继电器

干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)

全部重置

全部应用

结果

厂商型号	可用性	价格	数量	数据表	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
BFM-1C-05CW RELAY REED SPDT .25A 5V Comus International	87	-	请求报价	数据表	BFM-CW	Tube	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	150VDC - Max	20.8 mA	Non Latching	-	PC Pin	-	2.5 VDC	0.4 VDC	1 ms	2 ms	-25°C ~ 85°C	Ruthenium (Ru)
JWD-171-23 RELAY REED DPST 500MA 12V TE Connectivity Potter & Brumfield Relays	0	-	请求报价	数据表	JWD	Tube	Active	Through Hole	12VDC	DPST-NO (2 Form A)	500 mA	100VDC - Max	24 mA	Non Latching	-	PC Pin	-	9.6 VDC	1 VDC	1.5 ms	0.5 ms	-35°C ~ 85°C	Ruthenium (Ru)
BFM-1C05C 200V/1.0A REED RELAY, 1 FORM C, Bright Toward Industrial Co., Ltd.	100	-	请求报价	数据表	BFM	Tube	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	150VDC - Max	22 mA	Non Latching	Coaxial Shield	PC Pin	Sealed - Hermetically	3.8 VDC	0.4 VDC	1 ms	2 ms	-25°C ~ 85°C	-
BFM-1C12C 200V/1.0A REED RELAY, 1 FORM C, Bright Toward Industrial Co., Ltd.	93	-	请求报价	数据表	BFM	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	150VDC - Max	8 mA	Non Latching	Coaxial Shield	PC Pin	Sealed - Hermetically	9 VDC	1 VDC	1 ms	2 ms	-25°C ~ 85°C	-
JWD-171-25 RELAY REED DPST 500MA 5V TE Connectivity Potter & Brumfield Relays	23	-	请求报价	数据表	JWD	Tube	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	100VDC - Max	25 mA	Non Latching	Diode	PC Pin	-	3.8 VDC	0.5 VDC	1.5 ms	0.5 ms	-35°C ~ 85°C	Ruthenium (Ru)
V23100V4312C011 RELAY REED SPDT 250MA 12V TE Connectivity Potter & Brumfield Relays	0	-	请求报价	数据表	V23100-V4, AXICOM	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	175VDC - Max	24 mA	Non Latching	Diode, Electrostatic Shield	PC Pin	-	8.4 VDC	1.8 VDC	1.1 ms	1.6 ms	-40°C ~ 85°C	Ruthenium (Ru)
BFH-2C12 200V/0.5A REED RELAY, 2 FORM C, Bright Toward Industrial Co., Ltd.	83	-	请求报价	数据表	BFH	Tube	Active	Through Hole	12VDC	DPDT (2 Form C)	250 mA	100VDC - Max	24 mA	Non Latching	-	PC Pin	Sealed - Hermetically	6.7 VDC	1 VDC	1.5 ms	2 ms	-40°C ~ 125°C	-
BFH-2A05W 250V/1.5A HIGH TEMPERATURE REED Bright Toward Industrial Co., Ltd.	11	-	请求报价	数据表	BFH	Tube	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	200VDC - Max	55.6 mA	Non Latching	-	PC Pin	Sealed - Hermetically	2.5 VDC	0.4 VDC	0.5 ms	0.15 ms	-40°C ~ 125°C	-
BU-1C05 6GHZ, 200V/0.2A HIGH FREQUENCE R Bright Toward Industrial Co., Ltd.	45	-	请求报价	数据表	BU	Tube	Active	Surface Mount	5VDC	SPDT (1 Form C)	100 mA	30VAC, 30VDC - Max	45.5 mA	Non Latching	-	Gull Wing	Sealed - Hermetically	3.8 VDC	0.4 VDC	0.3 ms	0.3 ms	-20°C ~ 85°C	-
7201-05-1100 RELAY REED SPST 1A 5V Coto Technology	79	-	请求报价	数据表	7000	Bulk	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	500VAC, 500VDC - Max	71.4 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.4 VDC	2 ms	1 ms	-20°C ~ 85°C	-
HE12-1A83-03 RELAY REED SPST 3A 12V Standex-Meder Electronics	10	-	请求报价	数据表	HE	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	46.2 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	3 ms	1.5 ms	-20°C ~ 70°C	-
DAR70505FU RELAY REED SPST-NO 5KV 5V Sensata Technologies, Inc.	4	-	请求报价	数据表	DA	Bulk	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	179 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C	Rhodium (Rh)
DAR72405TU RELAY REED SPST-NO 5KV 24V Sensata Technologies, Inc.	0	-	请求报价	数据表	DA	Bulk	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	30.8 mA	Non Latching	-	PC Pin, Solder Turret	-	20 VDC	4 VDC	3 ms	2 ms	-20°C ~ 70°C	Rhodium (Rh)
DAT70505TU RELAY REED SPST-NO 5KV 5V Sensata Technologies, Inc.	0	-	请求报价	数据表	DA	Bulk	Active	Through Hole	5VDC	SPST-NO (1 Form A)	2 A	3500VAC, 3500VDC - Max	179 mA	Non Latching	-	PC Pin, Solder Turret	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C	Tungsten (W)
DAT72405TU RELAY REED SPST-NO 5KV 24V Sensata Technologies, Inc.	0	-	请求报价	数据表	DA	Bulk	Active	Through Hole	24VDC	SPST-NO (1 Form A)	2 A	3500VAC, 3500VDC - Max	30.8 mA	Non Latching	-	PC Pin, Solder Turret	-	20 VDC	4 VDC	3 ms	2 ms	-20°C ~ 70°C	Tungsten (W)
V23100V6002A201 RELAY REED DPST 750MA 12V TE Connectivity Potter & Brumfield Relays	0	-	请求报价	数据表	V23100-V6, AXICOM	Bulk	Active	Through Hole	12VDC	DPST-NO (2 Form A)	750 mA	24VDC - Nom	10.9 mA	Non Latching	-	PC Pin	-	-	-	-	-	-	Rhodium (Rh), Ruthenium (Ru)

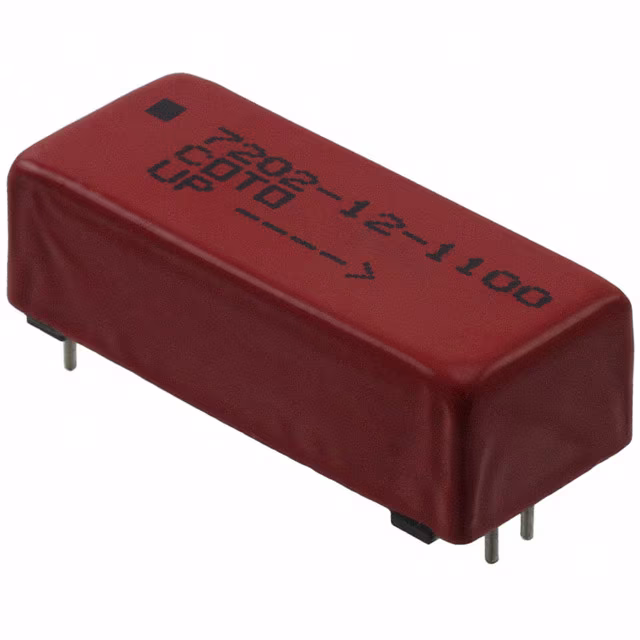

7202-12-1100 RELAY REED DPST 1A 12V Coto Technology	89	-	请求报价	数据表	7000	Tube	Obsolete	Through Hole	12VDC	DPST-NO (2 Form A)	1 A	500VAC, 500VDC - Max	35.2 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	2 ms	1 ms	-20°C ~ 85°C	-
DAT71205FU RELAY REED SPST-NO 5KV 12V Sensata Technologies, Inc.	3	-	请求报价	数据表	DA	Bulk	Active	Through Hole	12VDC	SPST-NO (1 Form A)	2 A	3500VAC, 3500VDC - Max	80 mA	Non Latching	-	PC Pin, Wire Leads	-	9 VDC	1.25 VDC	3 ms	2 ms	-20°C ~ 70°C	Tungsten (W)
DBR70505SU RELAY REED SPST-NC 5KV 5V Sensata Technologies, Inc.	0	-	请求报价	数据表	DB	Bulk	Active	Chassis Mount	5VDC	SPST-NC (1 Form B)	3 A	1000VAC, 1000VDC - Max	132 mA	Non Latching	-	Quick Connect - 0.250" (6.3mm)	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C	Rhodium (Rh)

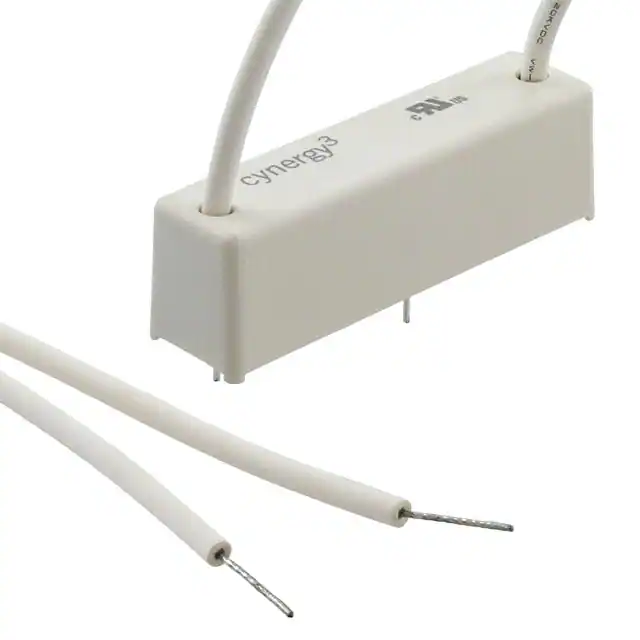

DBR70505FU RELAY REED SPST-NC 5KV 5V Sensata Technologies, Inc.	0	-	请求报价	数据表	DB	Bulk	Active	Through Hole	5VDC	SPST-NC (1 Form B)	3 A	1000VAC, 1000VDC - Max	132 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C	Rhodium (Rh)

共1567条记录«上一页 1... 26 27 28 293031 32 33...79 下一页»
