首页 > 产品 > 继电器 > 干簧继电器

干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)

全部重置

全部应用

结果

厂商型号	可用性	价格	数量	数据表	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
7104-24-1100 RELAY REED 4PST 500MA 24V Coto Technology	218	-	请求报价	数据表	7000	Tube	Active	Through Hole	24VDC	4PST-NO (4 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	-	PC Pin	-	18 VDC	2 VDC	1 ms	0.1 ms	-20°C ~ 85°C	-
2971-05-00 RELAY REED SPDT 250MA 5V Coto Technology	763	-	请求报价	数据表	2970	Tube	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	150VAC, 150VDC - Max	21.7 mA	Non Latching	-	PC Pin	-	2.5 VDC	0.4 VDC	1 ms	2 ms	-40°C ~ 125°C	-

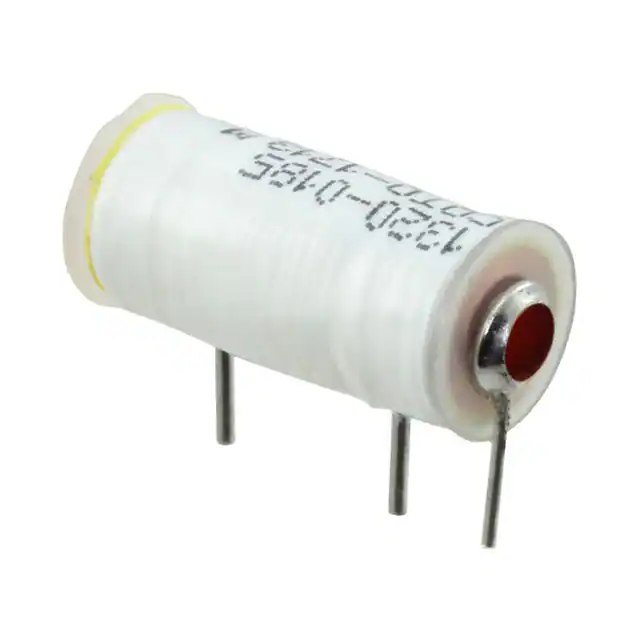

1320-0185 RELAY REED Coto Technology	2,887	-	请求报价	数据表	-	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2342-12-000 RELAY REED DPDT 250MA 12V Coto Technology	703	-	请求报价	数据表	2300	Tray	Active	Through Hole	12VDC	DPDT (2 Form C)	250 mA	100VAC, 100VDC - Max	12 mA	Non Latching	-	PC Pin	Sealed - Hermetically	9 VDC	1 VDC	1.5 ms	2 ms	-20°C ~ 85°C	-
2372-05-000 RELAY REED DPDT 250MA 5V Coto Technology	249	-	请求报价	数据表	2370	Tube	Active	Through Hole	5VDC	DPDT (2 Form C)	250 mA	100VAC, 100VDC - Max	55.6 mA	Non Latching	-	PC Pin	Sealed - Hermetically	2.5 VDC	0.4 VDC	1.5 ms	2 ms	-40°C ~ 125°C	-
SAR92403 RELAY REED SPST 500MA 24V Sensata Technologies, Inc.	298	-	请求报价	数据表	S	Tray	Active	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	20VAC, 20VDC - Max	24 mA	Non Latching	-	PC Pin	-	20 VDC	2 VDC	1 ms	0.5 ms	-20°C ~ 70°C	Rhodium (Rh)

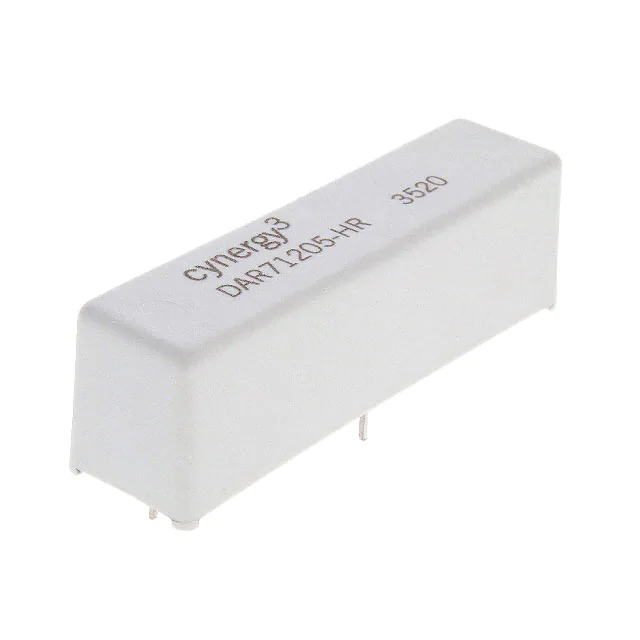

DAR71205-HR RELAY REED 5KV 12V SPST-NO Sensata Technologies, Inc.	1,591	-	请求报价	数据表	D-HR	Bulk	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	80 mA	Non Latching	-	PC Pin	-	9 VDC	1.25 VDC	3 ms	2 ms	-20°C ~ 70°C	Rhodium (Rh)
SAR91205 RELAY REED SPST 500MA 12V Sensata Technologies, Inc.	2,195	-	请求报价	数据表	S	Tray	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	20VAC, 20VDC - Max	20 mA	Non Latching	-	PC Pin	-	9 VDC	1.25 VDC	1 ms	0.5 ms	-20°C ~ 70°C	Rhodium (Rh)

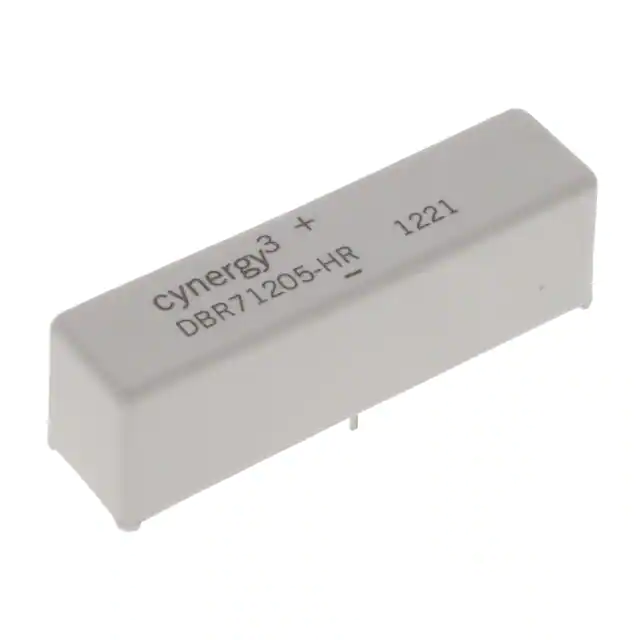

DBR71205-HR RELAY REED 5KV 12V SPST-NC Sensata Technologies, Inc.	578	-	请求报价	数据表	D-HR	Bulk	Active	Through Hole	12VDC	SPST-NC (1 Form B)	3 A	1000VAC, 1000VDC - Max	50 mA	Non Latching	-	PC Pin	-	9 VDC	1.25 VDC	2 ms	3 ms	-20°C ~ 70°C	Rhodium (Rh)
DAR72410 RELAY REED SPST-NO 3A 24V Sensata Technologies, Inc.	1,484	-	请求报价	数据表	DA	Tray	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	30.7 mA	Non Latching	-	PC Pin	-	20 VDC	4 VDC	3 ms	2 ms	-20°C ~ 70°C	Rhodium (Rh)
DAR71210 RELAY REED SPST-NO 3A 12V Sensata Technologies, Inc.	849	-	请求报价	数据表	DA	Tray	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	80 mA	Non Latching	-	PC Pin	-	9 VDC	1.25 VDC	3 ms	2 ms	-20°C ~ 70°C	Rhodium (Rh)
3351-1275-126 RELAY REED HV SPST 50W 3A 12V Computer Components Inc	585	-	请求报价	数据表	3350	Bulk	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	68.6 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	3 ms	3 ms	-20°C ~ 85°C	-
3351-1275-246 RELAY REED HV SPST 50W 3A 24V Computer Components Inc	265	-	请求报价	数据表	3350	Bulk	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	41.7 mA	Non Latching	-	PC Pin	-	18 VDC	2 VDC	3 ms	3 ms	-20°C ~ 85°C	-
DAT71210 RELAY REED SPST-NO 2A 12V Sensata Technologies, Inc.	702	-	请求报价	数据表	DA	Tray	Active	Through Hole	12VDC	SPST-NO (1 Form A)	2 A	7000VAC, 7000VDC - Max	80 mA	Non Latching	-	PC Pin	-	9 VDC	1.25 VDC	3 ms	2 ms	-20°C ~ 70°C	Tungsten (W)
DAT72410 RELAY REED SPST-NO 2A 24V Sensata Technologies, Inc.	386	-	请求报价	数据表	DA	Tray	Active	Through Hole	24VDC	SPST-NO (1 Form A)	2 A	7000VAC, 7000VDC - Max	30.7 mA	Non Latching	-	PC Pin	-	20 VDC	4 VDC	3 ms	2 ms	-20°C ~ 70°C	Tungsten (W)
DAT70510 RELAY REED SPST-NO 2A 5V Sensata Technologies, Inc.	271	-	请求报价	数据表	DA	Tray	Active	Through Hole	5VDC	SPST-NO (1 Form A)	2 A	7000VAC, 7000VDC - Max	179 mA	Non Latching	-	PC Pin	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C	Tungsten (W)
3350-1275-126 RELAY REED HV SPST 200W 3A 12V Computer Components Inc	324	-	请求报价	数据表	3350	Bulk	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	3500VAC, 3500VDC - Max	68.6 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	3 ms	3 ms	-20°C ~ 85°C	-
5501-24-1 RELAY REED SPST 3A 24V Coto Technology	2,046	-	请求报价	数据表	5500	Bulk	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	41.7 mA	Non Latching	EMI Shielded	PC Pin	-	18 VDC	2 VDC	3 ms	3 ms	-20°C ~ 85°C	-

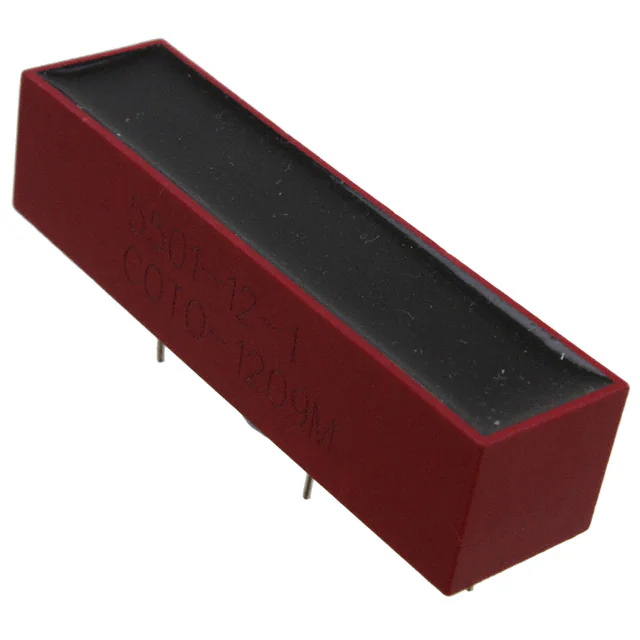

5501-12-1 RELAY REED SPST 3A 12V Coto Technology	2,044	-	请求报价	数据表	5500	Bulk	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	68.6 mA	Non Latching	EMI Shielded	PC Pin	-	9 VDC	1 VDC	3 ms	3 ms	-20°C ~ 85°C	-
5501-05-1 RELAY REED SPST 3A 5V Coto Technology	619	-	请求报价	数据表	5500	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	125 mA	Non Latching	EMI Shielded	PC Pin	-	3.75 VDC	0.5 VDC	3 ms	3 ms	-20°C ~ 85°C	-

共1567条记录«上一页 1 2 3 4 567 8 9...79 下一页»
