首页 > 产品 > 继电器 > 干簧继电器

干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)

全部重置

全部应用

结果

厂商型号	价格	数量	数据表	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
HE221A2450 RELAY REED SPST 500MA 24V Littelfuse Inc.	-	请求报价	数据表	200	Bulk	Active	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	7.3 mA	Non Latching	-	PC Pin	Sealed - Hermetically	16.8 VDC	1.4 VDC	1 ms	1 ms	-40°C ~ 85°C	-
HE721A1215 RELAY REED SPST 500MA 12V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	12 mA	Non Latching	-	PC Pin	-	8 VDC	1 VDC	1 ms	1 ms	-40°C ~ 85°C	-
8061-05-101 RELAY REED SPDT 250MA 5V Coto Technology	-	请求报价	数据表	8000	Tube	Obsolete	Surface Mount	5VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	25 mA	Non Latching	Electrostatic Shield	J Lead	-	3.8 VDC	0.5 VDC	1 ms	1 ms	-20°C ~ 85°C	-
8041-05-011 RELAY REED SPDT 250MA 5V Coto Technology	-	请求报价	数据表	8000	Tube	Obsolete	Through Hole	5VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	25 mA	Non Latching	Diode	PC Pin	-	3.8 VDC	0.5 VDC	1 ms	1.5 ms	-20°C ~ 85°C	-
MRB10273 RELAY REED Coto Technology	-	请求报价	数据表	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HE05-1A83-02 RELAY REED SPST 3A 5V Standex-Meder Electronics	-	请求报价	数据表	HE	Bulk	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	100 mA	Non Latching	-	PC Pin	-	4 VDC	0.75 VDC	3 ms	1.5 ms	-20°C ~ 70°C	-
BE05-2A88-P RELAY REED DPST 1A 5V Standex-Meder Electronics	-	请求报价	数据表	BE	Tube	Obsolete	Through Hole	5VDC	DPST-NO (2 Form A)	1 A	1000VAC, 1000VDC - Max	71.4 mA	Non Latching	-	PC Pin	Sealed - Fully	3.5 VDC	0.75 VDC	-	-	-	-
SIL05-1A31-71M RELAY REED SPST 2A 5V Standex-Meder Electronics	-	请求报价	数据表	SIL	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	2 A	500VAC, 500VDC - Max	62 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	1.2 ms	1 ms	-20°C ~ 70°C	-
MS05-1A31-75L RELAY REED SPST 2A 5V Standex-Meder Electronics	-	请求报价	数据表	MS	Tube	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	2 A	1000VAC, 1000VDC - Max	50 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	1 ms	0.7 ms	-20°C ~ 70°C	-
8260-05-10 RELAY REED 5V Coto Technology	-	请求报价	数据表	8200	Tube	Obsolete	Through Hole	5VDC	-	-	-	-	Non Latching	-	PC Pin	-	-	-	-	-	-	-

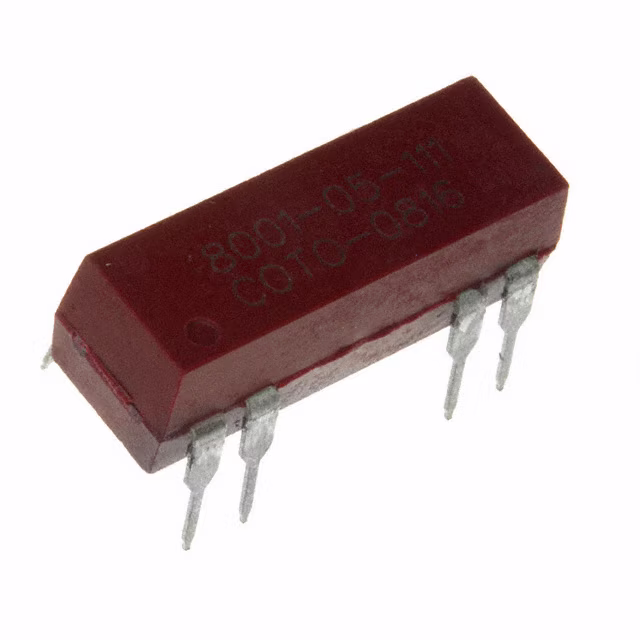

8001-05-111 RELAY REED SPST 500MA 5V Coto Technology	-	请求报价	数据表	8000	Tube	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	Diode, Electrostatic Shield	PC Pin	-	3.8 VDC	0.5 VDC	0.5 ms	1 ms	-20°C ~ 85°C	-
9081C-05-00 RELAY REED SPDT 400MA 5V Coto Technology	-	请求报价	数据表	9000, Spartan	Bulk	Obsolete	Through Hole	5VDC	SPDT (1 Form C)	400 mA	175VAC, 175VDC - Max	40 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.4 VDC	1 ms	1.5 ms	-20°C ~ 85°C	-
9081C-05-10 RELAY REED SPDT 400MA 5V Coto Technology	-	请求报价	数据表	9000, Spartan	Bulk	Obsolete	Through Hole	5VDC	SPDT (1 Form C)	400 mA	175VAC, 175VDC - Max	40 mA	Non Latching	EMI Shielded	PC Pin	-	3.75 VDC	0.4 VDC	1 ms	1.5 ms	-20°C ~ 85°C	-
9081C-12-00 RELAY REED SPDT 400MA 12V Coto Technology	-	请求报价	数据表	9000, Spartan	Bulk	Obsolete	Through Hole	12VDC	SPDT (1 Form C)	400 mA	175VAC, 175VDC - Max	24 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	1 ms	1.5 ms	-20°C ~ 85°C	-
9081C-12-10 RELAY REED SPDT 400MA 12V Coto Technology	-	请求报价	数据表	9000, Spartan	Bulk	Obsolete	Through Hole	12VDC	SPDT (1 Form C)	400 mA	175VAC, 175VDC - Max	24 mA	Non Latching	EMI Shielded	PC Pin	-	9 VDC	1 VDC	1 ms	1.5 ms	-20°C ~ 85°C	-
9081C-24-00 RELAY REED SPDT 400MA 24V Coto Technology	-	请求报价	数据表	9000, Spartan	Bulk	Obsolete	Through Hole	24VDC	SPDT (1 Form C)	400 mA	175VAC, 175VDC - Max	12 mA	Non Latching	-	PC Pin	-	18 VDC	2 VDC	1 ms	1.5 ms	-20°C ~ 85°C	-
9081C-24-10 RELAY REED SPDT 400MA 24V Coto Technology	-	请求报价	数据表	9000, Spartan	Bulk	Obsolete	Through Hole	24VDC	SPDT (1 Form C)	400 mA	175VAC, 175VDC - Max	12 mA	Non Latching	EMI Shielded	PC Pin	-	18 VDC	2 VDC	1 ms	1.5 ms	-20°C ~ 85°C	-
2610-12-310 RELAY REED SPDT 200MA 12V Coto Technology	-	请求报价	数据表	2600	Bulk	Obsolete	Through Hole	12VDC	SPDT (1 Form C)	200 mA	250VAC - Max	-	Non Latching	-	PC Pin	-	9 VDC	1 VDC	-	-	-20°C ~ 70°C	-
2611-05-300 RELAY REED SPDT 250MA 5V Coto Technology	-	请求报价	数据表	2600	Bulk	Obsolete	Through Hole	5VDC	SPDT (1 Form C)	250 mA	200VDC - Max	-	Non Latching	-	PC Pin	-	3.7 VDC	0.4 VDC	-	-	-20°C ~ 70°C	-
2611-05-301 RELAY REED SPDT 250MA 5V Coto Technology	-	请求报价	数据表	2600	Tube	Obsolete	Through Hole	5VDC	SPDT (1 Form C)	250 mA	200VDC - Max	-	Non Latching	-	PC Pin	-	3.7 VDC	0.4 VDC	-	-	-20°C ~ 70°C	-

共1567条记录«上一页 1... 61 62 63 646566 67 68...79 下一页»
