首页 > 产品 > 继电器 > 干簧继电器

干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)

全部重置

全部应用

结果

厂商型号	价格	数量	数据表	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
HE721A0550 RELAY REED SPST 500MA 5V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	10 mA	Non Latching	Diode, EMI Shielded	PC Pin	-	3.75 VDC	0.5 VDC	1 ms	1 ms	-40°C ~ 85°C	-
HE721A1250 RELAY REED SPST 500MA 12V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	12 mA	Non Latching	Diode, EMI Shielded	PC Pin	-	8 VDC	1 VDC	1 ms	1 ms	-40°C ~ 85°C	-
HE721A2440 RELAY REED SPST 500MA 24V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	11.1 mA	Non Latching	EMI Shielded	PC Pin	-	16 VDC	2 VDC	1 ms	1 ms	-40°C ~ 85°C	-
HE721C0550 RELAY REED SPDT 250MA 5V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	175VDC - Max	25 mA	Non Latching	Diode, EMI Shielded	PC Pin	-	3.75 VDC	0.5 VDC	3 ms	3 ms	-40°C ~ 85°C	-
HE721C1220 RELAY REED SPDT 250MA 12V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	175VDC - Max	24 mA	Non Latching	Electrostatic Shield	PC Pin	-	8 VDC	1 VDC	3 ms	3 ms	-40°C ~ 85°C	-
HE721C2440 RELAY REED SPDT 250MA 24V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	24VDC	SPDT (1 Form C)	250 mA	175VDC - Max	12 mA	Non Latching	EMI Shielded	PC Pin	-	16 VDC	2 VDC	3 ms	3 ms	-40°C ~ 85°C	-
HE3671A0500 RELAY REED SPST 500MA 5V Littelfuse Inc.	-	请求报价	数据表	HE3600	Tube	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.5 VDC	1 ms	1 ms	-40°C ~ 85°C	-
HE3671A1200 RELAY REED SPST 500MA 12V Littelfuse Inc.	-	请求报价	数据表	HE3600	Tube	Obsolete	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	12 mA	Non Latching	-	PC Pin	-	8 VDC	1 VDC	1 ms	1 ms	-40°C ~ 85°C	-

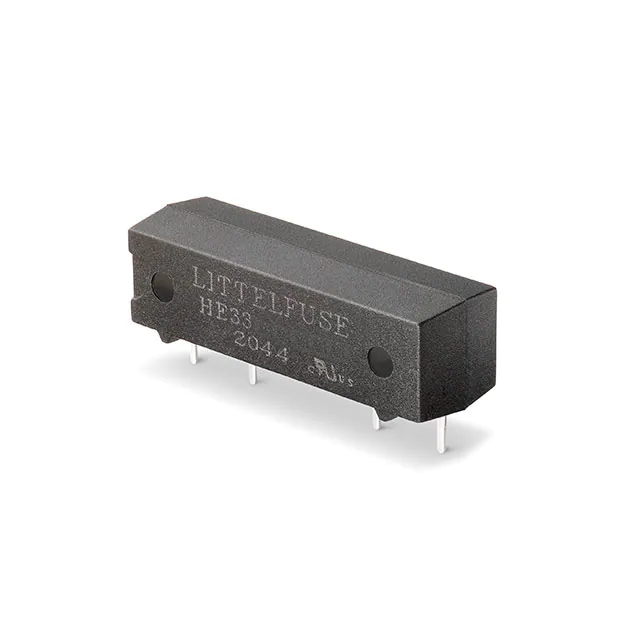

HE3321A0540 RELAY REED SPST 500MA 5V Littelfuse Inc.	-	请求报价	数据表	HE3300	Bag	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	10 mA	Non Latching	EMI Shielded	PC Pin	-	3.75 VDC	0.5 VDC	1 ms	1 ms	-40°C ~ 85°C	-
HE3321A0440 RELAY REED SPST 500MA 5V Littelfuse Inc.	-	请求报价	数据表	HE3300	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VDC - Max	10 mA	Non Latching	EMI Shielded	PC Pin	-	3.75 VDC	0.5 VDC	1 ms	1 ms	-40°C ~ 85°C	-

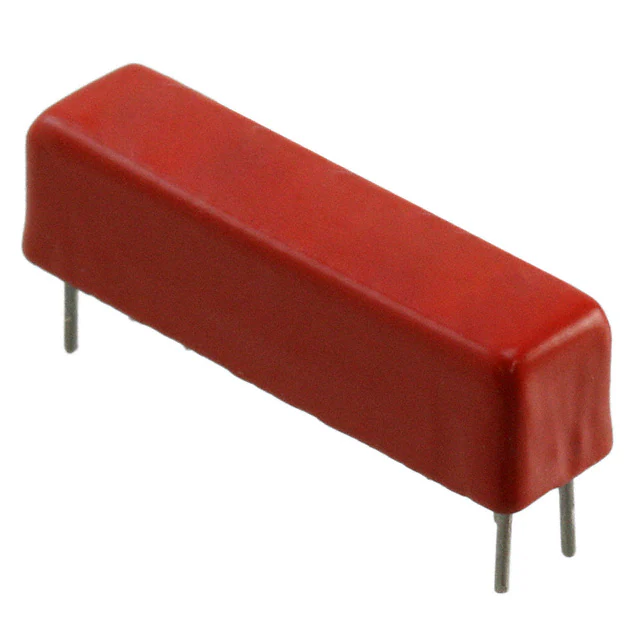

2274-05-021 RELAY REED SPST 500MA 5V Coto Technology	-	请求报价	数据表	2270	Tube	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	50 mA	Non Latching	-	PC Pin	Sealed - Hermetically	2.5 VDC	0.4 VDC	0.5 ms	0.1 ms	-20°C ~ 125°C	-
SIL12-1A31-71M RELAY REED SPST 2A 12V Standex-Meder Electronics	-	请求报价	数据表	SIL	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	2 A	500VAC, 500VDC - Max	24 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	1.2 ms	1 ms	-20°C ~ 55°C	-
DIP05-1C90-51F RELAY REED SPDT 250MA 5V Standex-Meder Electronics	-	请求报价	数据表	DIP	Tube	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	175VAC, 175VDC - Max	25 mA	Non Latching	Diode	PC Pin	-	3.5 VDC	0.75 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C	-
3520-05-911 RELAY REED DPST 1A 5V Coto Technology	-	请求报价	数据表	3500	Tube	Obsolete	Through Hole	5VDC	DPST-NO (2 Form A)	1 A	500VAC, 500VDC - Max	25 mA	Non Latching	Electrostatic Shield	PC Pin	-	3.8 VDC	0.4 VDC	2 ms	1 ms	-20°C ~ 85°C	-
HE721R1200 RELAY REED SPDT 250MA 12V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	175VDC - Max	24 mA	Non Latching	-	PC Pin	-	8 VDC	1 VDC	3 ms	3 ms	-40°C ~ 85°C	-
HE721R2400 RELAY REED SPDT 250MA 24V Littelfuse Inc.	-	请求报价	数据表	HE700	Tube	Active	Through Hole	24VDC	SPDT (1 Form C)	250 mA	175VDC - Max	12 mA	Non Latching	-	PC Pin	-	16 VDC	2 VDC	3 ms	3 ms	-40°C ~ 85°C	-
9201-12-00TR RELAY REED SPST 500MA 12V Coto Technology	-	请求报价	数据表	9200	Tape & Reel (TR)	Active	Surface Mount	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	18.5 mA	Non Latching	-	Gull Wing	Sealed - Hermetically	9 VDC	1 VDC	0.4 ms	0.1 ms	-20°C ~ 85°C	-
1340-0251 RELAY REED HV CUSTOM Coto Technology	-	请求报价	数据表	-	Tray	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MRX24-1A71 REED RELAY SPST-NO 24V ATEX PLAS Standex-Meder Electronics	-	请求报价	数据表	MRX	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	4 mA	Non Latching	-	PC Pin	Sealed - Fully	18 VDC	3.5 VDC	0.5 ms	0.2 ms	-20°C ~ 85°C	-
H12-1A83 RELAY REED 3A 12V Standex-Meder Electronics	-	请求报价	数据表	H	Bag	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	52.2 mA	Non Latching	-	PC Pin	-	8.4 VDC	1 VDC	3 ms	1.5 ms	-20°C ~ 70°C	-

共1567条记录«上一页 1... 72 73 74 757677 78 79 下一页»
