射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST0227-41-501-ARF ANTENNA EXTERNAL WI-FI DUAL-B |
101 | - |
|
数据表 |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Flat Bar | 2 | - | -10dB | 3dBi, 2dBi | 2 W | Cable - 1m | RP-SMA | - | - | - | Connector Mount | 0.276" (7.00mm) | Wi-Fi |
|
|
AEACBA045015-SG2RF ANT 1575MHZ/1602MHZ PUCK SMA |
993 | - |
|
数据表 |
AEAC | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Puck | 1 | 1.5 | - | 5dBi | - | Cable - 3m, LNA, Filter | SMA | - | - | - | Adhesive | 0.598" (15.20mm) | GLONASS, GNSS, GPS |
|
PA.700.ARF ANT 700MHZ/850MHZ CHIP SLD |
900 | - |
|
数据表 |
Viking | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 6 | 3 | - | 2dBi, 1.4dBi, 0.9dBi, 3.7dBi, 3.9dBi, 4.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
|
ST0428-31-001-ARF ANTENNA STICK SMA PLUG WIDE B |
234 | - |
|
数据表 |
- | Bag | Active | Cellular | Wide Band | 825MHz, 1.94GHz, 2.5GHz, 3.55GHz, 5.55GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | Whip, Straight | 5 | - | -10dB, -8dB, -7dB | 3.7dBi, 4dBi, 3.8dBi, 2.8dBi, 6.1dBi | 1 W | - | SMA | - | - | - | Connector Mount | 5.256" (133.50mm) | 5G |
|
|
L000619-03ANTENNA LTE HDP ADHESIVE BK 3M S |
934 | - |
|
数据表 |
- | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.581GHz, 1.955GHz, 2.35GHz, 2.442GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.965GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.7GHz, 3.55GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4. | Flat Bar | 12 | 1.2, 1.3, 1.4, 1.5, 1.6, 1.9, 2.1, 2.4 | - | 3.7dBi, 3.8dBi, 2dBi, 3.1dBi, 6.2dBi, 3.9dBi, 4.5dBi, 4.3dBi, 5.2dBi, 4.9dBi, 3.6dBi, -1.9dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.320" (8.12mm) | 5G, CBRS, IoT, ISM, GNSS, GPS, LTE, Wi-Fi, UMTS |
|
|
YECW000N1AANTENNA |
287 | - |
|
数据表 |
- | Retail Package | Active | Cellular | Wide Band | 460MHz, 830MHz, 2.2GHz | 450MHz ~ 470MHz, 700MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 3 | - | - | - | - | Cable - 2m | SMA Male | - | - | - | Screw Mount | 1.398" (35.50mm) | 4G, LTE |
|
|
ANT8010JLC1B1516AANTENNA PATCH 1.6GHZ GPS/GLO |
890 | - |
|
数据表 |
8010 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2 | - | 3.62dBi, 3.71dBi | - | Cable - 100mm, LNA, Filter | I-PEX | - | - | - | - | 0.075" (1.90mm) | GLONASS, GPS |
|
|
DELTA47/SMAM/365G HINGED BLADE ANTENNA FOR 600- |
463 | - |
|
数据表 |
Delta 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM | Wide Band | 1.155GHz, 3.116GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.8GHz, 2GHz ~ 5.9GHz | Whip, Straight | 3 | - | - | 7.77dBi, 7.77dBi, 7.77dBi | 10 W | - | SMA Male | - | - | - | Direct Mount | 5.508" (139.90mm) | 2G, 3G, 4G, 5G, Bluetooth, GSM, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|
|
ST0457-20-501-ARF ANTENNA STICK RP-SMA PLUG WID |
499 | - |
|
数据表 |
- | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 3.55GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Whip, Right Angle | 4 | - | -5dB, -4dB, -3dB | 3.5dBi, 6.6dBi, 4.7dBi, 4.8dBi | 10 W | - | RP-SMA | - | - | - | Connector Mount | 2.815" (71.50mm) | 4G, LTE |
|
|
L000618-01ANTENNA LTE VDP ADHESIVE BK 1M S |
954 | - |
|
数据表 |
- | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.581GHz, 1.955GHz, 2.35GHz, 2.442GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.965GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.7GHz, 3.55GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4. | Flat Bar | 12 | 1.3, 1.4, 1.5, 1.6, 1.7, 2.2, 2.5 | - | 4.2dBi, 4.9dBi, 4.9dBi, 4.2dBi, 3.9dBi, 1.8dBi, 4.5dBi, 4.5dBi, 1.3dBi, 0dBi, -0.6dBi, -3.3dBi | 10 W | Cable - 1m | SMA Male | IP67 | - | - | Adhesive | 0.340" (8.64mm) | 5G, CBRS, IoT, ISM, GNSS, GPS, LTE, Wi-Fi, UMTS |
|
|
TI.33.A111410-430MHZ TERMINAL MOUNT ANTENN |
468 | - |
|
数据表 |
* | Bag | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 420MHz | 410MHz ~ 430MHz | Whip, Straight | 1 | - | - | -6.61dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 2.197" (55.80mm) | 4G, 5G, HSPA, HSPA+, LTE, WCDMA |
|
|
TI.34.A111450-470MHZ TERMINAL MOUNT ANTENN |
370 | - |
|
数据表 |
- | Bag | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | - | -5.40dB | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 2.197" (55.80mm) | 4G, 5G, HSPA, HSPA+, LTE, WCDMA |
|
|
ST0330-31-001-AIP67 WIDE BAND EXTERNAL RF ANTEN |
197 | - |
|
数据表 |
- | Box | Active | Cellular | Wide Band | 832MHz, 1.94GHz, 2.495GHz | 704MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Flat Bar | 3 | - | -10dB, -6dB | 3.8dBi, 4.5dBi, 3.2dBi | 1 W | Cable - 1m | SMA | IP67 | - | - | - | 0.311" (7.90mm) | 4G, IoT, LTE |
|
|
ST0230-31-001-AIP67 DUAL BAND EXTERNAL RF ANTEN |
193 | - |
|
数据表 |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Flat Bar | 2 | - | -10dB | 3.2dBi, 2dBi | 1 W | Cable - 1m | SMA | IP67 | - | - | - | 0.311" (7.90mm) | IoT, Wi-Fi |
|
|
HP24510.ADUAL FEED GNSS L1/L2 STACKED PAT |
187 | - |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.245GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.215GHz ~ 1.239GHz, 1.237GHz ~ 1.254GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 6 | - | - | 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
ST0457-20-001-ARF ANTENNA STICK SMA PLUG WIDE B |
245 | - |
|
数据表 |
- | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 3.55GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Whip, Right Angle | 4 | - | -5dB, -4dB, -3dB | 3.5dBi, 6.6dBi, 4.7dBi, 4.8dBi | 10 W | - | SMA | - | - | - | Connector Mount | 2.815" (71.50mm) | 4G, LTE |
|
|
L000795-15ANTENNA LTE VDP ADH BK 1.5M FAKR |
993 | - |
|
数据表 |
- | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.581GHz, 1.955GHz, 2.35GHz, 2.442GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.965GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.7GHz, 3.55GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4. | Flat Bar | 12 | 1.3, 1.4, 1.5, 1.6, 1.7, 2.2, 2.5 | - | 4.2dBi, 4.9dBi, 4.9dBi, 4.2dBi, 3.9dBi, 1.8dBi, 4.5dBi, 4.5dBi, 1.3dBi, 0dBi, -0.6dBi, -3.3dBi | 10 W | Cable - 1.5m | Fakra | IP67 | - | - | Adhesive | 0.340" (8.64mm) | 5G, CBRS, IoT, ISM, GNSS, GPS, LTE, Wi-Fi, UMTS |
|
|
TG.66.A113WWHITE WIDEBAND 600-6000MHZ 5G/4G |
137 | - |
|
数据表 |
- | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Right Angle | 8 | - | - | 1.9dBi, 2.6dBi, 2.4dBi, 2.8dBi, 4.2dBi, 4.4dBi, 4.8dBi, 2.7dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.768" (70.30mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
|
YCGA012AAGNSS L1/L5 PATCH ANTENNA, 38 MM |
947 | - |
|
数据表 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.18GHz, 1.59GHz | 1.17GHz ~ 1.19GHz, 1.55GHz ~ 1.61GHz | Ceramic Patch | 2 | - | - | - | - | - | - | - | - | - | - | 0.630" (16.00mm) | GNSS |
|

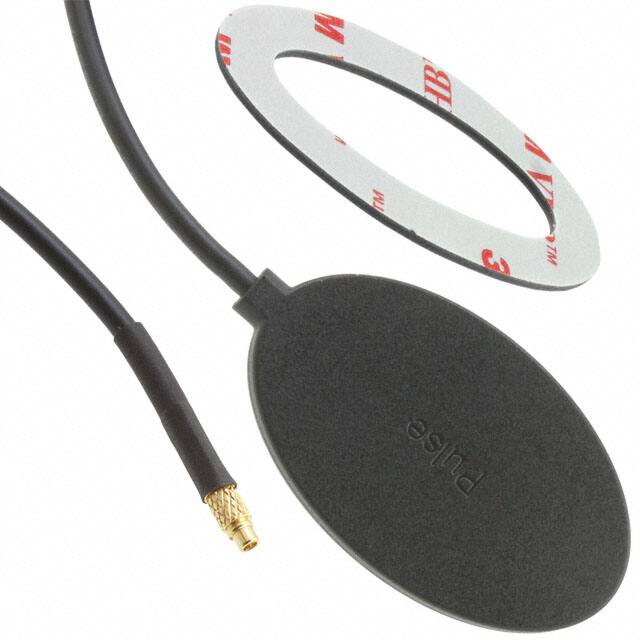

W4000D197RF ANT 1.575GHZ MODULE MMCX MALE |
134 | - |
|
数据表 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 1.5dBi | - | LNA | MMCX Male | - | - | - | Adhesive | 1.969" (50.00mm) | GPS |
