射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZK-C-0W03WI-FI ANT 2.4-5GHZ FLAT PATCH IP |
500 | - |
|
数据表 |
AQUARII | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 1.85, 1.9 | -10dB, -10dB | 1.85dBi, 5.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WLAN |
|
21199691005.8-8.5GHZ AUTO FLEXIBLE ANTENNA |
693 | - |
|
数据表 |
211996 | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 5.9GHz, 7GHz | 5.8GHz ~ 8.5GHz | Flat Patch | 2 | - | -10dB, -5dB | 5.5dBi, 6.4dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, UWB, Wi-Fi, Zigbee™ |
|
|
AN050201-01HRF ANT 433MHZ/868MHZ/5.8GHZ PCB |
233 | - |
|
数据表 |
AN050201 | Bulk | Active | General ISM, Lora | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 433.93MHz, 866.50MHz, 5.5375GHz | 433.05MHz ~ 434.8MHz, 863MHz ~ 870MHz, 5.15GHz ~ 5.925GHz | PCB Trace | 3 | 1.93, 2.62, 3.57 | -10dB, -7dB, -5dB | -1dBi, 0.6dBi, 3.8dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | IoT, ISM, LP-WAN, RFID, Smart Meters, WiFi 5 |
|
ANT-403-SPRF ANT 403MHZ CHIP SOLDER SMD |
1,815 | - |
|
数据表 |
Splatch® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 405MHz | Chip | 1 | 1.9 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | MICS |
|
|
RAC00915-BBULK 900MHZ ANTENNA |
200 | - |
|
数据表 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Stamped Metal | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|

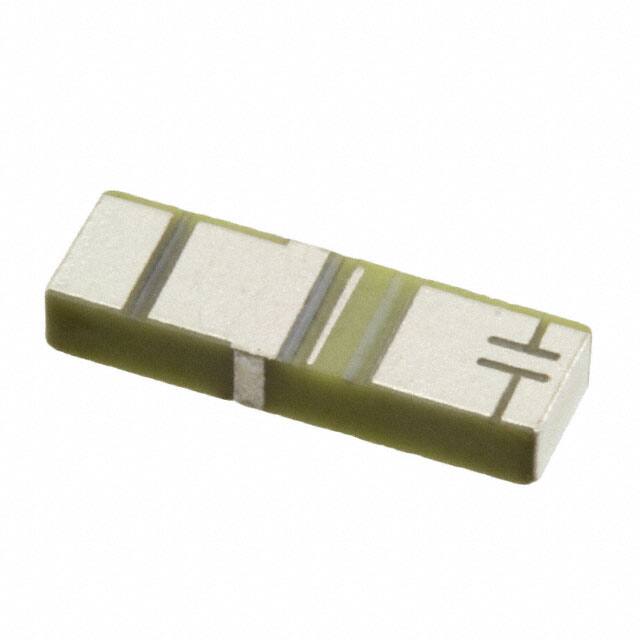

W3095RF ANT 1.575GHZ/1.602GHZ CHIP |
2,098 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz | 1.575GHz ~ 1.61GHz, 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.85GHz | Chip | 3 | 1.2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | GLONASS, GPS |
|
|
RAC02456-BBULK 2.4GHZ/5GHZ/6GHZ TRI-BAND A |
200 | - |
|
数据表 |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | - | Stamped Metal | 3 | - | - | - | - | - | - | - | - | - | - | - | - |
|
2118326-1RF ANT 5GHZ PCB TRACE U.FL ADH |
0 | - |
|
数据表 |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.875GHz | PCB Trace | 1 | 2.5 | - | 2.4dBi | 3 W | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Wi-Fi, WLAN |
|
|
ACG0502UUWB ANT 3.7GHZ- 4.2GHZ SMD CHIP |
2,972 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 3.95GHz | 3.7GHz ~ 4.2GHz | Chip | 1 | 2 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.039" (1.00mm) | UWB |
|
SATPC-24A33AC5-UWB2RF ANT 6250-8250MHZ UWB CABLE |
498 | - |
|
数据表 |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 7.25GHz | 6.25GHz ~ 8.25GHz | PCB Trace | 1 | 2 | - | 5.1dBi | - | Cable - 100mm | - | - | - | - | Surface Mount | 0.010" (0.25mm) | 802.11a/b/g/-c |
|
RFMTA280715IMAB301RF ANT 2.4GHZ STAMPED MET IPEX |
765 | - |
|
数据表 |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | 1 | 2 | -10dB | 2.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.142" (3.60mm) | ISM |
|
2195630-1COAXIAL CABLF,RP-SMA |
0 | - |
|
数据表 |
- | Box | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | -10dB | 2dBi | - | - | - | - | - | - | Connector Mount | 4.252" (108.00mm) | Wi-Fi |
|
1513431-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
13,237 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
A1001011AUTOMOTIVE GPS/GNSS ( ON/OFF GRO |
2,248 | - |
|
数据表 |
A | Tape & Reel (TR) | Active | General ISM, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 898MHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz | 868MHz ~ 928MHz, 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz | Chip | 5 | 1.5, 2.5 | - | 1dBi, 0.96dBi, 0.87dBi, 0.96dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
SZK-C-2G19GNSS ANT FLAT PATCH IPEX |
200 | - |
|
数据表 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | - | - | 2.79dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
2196110050WIFI 6E ANTENNA 50MM CABLE |
828 | - |
|
数据表 |
219611 | Bag | Active | 802.15.4, Bluetooth | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.67dBi, 3.67dBi, 4.12dBi | 2 W | Cable - 50mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Zigbee™ |
|
|
IBF-H040MPXB-W012ANT 2.4 FPC W. 120MM CABLE MHF1 |
1,999 | - |
|
数据表 |
H040 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 1.3 | -17.7dB | 3.1dBi | 1 W | Cable - 120mm | MHF, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, WiFi, ZigBee |
|
ATIFLTE-5717-80RF ANT 4G/LTE FLEX PCB 5717 80MM |
687 | - |
|
数据表 |
ATIFLTE | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 725MHz, 895MHz, 2.2GHz | 650MHz ~ 800MHz, 810MHz ~ 980MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 3 | 2.5 | - | 2dBi | - | Cable - 80mm | I-PEX | - | - | - | Adhesive | - | 4G, LTE |
|
ATIFLTE-3217RF ANT 4G/LTE FLEX PCB 3217 60MM |
279 | - |
|
数据表 |
ATIFLTE | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 725MHz, 895MHz, 2.2GHz | 650MHz ~ 800MHz, 810MHz ~ 980MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 3 | 2.5 | - | 2dBi | - | Cable - 60mm | I-PEX | - | - | - | Adhesive | - | 4G, LTE |
|
A5645HA5645H MICA 2.4 GHZ SMD HALOGEN |
91,894 | - |
|
数据表 |
Mica | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.8 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, ZigBee™ |
