射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2J4883P-300LL100-C20NRSTSPARROW 5GNR/4G/3G/2G ADHESIVE M |
89 | - |
|
数据表 |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.538GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 4 | 2, 2.2, 2.8 | -11.1dB, -9.9dB, -8.7dB, -8dB | 3.3dBi, 2dBi, 0.5dBi, 0.6dBi | 25 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 3.268" (83.00mm) | 2G, 3G, 4G, 5G, LTE |
|
2108848-1CERAMIC PATCH ANTENNA, SMD, L1+G |
9 | - |
|
数据表 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.233GHz, 1.5845GHz | 1.215GHz ~ 1.25GHz, 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.2 | - | 4.2dBic, 6dBic | - | - | - | - | - | - | Adhesive | 0.591" (15.00mm) | GNSS |
|
PE51RD10093DBI RBR DUCK 806-960MHZ SMA |
13 | - |
|
数据表 |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 910MHz | 860MHz ~ 960MHz | Blade, Tilt/Swivel | 1 | 2 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 8.620" (218.95mm) | LPWAN, LoRA, IoT, M2M, ISM |
|
|
PE51RD10022.4/4.9/5.8 GHz 3 dBi Multi-band |
73 | - |
|
数据表 |
- | Retail Package | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.125GHz, 5.7875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 2 | - | 3dBi, 3dBi, 3dBi | 50 W | - | RP-SMA | - | - | - | Connector Mount | 6.900" (175.26mm) | 802.11a/b/g/n/ac, Wi-Fi |
|
|
2J7683BMINI-SHAKER 5GNR/4G/3G/2G LOW-PR |
71 | - |
|
数据表 |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CVL-2400/5500-2J-BLK-36Covert/Slim WiFi 2.4/5 3dBi 10W |
26 | - |
|
数据表 |
CVL | Bulk | Active | WiFi | - | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz | Module | 2 | 2 | - | 3dBi | 10 W | Cable - 2.4m | SMA Male | IP69 | - | - | Chassis Mount | 0.280" (7.00mm) | Wi-Fi Surveillance |
|

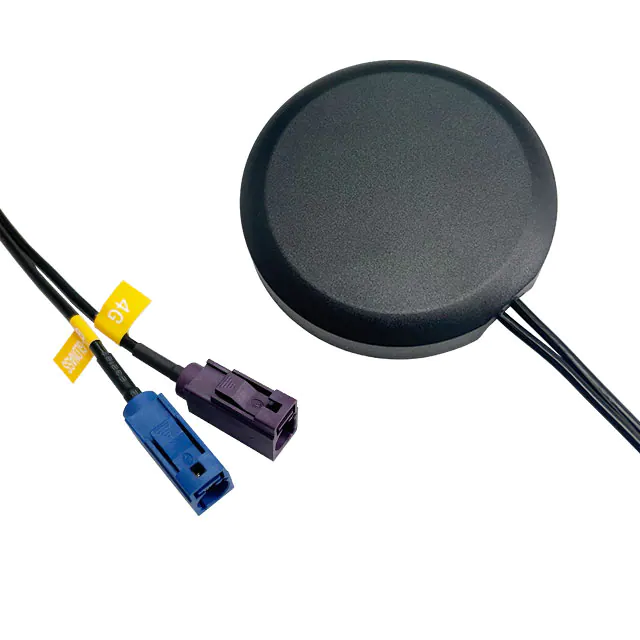

ATGGLTE80014M-CD2IN1 GNSS/4G ANTENNA FAKRA |
13 | - |
|
数据表 |
ATGGLTE | Bulk | Active | Cellular, Navigation | Wide Band | 855MHz, 1.575GHz, 1.602GHz, 2.2GHz | 750MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 4 | - | -10dB | 4dBic | - | Cable - 3m, LNA, Filter | Fakra (2) | IP67 | - | - | Magnetic | 0.551" (14.00mm) | 4G, GLONASS, GPS, LTE |
|
AN.GNSS.L1.PCB.01MASWELL HIGH PERFORMANCE GNSS PL |
23 | - |
|
数据表 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.56GHz ~ 1.602GHz | Flat Patch | 1 | 1.5 | - | 6dBic | - | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 3.071" (78.00mm) | Beidou, Gaileo, Glonass, GNSS, GPS |
|
2108847-1CERAMIC PATCH ANTENNA, SMD, L1+G |
86 | - |
|
数据表 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.233GHz, 1.5845GHz | 1.215GHz ~ 1.25GHz, 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.4 | - | 3.9dBic, 2.7dBic | - | - | - | - | - | - | Adhesive | 0.315" (8.00mm) | GNSS |
|
|
AN_5G_095-MAGNETMASWELL CELLULAR ANTENNA 5G 4G W |
28 | - |
|
数据表 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 780MHz, 3.86GHz | 600MHz ~ 960MHz, 1.71GHz ~ 6GHz | Dome | 2 | 2 | - | 6dBi | - | Cable - 1m | SMA | IP65 | - | - | Magnetic | 2.795" (71.00mm) | 4G, 5G, Wi-Fi |
|

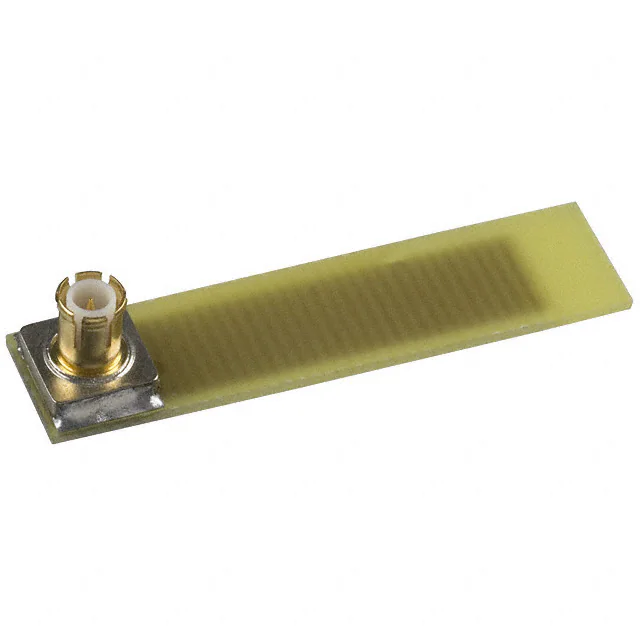

ANT001ANTENNA FOR CASIRA MODULE |
6 | - |
|
- |
- | Bulk | Discontinued at Digi-Key | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|
AEACBK050048-MW2RF ANT 2X DUALBAND WIFI MIMO SMA |
0 | - |
|
数据表 |
AEAC | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Dome | 2 | 2.5 | - | 2dBi | - | - | SMA Male (2) | - | - | - | Panel Mount | 1.889" (48.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
SATOA-81D81D14G-CMB6RF ANT 1572-1610MHZ COMBO SCREW |
86 | - |
|
数据表 |
- | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 1.591GHz, 1.94GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz | Module | 3 | 1.5, 3 | - | 2.5dBi, 2dBi, 2.5dBi | - | Cable - 2m, LNA | SMA Male (2) | - | - | - | Panel Mount | 0.575" (14.60mm) | 3G/4G, GLONASS, GPS, GSM, LTE |
|
SATOA-50A50A48A-CMB7RF ANT 1.575GHZ COMBO SCREW |
78 | - |
|
数据表 |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 830MHz, 1.575GHz, 2.205GHz | 700MHz ~ 960MHz, 1.57GHz ~ 1.58GHz, 1.71GHz ~ 2.7GHz | Dome | 3 | 1.5, 2 | - | 2dBi, 2dBi, 2dBi | - | LNA | SMA Male (2), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | GPS, GSM, Wi-Fi |
|
JCA236HIGH ACCURACY GNSS ACTIVE ANTENN |
17 | - |
|
数据表 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.561GHz ~ 1.602GHz | Module | 1 | 1.5, 2 | - | 5dBic | - | Cable - 3m, LNA | SMA | IP67 | - | - | Adhesive | 0.236" (6.00mm) | GNSS |
|
|
ATIGGBL2L52580-100ANT GPS L1+L2+L5/GLONASS/BEIDOU |
96 | - |
|
数据表 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.166GHz ~ 1.186GHz, 1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Ceramic Patch | 5 | 2 | - | -3dBi, 0dBi, 0dBi, 0.5dBi, 1.5dBi | - | Cable - 100mm, LNA | I-PEX(F) | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GPS |
|
318020708LORA FIBERGLASS ANTENNA KIT WITH |
26 | - |
|
- |
- | Bulk | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | 2.5 | - | 3dBi | - | - | N Type Male | - | - | - | Bracket Mount | 14.173" (360.00mm) | LoRa |
|
ANT-421-02GPRS/GSM ANTENNA |
25 | - |
|
数据表 |
- | Box | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | - | - | -0.9dBi, 1.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.354" (136.00mm) | GSM, GPRS |
|
|
PE51RD10032.4/4.9/5.8 GHz 3 dBi Multi-band |
18 | - |
|
数据表 |
- | Retail Package | Active | WiFi | Wide Band | 2.45GHz, 5.125GHz, 5.7875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 2 | - | 3dBi, 3dBi, 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.900" (175.26mm) | 802.11a/b/g/n/ac, Wi-Fi |
|
|
YOZ-52341ZZ-YM4G LTE FILM ANTENNA |
88 | - |
|
数据表 |
* | Tape & Box (TB) | Active | Cellular | Wide Band | 600MHz, 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Dipole Antenna | - | - | - | 2.51dBi | 2 W | Cable - 3m | SMA Male (1) | - | Automotive | - | Panel Mount | 0.035" (0.90mm) | 2G, 3G, 4G |
