射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRA6927M3PWN-001RF ANT 700/850MHZ DOME N FM 3.3" |
287 | - |
|
数据表 |
Phantom® | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.1GHz ~ 2.7GHz | Dome | 2 | 2.5, 2 | - | 0dBi, 1.7dBi, 2.9dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 3.300" (83.82mm) | GSM, LTE, WiMax™ |
|

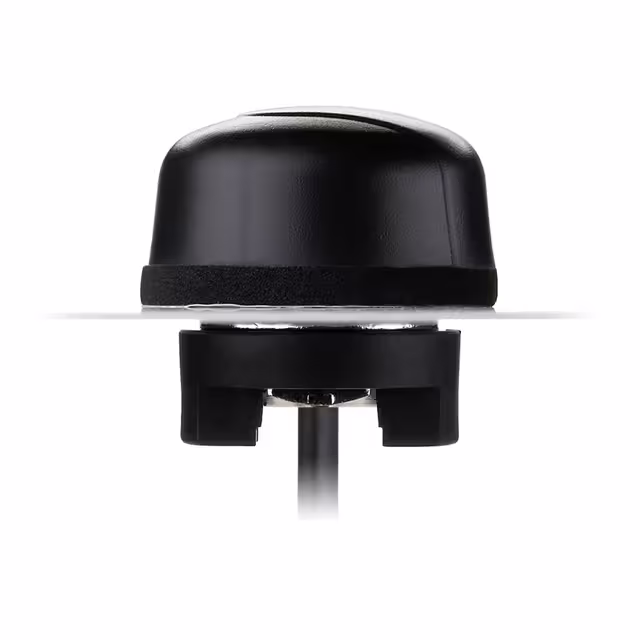

A.41.A.301111RF ANT 1.575/1.602GHZ DOM SMA 3M |
85 | - |
|
数据表 |
Hercules | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Dome | 2 | 2 | - | 28dB | - | - | SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | GLONASS, GPS |
|
OSCAR40/10M/LL/SMAM/S/S/33RF ANT 880MHZ/2.2GHZ WHIP STR |
682 | - |
|
数据表 |
OSCAR 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | - | 433MHz ~ 5.8GHz | Whip, Straight | 2 | 1.5 | - | 5.5dBi | - | - | SMA Male | - | - | - | Pole Mount, Wall Mount | 9.449" (240.00mm) | 802.11n/ac/ax, Bluetooth, LoRa, NB-IOT, Wi-Fi, WLAN, Sigfox, Zigbee™ |
|
ANN-MB-02RF ANT GNSS/GPS 1.197-1.249GHZ |
261 | - |
|
数据表 |
ANN-MB | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.223GHz, 1.582GHz | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz | Module | 2 | 2 | - | 28dB | - | Cable - 5m, LNA | MCX | - | - | - | Magnetic | 0.886" (22.50mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

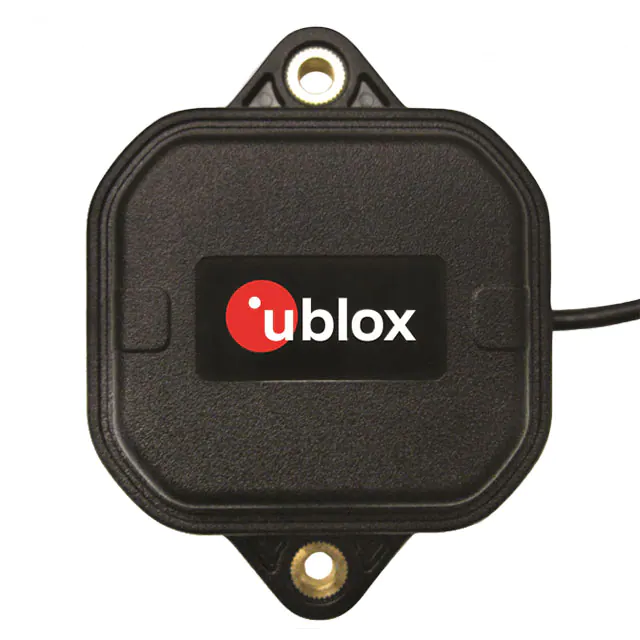

ANN-MB1-00MULTI-BAND GNSS ANTENNA, L1/L5 |
121 | - |
|
数据表 |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.5825GHz | 1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.606GHz | Module | 2 | 2 | - | 1.3dBic, 3.8dBic | - | Cable - 5m, LNA | SMA | IP67 | - | - | Screw Mount | 0.886" (22.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
ANN-MB-01RF ANT GNSS/GPS 1.197-1.249GHZ |
76 | - |
|
数据表 |
ANN-MB | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.223GHz, 1.582GHz | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz | Module | 2 | 2 | - | 28dB | - | Cable - 5m, LNA | SMB | - | - | - | Magnetic | 0.886" (22.50mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
BOA24008NMRF ANT 2.4-2.5GHZ OMNI NM |
42 | - |
|
数据表 |
BOA | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dipole Antenna | 1 | 1.5 | 14dB | 8dBi | 40 W | - | N Type Male | IP67 | - | - | Connector Mount, Pole Mount | 19.094" (485.00mm) | Bluetooth, Wi-Fi |
|
TRA6927M3PBN-001RF ANT 700/850MHZ DOME N FM 3.3" |
281 | - |
|
数据表 |
Phantom® | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.1GHz ~ 2.7GHz | Dome | 2 | 2.5, 2 | - | 0dBi, 1.7dBi, 2.9dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 3.300" (83.82mm) | GSM, LTE, WiMax™ |
|
SG101N-915RF ANT 915MHZ WHIP STR N CONN |
128 | - |
|
数据表 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | N Type | - | - | - | Bracket Mount | - | - |
|
MA220.LB.001RF ANT 700MHZ/800MHZ MOD SMA ADH |
291 | - |
|
数据表 |
Optimus | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz | Module | 11 | 1.92 | -5dB | -1.54dBi, -0.53dBi, -0.53dBi, -1.07dBi, 3dBic, -0.1dBi, 0.72dBi, 0.89dBi, -2.4dBi, -1.59dBi | 5 W | Cable - 3m, LNA | SMA Male (2) | IP67 | - | - | Adhesive | 0.472" (12.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
|
YEMN017AA5G COMBO ANTENNA |
165 | - |
|
数据表 |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 650MHz, 755MHz, 890MHz, 1.47GHz, 1.935GHz, 2.35GHz, 2.45GHz, 2.595GHz, 3.75GHz, 4.7GHz, 5.5GHz | 600MHz ~ 700MHz, 700MHz ~ 810MHz, 820MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.217GHz ~ 1.238GHz, 1.42GHz ~ 1.52GHz, 1.559GHz ~ 1.606GHz, 1.7GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GH | Dome | 14 | 4.1, 5.7, 12.1 | -1.4dB , -3.1dB , -4.3dB | -0.5dBi , 0.6dBi , 1dBi , 2.6dBi , 2dBi , 2.1dBi , 2.3dBi , 2.3dBi , 3dBi , 4.7dBi , 5.1dBi , 5.2dBi , 5.3dBi | - | Cable - 300mm, LNA | SMA Male | IP67, IP69K | - | - | Screw | 1.673" (42.50mm) | 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
TRA24003PRF ANT 2.4GHZ DOME N FEM PAN MT |
153 | - |
|
数据表 |
Phantom® | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.300" (58.42mm) | GSM, Wi-Fi |
|

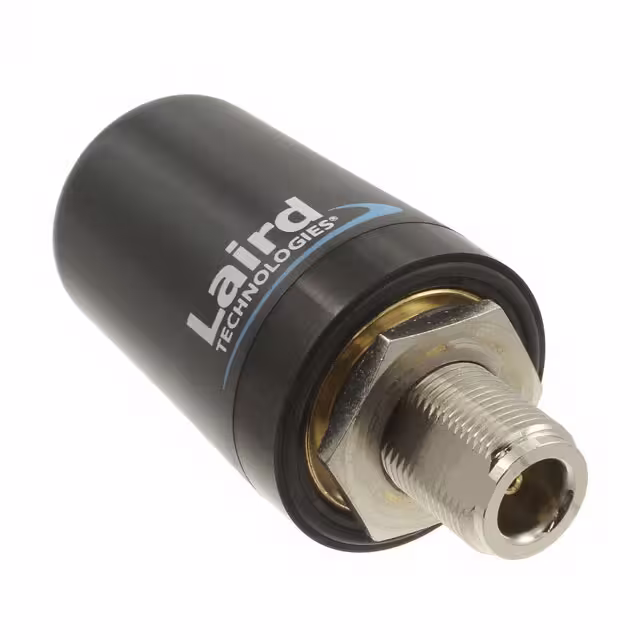

TRAB24003PRF ANT 2.4GHZ DOME N FM PAN 2.7" |
68 | - |
|
数据表 |
Phantom® | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM, Wi-Fi |
|
NMO150/450/758SFANTENNA TRIBAND 150/450/758MHZ |
180 | - |
|
数据表 |
- | Bag | Active | Cellular | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 162MHz, 475MHz, 810MHz | 150MHz ~ 174MHz, 430MHz ~ 520MHz, 750MHz ~ 870MHz | Whip, Straight | 3 | 2, 2.5, 2 | - | 5dBi, 4dBi | - | - | NMO | IP67 | - | - | Connector Mount | 17.470" (443.70mm) | - |
|
TLS.01.305111RF ANT 829MHZ/1.575GHZ WHIP STR |
505 | - |
|
数据表 |
Shockwave | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | -10dB | 4.6dB | 100 W | - | SMA Male | IP69K | - | - | Panel Mount | 3.150" (80.00mm) | GPS, LTE |
|
TRAB24003NPRF ANT 2.4GHZ DOME N FM PAN 2.7" |
164 | - |
|
数据表 |
Phantom® | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.300" (58.42mm) | GSM, Wi-Fi |
|
TRAB8903NPRF ANT 900MHZ DOME N FEM PAN MT |
30 | - |
|
数据表 |
Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 900MHz | 890MHz ~ 960MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM |
|
|
ADFGP.50A.07.0100CGNSS DUAL STACKED PATCH ANTENNA, |
131 | - |
|
数据表 |
- | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.23GHz, 1.56GHz, 1.58GHz, 1.6GHz | - | Ceramic Patch | 5 | 2 | - | 0.7dBi, 1.6dBi, 2.4dBi, 3.4dBi, 3.2dBi | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.661" (16.80mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GPSNMO02BLACK GPS NMO, 1575.4 MHZ |
41 | - |
|
数据表 |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | 2 | - | 5dBi, 28dBi | - | - | - | - | - | - | Connector Mount | 1.300" (33.02mm) | GPS |
|

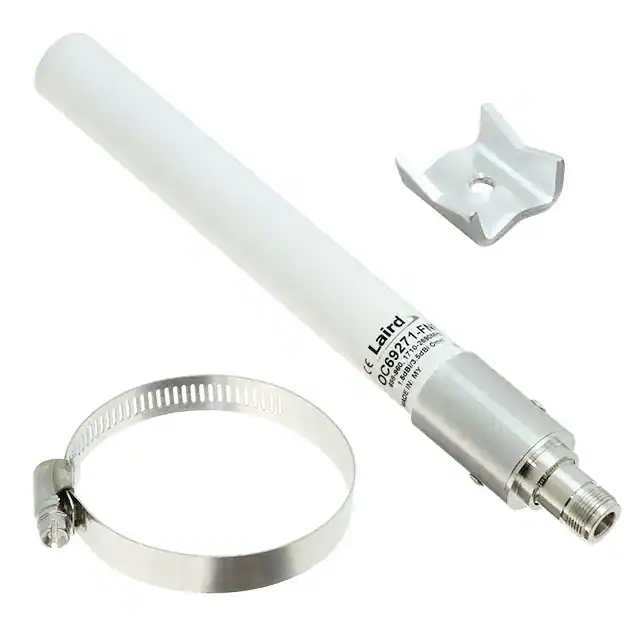

OC69271-FNFANT BROADBAND LTE OMNI |
117 | - |
|
数据表 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.85GHz, 2.045GHz, 2.3GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.1GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz | Whip, Straight | 5 | 2, 2.5 | - | 1.5dBi, 3.5dBi | 10 W | - | N Type Female | - | - | - | Bracket Mount | 9.764" (248.00mm) | 3G, 4G, GSM, LTE, WiMax™ |
