射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6720005236WI-ANT-900MHZ-7DB OMNI NF |
3 | - |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LP925BSM3F925 MHZ OMNI EDGE SLOT ANTENNA |
20 | - |
|
数据表 |
- | Box | Active | - | - | 925MHz | 890MHz ~ 960MHz | - | 1 | 2 | - | 2.5dBi | 25 W | - | SMA Male | - | - | - | Adhesive | - | - |
|
151-4HHEAVY DUTY YAGI 151 MHZ ANTENNA |
25 | - |
|
数据表 |
- | Box | Active | - | VHF (f < 300MHz) | 151MHz | 147MHz ~ 155MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 150 W | Cable - 610mm | N Type Female | - | - | - | Rear Mount | - | - |
|
928-6YAGI 928 MHZ ANTENNA |
25 | - |
|
数据表 |
- | Box | Active | - | - | 928MHz | 896MHz ~ 960MHz | Yagi, 6-Element | 1 | 1.2 | - | 9dBi | 50 W | Cable - 580mm | N Type Female | - | - | - | Rear Mount | - | - |
|
|
170-00006REFLECTOR 3FT HDDA5W-32-XX |
2 | - |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
155-4HHEAVY DUTY YAGI 155 MHZ ANTENNA |
19 | - |
|
数据表 |
- | Box | Active | - | VHF (f < 300MHz) | 155MHz | 152MHz ~ 158MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 150 W | Cable - 610mm | N Type Female | - | - | - | Rear Mount | - | - |
|
|
141-4HHEAVY DUTY YAGI 141 MHZ ANTENNA |
25 | - |
|
数据表 |
- | Box | Active | - | VHF (f < 300MHz) | 141MHz | 138MHz ~ 144MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 150 W | Cable - 610mm | N Type Female | - | - | - | Rear Mount | - | - |
|
PE51OM10407 DBI OMNI 698-960MHZ N(F) |
16 | - |
|
数据表 |
- | Bag | Active | Cellular, Navigation | Wide Band | 788.5MHz, 2.755GHz | 617MHz ~ 960MHz, 1.71GHz ~ 3.8GHz | Whip, Straight | 2 | 2, 2.5 | - | 6dBi, 7dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 19.600" (497.84mm) | 5G, LTE |
|
|
LP2450BRPSM1F2450 MHZ DISC ANTENNA |
20 | - |
|
数据表 |
- | Box | Active | - | - | 2.45GHz | 2.375GHz ~ 2.5GHz | - | 1 | 2 | - | 2.5dBi | 25 W | - | SMA Male | - | - | - | Adhesive | - | - |
|
|
JCE605NR4WMGNSS+NR MIMO4+V2X MIMO ANTENNA W |
2 | - |
|
数据表 |
- | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 2.2GHz, 3.35GHz, 5.9GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 2.9GHz ~ 3.8GHz, 5.85GHz ~ 5.95GHz | Module | 4 | 2, 2.5, 3 | - | 4dBi, 4dBi, 4dBi, 4dBi | - | LNA | Fakra | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | 5G, Beidou, Galileo, GLONASS, GNSS, GPS, V2X |
|
P24062437 MHZ DIRECTIONAL ANTENNA |
15 | - |
|
数据表 |
- | Box | Active | - | - | 2.4375GHz | 2.375GHz ~ 2.5GHz | - | 1 | 1.5 | - | 6dBi | 200 W | - | N Type Female | - | - | - | Mast Mount | - | - |
|
915-15MKYAGI 915 MHZ ANT MOUNT KIT |
25 | - |
|
数据表 |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | - | - | - |
|
|
M1621HCT-LP-SM/IRIDIUM SFX HOLE MOUNT LOW-PROFI |
17 | - |
|
数据表 |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 2 | - | 2.5dBic | - | - | TNC Female | IP66 | - | - | Through Hole | 1.496" (38.00mm) | General Purpose |
|
PE51OM1038ANT 3.3-3.8 GHZ OMNI, 12 DBI, N |
7 | - |
|
数据表 |
- | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 700MHz, 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 2.7GHz | Whip, Straight | 8 | 1.7 | - | 6dBi, 8dBi | 100 W | Cable - 300mm | - | - | - | - | Pole Mount | - | - |
|
1367120000IE-ANT-O-AH-360-5-NF |
0 | - |
|
- |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5125GHz | 5.15GHz ~ 5.875GHz | Whip, Straight | 1 | - | - | 5dBi | 6 W | - | N Type Female | IP64 | - | - | Bracket Mount | 6.299" (160.00mm) | WLAN |
|

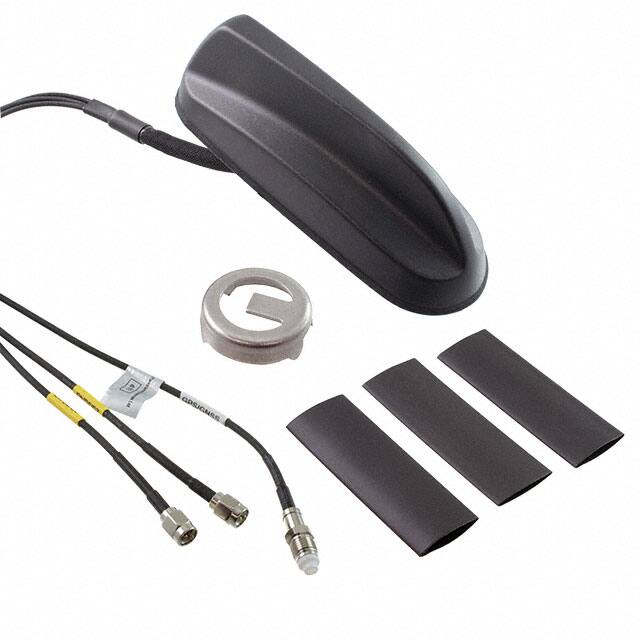

2332157-2MULTI FUNCTION MIMO ANTENNA 2G/3 |
0 | - |
|
数据表 |
- | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.587GHz, 1.94GHz, 3.15GHz | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 3.8GHz | Dome | 4 | 2 | - | 2dBi, 5dBi | 25 W | Cable - 300mm, LNA | FME, SMA | IP66 | - | - | Panel Mount | 1.969" (50.00mm) | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
|
ADP2400SBFRBM2400 MHZ OMNI SPRING BASE ANT |
15 | - |
|
数据表 |
- | Box | Active | - | - | 2.43GHz | 2.35GHz ~ 2.5GHz | - | 1 | 2 | - | 2.5dBi | - | - | BNC Male | - | - | - | Connector Mount | - | - |
|
928-4L2RPTM25F-MKYAGI 928 MHZ ANT MOUNT KIT |
25 | - |
|
数据表 |
- | Box | Active | - | - | 928MHz | 896MHz ~ 960MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 50 W | Cable - 7.62m | TNC Male | - | - | - | - | - | - |
|
ADP3400FXFRTF3400 MHZ PORTABLE OMNI ANTENNA |
15 | - |
|
数据表 |
- | Box | Active | - | - | 3.4GHz | 3.2GHz ~ 3.6GHz | - | 1 | 2 | - | 2.5dBi | - | - | TNC Female | - | - | - | Connector Mount | - | - |
|
H2430WLPTM11I2430 MHZ HEMI PATCH ANTENNA |
10 | - |
|
数据表 |
- | Box | Active | - | - | 2.43GHz | 2.35GHz ~ 2.5GHz | - | 1 | 2 | - | 6dBi | 25 W | - | TNC Male | - | - | - | Panel Mount | 0.620" (15.75mm) | - |
