射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN112-10ELNFWR112 GAIN HRN 7.05-10GHZ 10DBI |
7 | - |
|
数据表 |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | General Purpose |
|
|
PE9852B-10WR-42 Waveguide Standard Gain Ho |
6 | - |
|
数据表 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
|
|
PEWAN112-10SFWR112 GAIN HRN 7.05-10GHZ 10DBI |
2 | - |
|
数据表 |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | General Purpose |
|
|
PEWAN137-10NFWR137 GAIN HRN 5.85-8.2GHZ 10DBI |
5 | - |
|
数据表 |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 1.673" (42.50mm) | General Purpose |
|

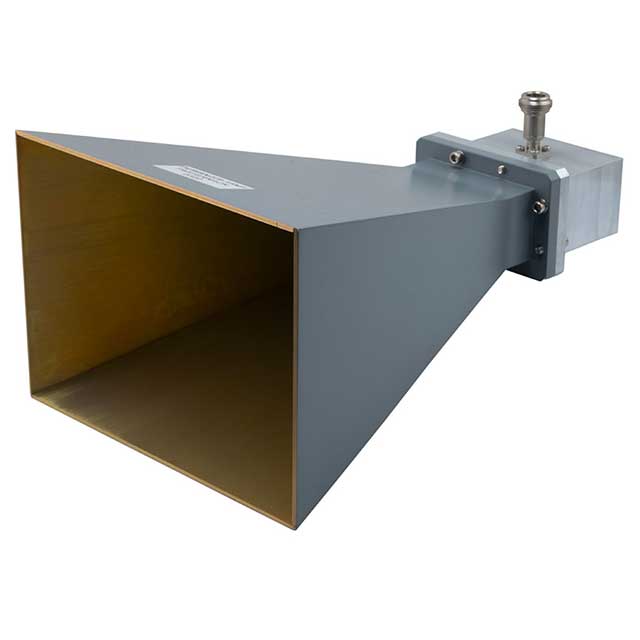

PEWAN229-15NFWR229 GAIN HRN 3.3-4.9GHZ 15DBI |
3 | - |
|
数据表 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 9.975" (253.37mm) | - |
|
PEWAN187-10NFWR187 GAIN HORN 3.95-5.85GHZ 10D |
8 | - |
|
数据表 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 5.266" (133.76mm) | - |
|
|
PE9855B-10WR-75 Waveguide Standard Gain Ho |
7 | - |
|
数据表 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.490" (37.85mm) | General Purpose |
|
|
PEWAN159-10SFWR159 GAIN HRN 4.9-7.05GHZ 10DBI |
4 | - |
|
数据表 |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.940" (49.28mm) | General Purpose |
|
|
PE9855B-20WR-75 Standard Waveguide Horn Wi |
11 | - |
|
数据表 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 8.000" (203.20mm) | General Purpose |
|
|
PEWAN112-10NFWR112 GAIN HRN 7.05-10GHZ 10DBI |
4 | - |
|
数据表 |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | General Purpose |
|
PEWAN042-20WR42 GAIN HORN 18-26.5GHZ 20DBI |
13 | - |
|
数据表 |
- | Bulk | Active | Waveguide | K Band (18GHz ~ 27GHz) | 22.6GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN137-15NFWR137 GAIN HRN 5.85-8.2GHZ 15DBI |
4 | - |
|
数据表 |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 2.669" (67.80mm) | General Purpose |
|
|
PEWAN137-15SFWR137 GAIN HRN 5.85-8.2GHZ 15DBI |
4 | - |
|
数据表 |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 2.669" (67.80mm) | General Purpose |
|
|
PEWAN075-15ELNFWR75 GAIN HRN 10-15GHZ 15DBI |
2 | - |
|
数据表 |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.122" (28.50mm) | General Purpose |
|

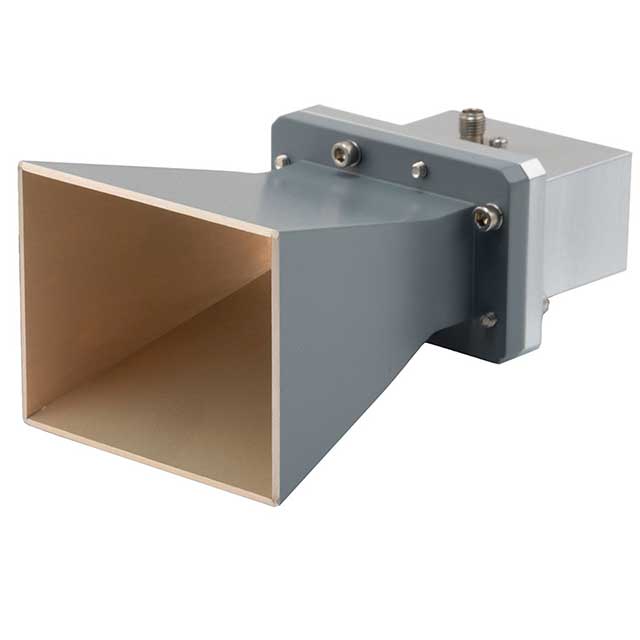

PEWAN187-10SFWR187 GAIN HORN 3.95-5.85GHZ 10D |
8 | - |
|
数据表 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 5.206" (132.23mm) | - |
|
|
PEWAN159-15SFWR159 GAIN HRN 4.9-7.05GHZ 15DBI |
3 | - |
|
数据表 |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.101" (78.77mm) | General Purpose |
|
|
PE9860B-10WR-159 Waveguide Standard Gain H |
12 | - |
|
数据表 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 4.990" (126.75mm) | General Purpose |
|
PEWAN187-15NFWR187 GAIN HORN 3.95-5.85GHZ 15D |
8 | - |
|
数据表 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 8.258" (209.75mm) | - |
|
|
PEWAN112-15SFWR112 GAIN HRN 7.05-10GHZ 15DBI |
2 | - |
|
数据表 |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.188" (55.58mm) | General Purpose |
|
PEWAN062-20WR62 GAIN HORN 12.4-18GHZ 20DBI |
22 | - |
|
数据表 |
- | Bulk | Active | Waveguide | Ku Band (12GHz ~ 18GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
