射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y80612RF ANT 851MHZ YAGI N FEM BRKT MT |
0 | - |
|
数据表 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Yagi, 12-Element | 1 | 1.5 | - | 11dBd | - | - | N Type Female | - | - | - | Bracket Mount | 49.000" (124.46cm) | - |
|
VHP69273W22G-518ARF ANT 829MHZ/1.575GHZ DOME CAB |
1 | - |
|
数据表 |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 2.2GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 5 | 2, 1.5, 2 | - | 4.1dBi, 27dB, 5.9dBi, 6.2dBi, 6.5dBi | 50 W | Cable - 5.18m | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Panel Mount | 3.400" (86.36mm) | GPS, LTE, Wi-Fi |
|
BMY890K3025N1RF ANT 890-960MHZ 10 DBD 7 ELEM |
0 | - |
|
数据表 |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BMYD806K-DPRF ANT 838.5MHZ YAGI N TYP F POL |
1 | - |
|
数据表 |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 838.5MHz | 814MHz ~ 863MHz | Yagi, 7-Element | 1 | 1.5 | 14dB | 12dBi | 200 W | - | N Type Female | - | - | - | Pole Mount | 37.000" (939.80mm) | ISM, LoRa, LPWAN |
|
BWA-ANTKIT-002ANTENNA KIT OMNI 900 MHZ; 5 DBI |
0 | - |
|
数据表 |
BWA | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | - | - | 5dBi | - | - | RP-SMA Female, RP-SMA Male | - | - | - | - | - | General Purpose |
|
33-633500-01-01VERAPHASE 6300 GEODETIC ANTENNA |
1 | - |
|
数据表 |
VeraPhase® 6300 | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.584GHz | 1.164GHz ~ 1.254GHz, 1.559GHz ~ 1.610GHz | Dome | 2 | 1.5 | - | 3dB | - | - | TPI Female | IP67, IP68 | - | - | Panel Mount | 4.901" (124.50mm) | Beidou, Galileo, GLONASS, GPS |
|
PRO-IS-577ANT FLEX GSM/NB-IOT 100MM MHF |
0 | - |
|
数据表 |
Embedded Antenna | Bag | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -6dB | 5.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.005" (0.13mm) | GSM |
|
EMF2449A1-33UFLANT MINI NANOBLADE FLEX U.FL |
0 | - |
|
数据表 |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.2GHz, 5.3GHz, 5.5975GHz, 5.7875GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.25GHz, 5.25GHz ~ 5.35GHz, 5.47GHz ~ 5.725GHz, 5.725GHz ~ 5.85GHz | PCB Trace | 5 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | - | - | General Purpose |
|
YC0003BAYC0003BA |
0 | - |
|
数据表 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANTENNA GSM U.FL (PCB)ANTENNA GSM U.FL (PCB) |
7 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANTENNA-WIFI-BT-U.FLANTENNA-WIFI-BT-U.FL |
1 | - |
|
- |
- | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4415GHz | 2.4GHz ~ 2.483GHz | Whip, Straight | 1 | - | - | 3dBi | - | - | U.FL | - | - | - | Connector Mount | 3.937" (100.00mm) | Bluetooth, Wi-Fi |
|
|
MPA.257.AWI-FI TRI-BAND 2.4/5.8/7.125GHZ |
0 | - |
|
数据表 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 3 | - | - | 1.5dBi, 3.78dBi, 4.41dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.193" (4.90mm) | Wi-Fi |
|

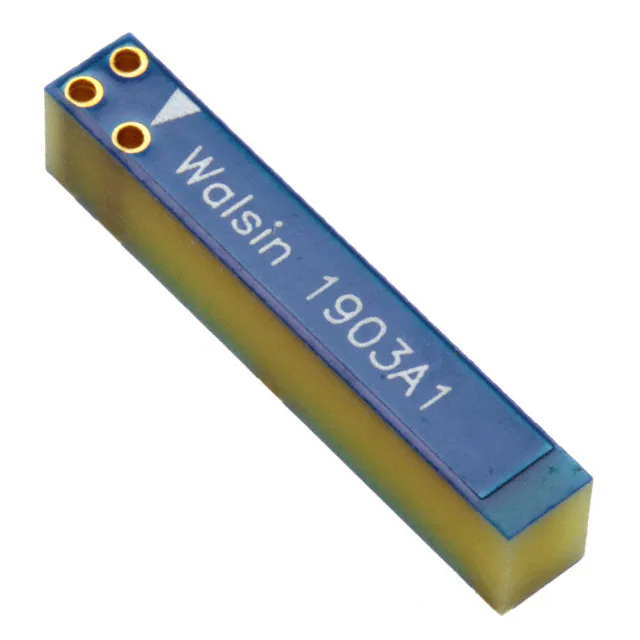

RGFRA1903041A1TRF ANT 2.4GHZ CHIP SOLDER SMD |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.150" (3.80mm) | - |
|
|
EBL2400R1-20MHF4EMBED,NBLUE,203MM,UFL 2.4-2.5GHZ |
0 | - |
|
数据表 |
NanoBlue | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 2dBi | - | Cable - 200mm | MHF4 | - | - | - | Surface Mount | 0.032" (0.81mm) | 802.11, Bluetooth |
|
|
RPA-PB2-G-001RF ANT 1.575/1.602GHZ CER PATCH |
0 | - |
|
数据表 |
RPA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
|
113070002EXTERNAL ANTENNA 868-915MHZ-2DBI |
0 | - |
|
数据表 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 891.5MHz | 868MHz ~ 915MHz | Whip, Tilt | 1 | - | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | LoRa |
|
|
SWA4359ANTENNA 860-930MHZ PFC PARALLEL |
0 | - |
|
- |
Dipole Antenna | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | PCB Trace | 2 | 3.5 | -5dB | 2.3dBi, 2.2dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | - | IoT, ISM, M2M |
|
|
SWA4389ANTENNA 860-930MHZ PFC PERP. |
0 | - |
|
- |
Dipole Antenna | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | PCB Trace | 2 | 3.5 | -5dB | 2.8dBi, 3dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | - | IoT, ISM, M2M |
|
|
RPC-W2-P-35-70-GRF ANT 2.4-2.5GHZ PCB TRC CAB 70 |
93 | - |
|
数据表 |
RPC | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 3 | - | 1.5dBi | - | Cable - 30mm | - | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
|
FXUB53.07.0150CWIDE BAND FLEX ANTENNA 600MHZ TO |
18 | - |
|
数据表 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Flat Patch | 8 | - | - | 1.28dBi, 2.81dBi, 2.54dBi, 3.24dBi, 4.23dBi, 4.89dBi, 7.18dBi, 6.12dBi | 2 W | Cable - 150mm | I-PEX MHFI (U.FL) | - | - | - | Adhesive | 0.009" (0.24mm) | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
