射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCANRBD1037868MHZ STRAIGHT ANTENNA SMA |
0 | - |
|
数据表 |
LCAN | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 865MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 2 | - | 1dBi | 10 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | IP65 | - | - | Connector Mount | 2.010" (51.05mm) | General Purpose |
|
|
MPAMB6PORTABLE OMNIDIRECTIONAL ANTENNA |
0 | - |
|
数据表 |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.205GHz, 3.6GHz, 5.425GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.95GHz | Whip, Tilt | 4 | 2.5, 2.75 | - | 2dBi, 3dBi, 4dBi, 4dBi | - | - | SMA Male | - | - | - | Connector Mount | 8.780" (223.00mm) | 2G, 3G, 4G, 5G, CBRS, LTE |
|
|
DELTA12D/X/SMAM/S/S/172.4GHZ 130MM FLEXY RUBBER 1/4 WA |
0 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LCANRBD1053650 TO 3310 MHZ, LTE WITH GPS/GN |
0 | - |
|
数据表 |
LCAN | Bulk | Active | Cellular, General ISM, WiFi | Wide Band | 1.98GHz | 650MHz ~ 3.31GHz | Whip, Straight | 1 | 3 | - | 1.3dBi | 10 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | IP65 | - | - | Connector Mount | 3.090" (78.48mm) | 4G, 5G, 802.11a/b/g/n/ax, IoT, ISM, LTE, Wi-Fi |
|
|
318020070RF ANT 2.4GHZ FLAT PATCH SMA ML |
0 | - |
|
- |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.45GHz | Flat Patch | 1 | 2 | - | 8dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 0.591" (15.00mm) | General Purpose |
|
SPDA24832DIPOLE - CENTER FED, 824 - 894 M |
0 | - |
|
数据表 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 859MHz | 824MHz ~ 894MHz | Whip, Straight | 1 | - | - | - | - | - | SMA | - | - | - | Connector Mount | 9.000" (228.60mm) | - |
|
|
2JW0124Z-C868BMACHETE 4GLTE/3G/2G WIDEBAND HIG |
0 | - |
|
数据表 |
2JW0124 | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 3 | 1.6, 2.2, 2.4 | -12.7dB, -8.5dB, -7.7dB | 0.4dBi, 2.6dBi, 1.3dBi | 25 W | - | RP-SMA Male, SMA Male | - | - | - | Connector Mount | 6.732" (171.00mm) | 2G, 3G, 4G, 5G, CDMA, DCS, EVDO, GPRS, GSM, HSPA, LTE, PCS, WCDMA | |
|
|
EXH155SMVRF ANT 155MHZ WHIP STR SMV CONN |
0 | - |
|
数据表 |
EXH | Bulk | Active | - | VHF (f < 300MHz) | 155MHz | 150MHz ~ 160MHz | Whip, Straight | 1 | 2 | - | - | 50 W | - | SMV | - | - | - | Connector Mount | 10.500" (266.70mm) | - |
|
|
EXH160SFKRF ANT 160MHZ WHIP STR SFK CONN |
0 | - |
|
数据表 |
EXH | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 155MHz ~ 165MHz | Whip, Straight | 1 | 2 | - | - | 50 W | - | SFK | - | - | - | Connector Mount | 10.500" (266.70mm) | - |
|
|
EXH160SFURF ANT 160MHZ WHIP STR SFU CONN |
0 | - |
|
数据表 |
EXH | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 155MHz ~ 165MHz | Whip, Straight | 1 | 2 | - | - | 50 W | - | SFU | - | - | - | Connector Mount | 10.500" (266.70mm) | - |
|
|
T6150AM-AGDPU-SRF ANT 850MHZ/900MHZ WHIP TILT |
0 | - |
|
数据表 |
- | Bulk | Discontinued at Digi-Key | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 5 | 2, 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.059" (179.30mm) | AMPS, DCS, GSM, PCS, UMTS |
|
ANT-IAB-4.9-1INDOOR ARTICULATING ANTENNA 4.9 |
0 | - |
|
数据表 |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Module | 1 | - | - | 4.9dBi | - | - | - | - | - | - | Connector Mount | 1.024" (26.00mm) | - |
|

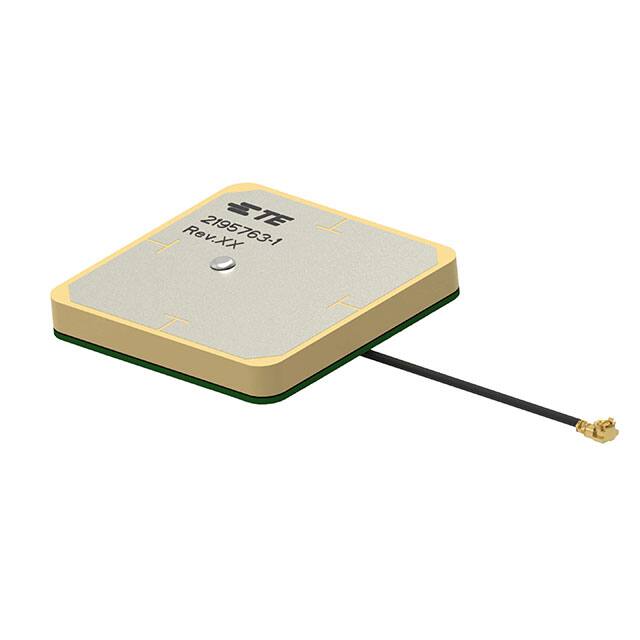

2195763-1RF ANT 1.5825GHZ CERAM PATCH ADH |
0 | - |
|
数据表 |
- | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | 3 | - | 26dBi | - | Cable - 70mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.354" (9.00mm) | GNSS |
|
FW.81.SMA.MRF ANT 135MHZ WHIP STR SMA MALE |
0 | - |
|
数据表 |
Meteor | Bag | Active | - | VHF (f < 300MHz) | 135MHz | - | Whip, Straight | 1 | - | - | 0dBi | 50 W | - | SMA Male | IP67 | - | - | Connector Mount | 13.898" (353.00mm) | - |
|
|
ANT1825JB01BGNL5AANTENNA PATCH GNSS+L5 |
0 | - |
|
数据表 |
1825 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 4 | 2 | -10dB | 2.58dBic, 1.8dBic, 2.5dBic, 1.86dBic | - | Cable - 100mm, LNA | I-PEX | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, GLONASS, GNSS, GPS |
|
|
ST0543-11-N05-UCERAMIC ANTENNA GPS 1164-1188 1 |
0 | - |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | - | -10dB | 3.3dBic, -2.4dBic, 3dBic, 4.2dBic | - | - | Pin | - | - | - | Connector Mount | 0.315" (8.00mm) | GNSS |
|
|
ST0543-11-N04-UCERAMIC ANTENNAGPS 1218-1236 15 |
0 | - |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.218GHz ~ 1.236GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | - | -10dB | 2.7dBi, 1.3dBi, 4.3dBi, 3.6dBi | - | - | Pin | - | - | - | Connector Mount | 0.315" (8.00mm) | GNSS |
|
|
MUF8103HEAVY DUTY LOW PROFILE BASE GAIN |
0 | - |
|
数据表 |
MUF | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | - | - | - | - | Base Mount | 15.500" (393.70mm) | - |
|
SPDA24850/1900DUAL BAND DIPOLE - CENTER FED, 8 |
0 | - |
|
数据表 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 859MHz, 1.92GHz | 824MHz ~ 894MHz, 1.85GHz ~ 1.99GHz | Blade, Tilt | 2 | 2 | - | 0dBi, 1.2dBi | 3 W | - | SMA | - | - | - | Connector Mount | 6.740" (171.20mm) | - |
|
|
2J3415M-433DART 433/SIGFOX/LORA/LPWA/RFID/I |
1 | - |
|
数据表 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 434MHz | 433MHz ~ 435MHz | Whip, Straight | 1 | 1.1 | -23.2dB | 2.1dBi | 50 W | Cable - 3m | SMA Male | - | - | - | Magnetic | 6.457" (164.00mm) | ISM, LoRa |
