射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3929B0100ANTENNA 0.617-3.9GHZ I-PEXMHF |
207 | - |
|
数据表 |
GEMINI | Bag | Active | - | Wide Band | 788.5MHz, 2.2GHz, 3.65GHz | 617MHz ~ 3.9GHz | PCB Trace | 3 | - | -6dB | 2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | General Purpose |
|
ANT-2.4-FPC-SAH100UFANT 2.4 FPC 12X8 100MM CBL UFL |
639 | - |
|
数据表 |
ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
AFAC110020-S698RF ANT 4G/LTE FLEX PRINTED |
1,765 | - |
|
数据表 |
AFAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, LTE |
|
1003468ANTENNA CERAMIC, 2.4GHZ 18X18X4 |
400 | - |
|
数据表 |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | Ceramic Patch | 1 | 2 | - | 3.83dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

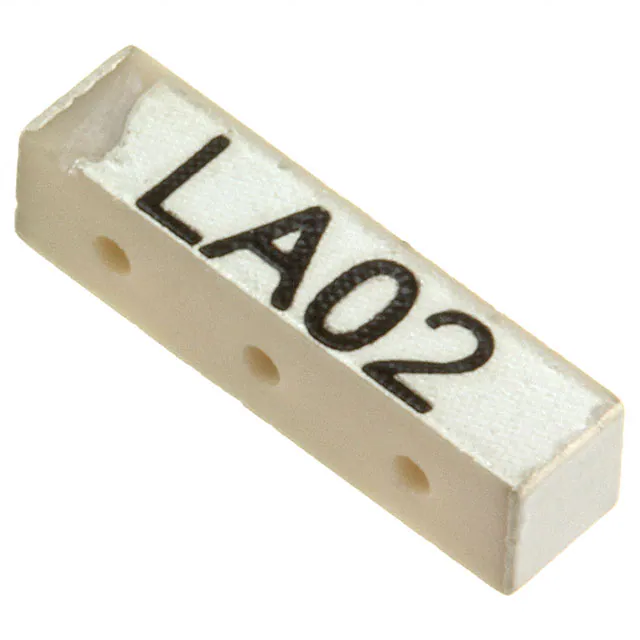

LA.02RF ANT 2.4GHZ CHIP SOLDER SMD |
11,311 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
HA.10.ARF ANT 169MHZ HELICAL SOLDER SMD |
148 | - |
|
数据表 |
- | Bag | Active | - | VHF (f < 300MHz) | 169MHz | - | Helical | 1 | - | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.004" (25.50mm) | - |
|
W6102B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
500 | - |
|
数据表 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 6dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W5100RF ANT 2.4GHZ FLAT PATCH SLDR |
5,187 | - |
|
数据表 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Flat Patch | 1 | 3 | - | 1dBi | - | - | Solder | - | - | - | Adhesive | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
|
PRO-OB-572ANT GSM/NB-IOT SMD |
1,406 | - |
|
数据表 |
Embedded Antenna | Tape & Reel (TR) | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | GSM, UMTS |
|
PA.11RF ANT 2.4GHZ CHIP SOLDER SMD |
9,400 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|
PA.12RF ANT 2.4GHZ CHIP SOLDER SMD |
4,251 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|
WDP.2458.25.4.B.02RF ANT 2.4/5.5GHZ CER PATCH PIN |
822 | - |
|
数据表 |
- | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -19dB, -5dB | 6dBi, 8dBi | 10 W | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN |
|
ANT-GFPCB1540-UFLRF ANT 830MHZ/2.25GHZ FLAT CAB |
255 | - |
|
数据表 |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.25GHz | 700MHz ~ 960MHz, 1.8GHz ~ 2.7GHz | Flat Patch | 2 | 2 | - | 5dBi | 1 W | Cable - 150mm | - | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
1462340100RF ANT 829MHZ/2.1GHZ FLAT 100MM |
929 | - |
|
数据表 |
146234 | Tray | Active | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.8dBi, 2.8dBi, 5.0dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
0600-00057RF ANT 2.4GHZ WHIP STR IPEX MHF |
171 | - |
|
数据表 |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | -10dB | 2dBi | 1 W | - | U.FL (UMCC), I-PEX MHF4 | - | - | - | Connector Mount | 4.094" (104.00mm) | - |
|
ANT-868-CW-RCSRF ANT 868MHZ WHIP RA RP-SMA MAL |
102 | - |
|
数据表 |
RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | 3.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
SG901-1066 ANTENNARF ANT 2.4GHZ PCB TRACE IPEX SMD |
13,075 | - |
|
数据表 |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.49GHz | PCB Trace | 1 | 2 | - | 3.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.087" (2.20mm) | - |
|
ACTPAT154-01-IPRF ANT 1.575GHZ CER PATCH CAB |
138 | - |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | -10dB | 0.5dBi | - | Cable - 63mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
W1037RF ANT 2.4GHZ WHIP TILT 6.5" |
336 | - |
|
数据表 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.819" (198.60mm) | Bluetooth, WLAN, Zigbee™ |
|
W5011RF ANT 2.4GHZ WHIP STR SMA MALE |
254 | - |
|
数据表 |
- | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 5.122" (130.09mm) | ZigBee™ |
