射频接收器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 频率 | 灵敏度 | 数据速率（最大值） | 调制或协议 | 应用 | 电流 - 接收 | 数据接口 | 存储容量 | 天线连接器 | 特性 | 电压 - 电源 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2235HRF RCVR GPS 1.575GHZ MODULE |
83 | - |
|
数据表 |
SiRFstarIV™ | Module | Tape & Reel (TR) | Obsolete | 1.575GHz | -163dBm | - | GPS | General Purpose | 56mA | SPI | - | On-Board, Patch | - | 3.3V | -40°C ~ 85°C | - | - | Surface Mount | Module |
|
AD6650BBCZIC RECEIVER GSM/EDGE 121-BGA |
76 | - |
|
数据表 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RXM-GPS-F4-TRF RCVR GPS 1575.42MHZ MODULE |
8 | - |
|
数据表 |
F4 | 20-SMD Module | Tape & Reel (TR) | Obsolete | 1575.42MHz | -159.5dBm | - | GPS | Fleet Management, Location, Navigation, Tracking | 27.5mA | UART | - | PCB, Surface Mount | - | 1.71V ~ 1.89V | -30°C ~ 85°C | - | - | Surface Mount | Module |
|
WA-RX-03SRF RX MODULE ISM 863 MHZ |
3 | - |
|
数据表 |
- | - | Bulk | Active | 863MHz | -92dBm | - | FM | Audio | 45mA | - | - | - | 15ch Multichannel Audio Modules | 3V ~ 5V | 0°C ~ 50°C | - | - | Through Hole | - |
|

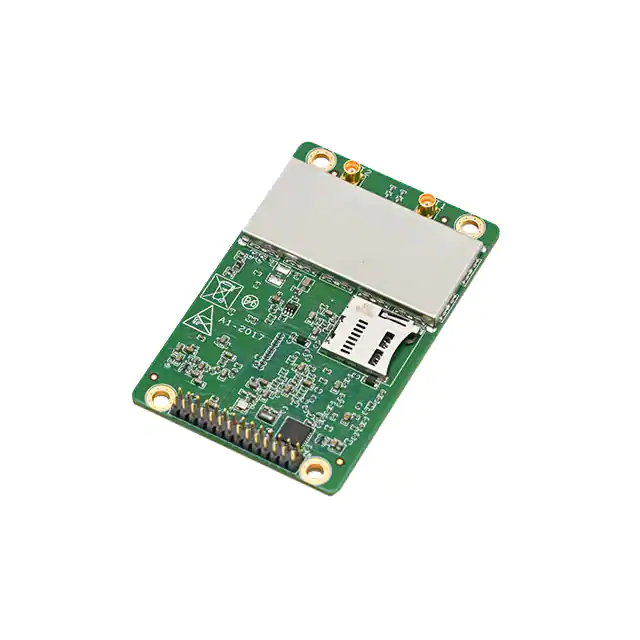

C1-8SC1-8S HIGH PRECISION GNSS RTK |
13 | - |
|
数据表 |
C1 | Module | Box | Active | - | - | - | Galileo, GLONASS, GNSS, GPS | - | - | I2C, UART | - | - | - | 3.25V ~ 3.45V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|

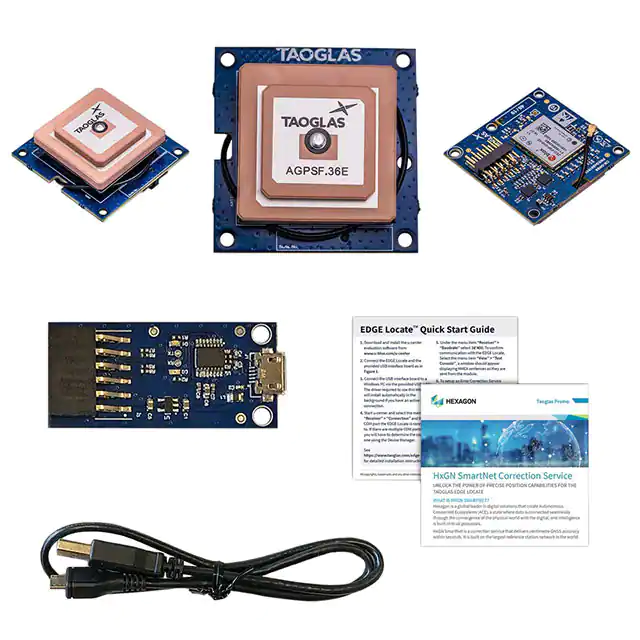

EL.1AEDGE LOCATE GNSS RTK BOARD |
0 | - |
|
数据表 |
EDGE Locate™ | Module | Bulk | Obsolete | - | - | 921.6kbps | BeiDou, Galileo, GLONASS, GNSS, GPS | General Purpose | - | SPI, UART | - | On-Board, Patch | - | - | - | - | - | - | - |
|

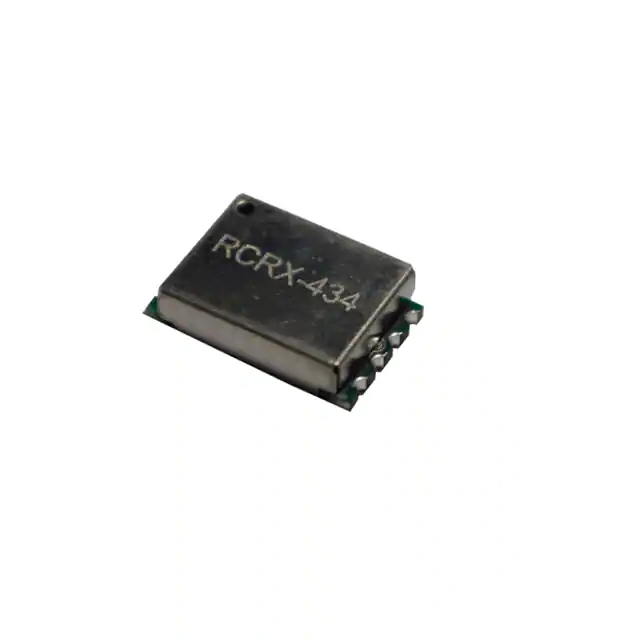

RCRX-434433.92MHZ AM RECEIVER MODULE |
100 | - |
|
数据表 |
- | 8-SMD Module | Tube | Active | 433.92MHz | -108dBm | 10kbps | AM, ASK, OOK | AM Radio Receiver | 5.5mA | - | - | - | - | 4.4V ~ 5V | -25°C ~ 80°C | - | - | Surface Mount | - |
|
|
RCBRX-434-L433.92MHz AM Receiver module 3V |
100 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Bag | Active | 433.92MHz | -108dBm | 10kbps | AM, ASK, OOK | General Purpose | - | - | - | Not Included | - | 3V ~ 3.6V, 4.4V ~ 5V | -25°C ~ 80°C | - | - | Through Hole | - |
|
|
RCBRX-434433.92MHz AM Receiver Module |
100 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Bag | Active | 433.92MHz | -108dBm | 10kbps | AM, ASK, OOK | General Purpose | - | - | - | Not Included | - | 3V ~ 3.6V, 4.4V ~ 5V | -25°C ~ 80°C | - | - | Through Hole | - |
|

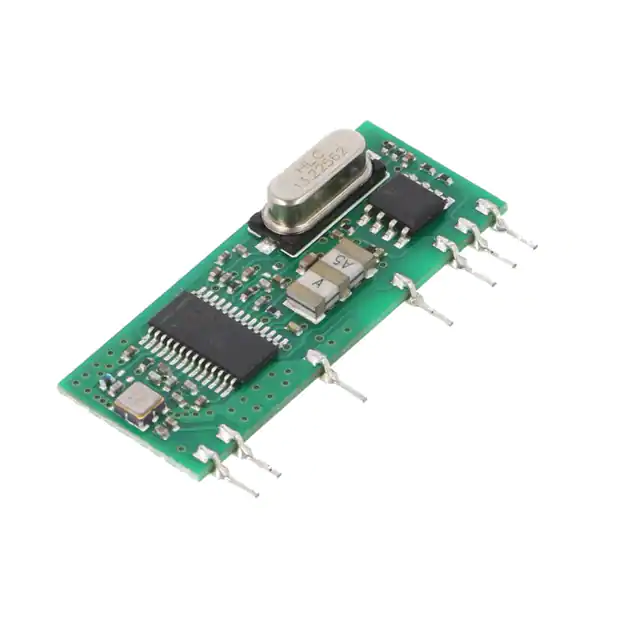

RCASK4-434-CH433.92MHZ AM RECEIVER MODULE |
100 | - |
|
数据表 |
- | 15-SIP Module, 7 Leads | Box | Active | 433.92MHz | -113dBm | 4.8kbps | AM | AM Radio Receiver | 9mA | - | - | - | - | 4.5V ~ 5.5V | -20°C ~ 80°C | - | - | Through Hole | 15-SIP |
|

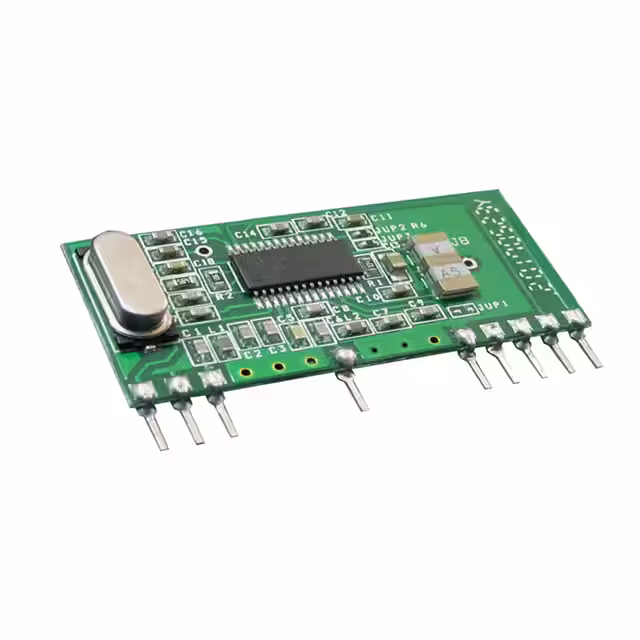

RC-RFSK1-868868MHZ FSK RECEIVER MODULE |
100 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Box | Active | 868.35MHz | -100dBm | 4.8kbps | FSK | Home/Building Automation, Wireless Security, Wireless Sensors | 6.8mA | - | - | - | - | 4.5V ~ 5.5V | -25°C ~ 80°C | Automotive | - | - | 15-SIP |
|
|
RC-RXASK-433433.92MHz ASK Receiver module |
100 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Case | Active | 433MHz | -112dBm | 4.8kbps | AM | Home/Building Automation | 6mA | - | - | Not Included | - | 4.5V ~ 5.5V | -20°C ~ 70°C | - | - | Through Hole | 15-SIP |
|
|
RCRX-868868MHz AM Receiver Module |
100 | - |
|
数据表 |
- | 8-SMD Module | Tube | Active | 868.35MHz | -112dBm | 10kbps | AM, ASK, OOK | Home/Building Automation, Security Systems, Wireless Sensors | - | - | - | Not Included | - | 3V ~ 3.6V, 4.4V ~ 5V | -40°C ~ 80°C | - | - | Surface Mount | - |
|
|
RCRX-868-L868MHz AM Receiver Module |
100 | - |
|
数据表 |
- | 8-SMD Module | Tube | Active | 868.35MHz | -112dBm | 10kbps | AM, ASK, OOK | Home/Building Automation, Security Systems, Wireless Sensors | - | - | - | Not Included | - | 3V ~ 3.6V, 4.4V ~ 5V | -40°C ~ 80°C | - | - | Surface Mount | - |
|
|
RCBRX-868-M868MHz AM Receiver Module |
100 | - |
|
数据表 |
- | 15-SIP Module, 7 Leads | Bag | Active | 868.35MHz | -112dBm | 10kbps | AM, ASK, OOK | General Purpose | - | - | - | Not Included | - | 3V ~ 3.6V, 4.4V ~ 5V | -20°C ~ 80°C | - | - | Through Hole | - |
|
|
RC-RHCS-4CH433.92MHz AM Superhet Receiver M |
100 | - |
|
数据表 |
- | 15-SIP Module, 10 Leads | Bag | Active | 433.92MHz | -108dBm | 10kbps | AM, ASK, OOK | Home/Building Automation, Industrial Control, Security Systems | 6.8mA | - | - | Not Included | - | 4.5V ~ 5.5V | -25°C ~ 80°C | - | - | Through Hole | - |
|
|
RC-RFSK1-433.42N433.42MHz FSK Receiver module |
50 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Case | Active | 433.42MHz | -118dBm | 4.8kbps | FSK | Home/Building Automation | 8mA | - | - | Not Included | - | 4.5V ~ 5.5V | -20°C ~ 70°C | - | - | Through Hole | 15-SIP |
|
|
RC-RXASK-869.5869.5MHz ASK Receiver module |
50 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Case | Active | 869.5MHz | -112dBm | 4.8kbps | AM | Home/Building Automation | 6mA | - | - | Not Included | - | 4.5V ~ 5.5V | -20°C ~ 70°C | - | - | Through Hole | 15-SIP |
|
|
RC-RXASK-433.42433.42MHz ASK Receiver module |
50 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Case | Active | 433.42MHz | -112dBm | 4.8kbps | AM | Home/Building Automation | 6mA | - | - | Not Included | - | 4.5V ~ 5.5V | -20°C ~ 70°C | - | - | Through Hole | 15-SIP |
|
|
RC-RFSK1-868.95N868.95MHz FSK Receiver module |
50 | - |
|
数据表 |
- | 15-SIP Module, 9 Leads | Case | Active | 868.95MHz | -118dBm | 4.8kbps | FSK | Home/Building Automation | 8mA | - | - | Not Included | - | 4.5V ~ 5.5V | -20°C ~ 70°C | - | - | Through Hole | 15-SIP |
