滑动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825011-7SWITCH SLIDE DPDT 300MA 115V |
343 | - |
|
数据表 |
ASF | Tube | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Surface Mount | Gull Wing | Tape Seal |
|
25146NAHSWITCH SLIDE DPDT 4A 125V |
3,628 | - |
|
数据表 |
25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1571982-4SWITCH SLIDE SPDT 0.4VA 20V |
3,047 | - |
|
数据表 |
TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1571982-7SWITCH SLIDE DPDT 0.4VA 20V |
2,088 | - |
|
数据表 |
TSS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
|
2-1825011-4SWITCH SLIDE 4PDT 0.4VA 20V |
1,743 | - |
|
数据表 |
ASF | Tube | Active | 4PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
3-1825010-8SWITCH SLIDE 6PDT 0.4VA 20V |
3,158 | - |
|
数据表 |
ASE | Bulk | Active | 6PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
EG2210A-REDACTUATORSWITCH SLIDE DPDT 0.2A 30V |
2,102 | - |
|
数据表 |
EG | Bulk | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | - | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

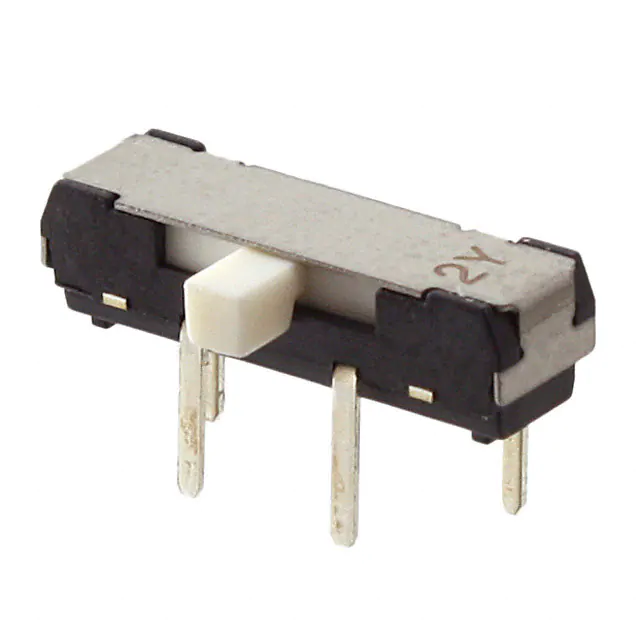

CL-SB-13C-11SWITCH SLIDE SP3T 200MA 12V |
175 | - |
|
数据表 |
CL-SB | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|

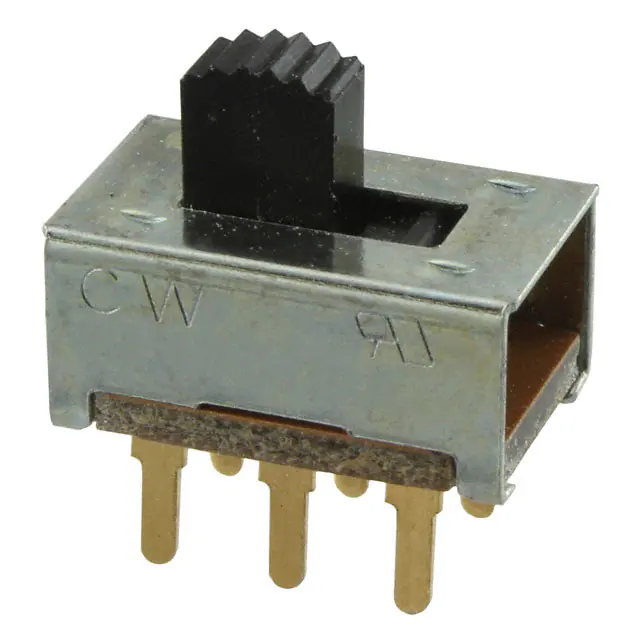

GF-126-0098SWITCH SLIDE DPDT 500MA 125V |
332 | - |
|
数据表 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
MSS-102564-V-SMTSWITCH SLIDE SPDT 0.3A 24V |
568 | - |
|
数据表 |
- | Bag | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 24 V | Flush | Flush | Nickel | Gold | Through Hole | PC Pin | - |
|

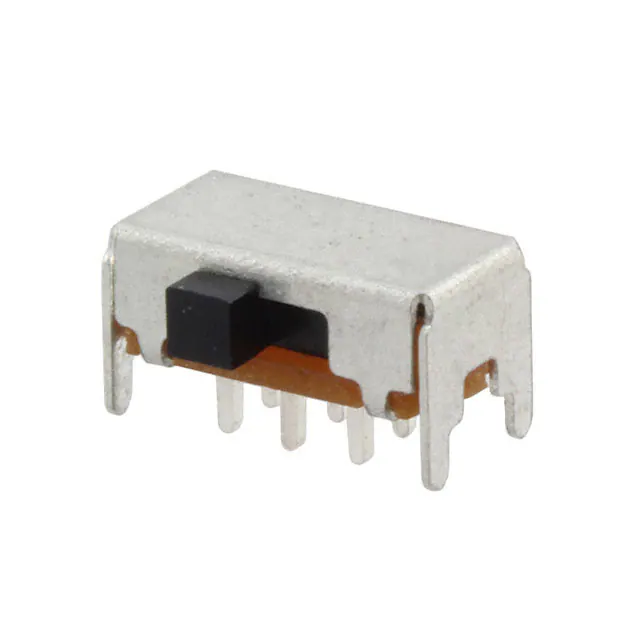

MFS201N-24-ZSWITCH SLIDE DPDT 300MA 30V |
1,081 | - |
|
数据表 |
MFS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 30 V | Standard | 1.50mm | - | - | Through Hole, Right Angle | PC Pin | - |
|
1571630-2SWITCH SLIDE DPDT 300MA 125V |
677 | - |
|
数据表 |
MSS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 9.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

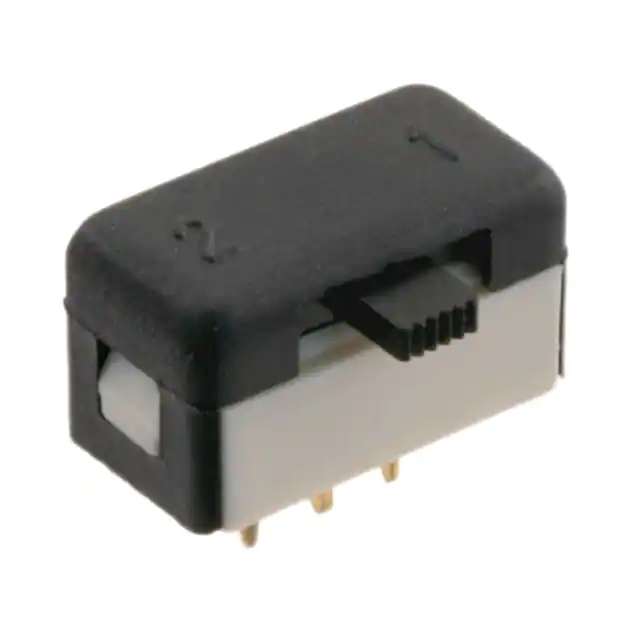

25339NLDSWITCH SLIDE SPDT 100MA 30V |
178 | - |
|
数据表 |
25000N | Bulk | Active | SPDT | Not Specified | On-Off-On | 100mA (DC) | - | 30 V | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1103M2S3CBE2SWITCH SLIDE SPDT 0.4VA 20V |
103 | - |
|
数据表 |
1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

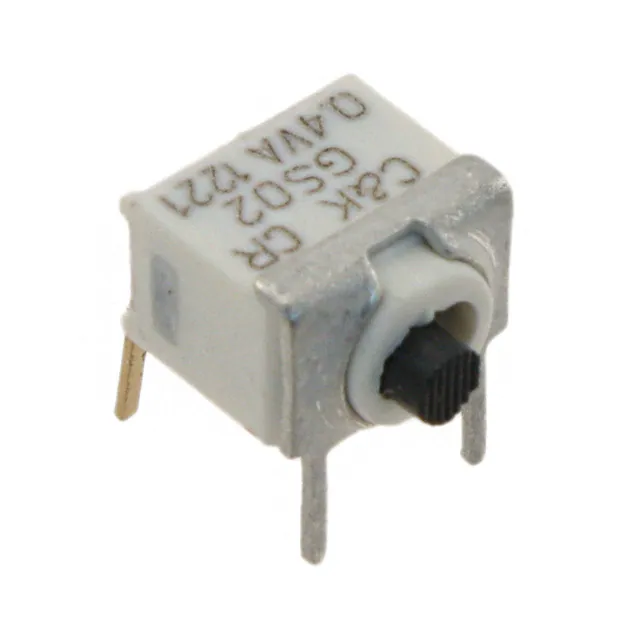

GS02MABESWITCH SLIDE SPST 0.4VA 20V |
218 | - |
|
数据表 |
GS | Tray | Active | SPST | Not Specified | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.27mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825265-2SWITCH SLIDE 4PDT 0.4VA 20V |
2,129 | - |
|
数据表 |
MSS | Bulk | Active | 4PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 7.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

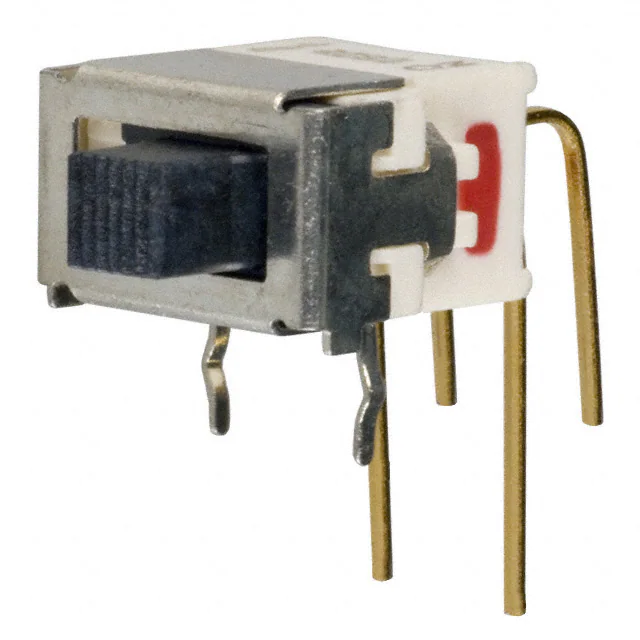

ES22MABESWITCH SLIDE DPST 0.4VA 20V |
145 | - |
|
数据表 |
ES | Tray | Active | DPST | Not Specified | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.07mm | Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
2-1825011-2SWITCH SLIDE 4PDT 0.4VA 20V |
17 | - |
|
数据表 |
ASF | Tube | Active | 4PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
6-1825011-2SWITCH SLIDE 6PDT 0.4VA 20V |
4 | - |
|
数据表 |
ASF | Tube | Active | 6PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
|
SLW-1277545-2A-RA-S-D12.7 X 7.5 X 4.5 MM, 2 MM RAISED |
2,934 | - |
|
数据表 |
SLW | Box | Active | SP3T | Shorting (MBB) | On-On-On | 300mA (DC) | - | 50 V | Standard | 2.00mm | Phosphor Copper | Silver | Through Hole, Right Angle | PC Pin | - |
