滑动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF-323-0001SWITCH SLIDE SPST 3A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
GF-324-0126SWITCH SLIDE SPDT 3A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-324-0156SWITCH SLIDE SPDT 3A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
GS-100-0005SWITCH SLIDE SPDT 500MA 125V |
0 | - |
|
数据表 |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 4.65mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

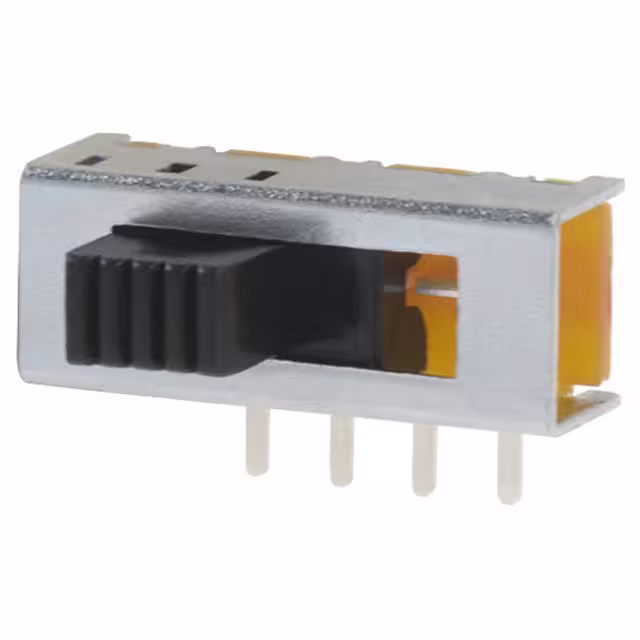

STS131RASWITCH SLIDE SP3T 300MA 125V |
0 | - |
|
数据表 |
STS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MHS222GRASWITCH SLIDE DPDT 0.4VA 20V |
0 | - |
|
数据表 |
MHS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GF-1126-0001SWITCH SLIDE DPDT 11A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
GF-323-0092SWITCH SLIDE SPST 3A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 19.05mm | Copper | Silver | Panel Mount | Wire Wrap | - |
|
|
GF-626-0000SWITCH SLIDE DPDT 6A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

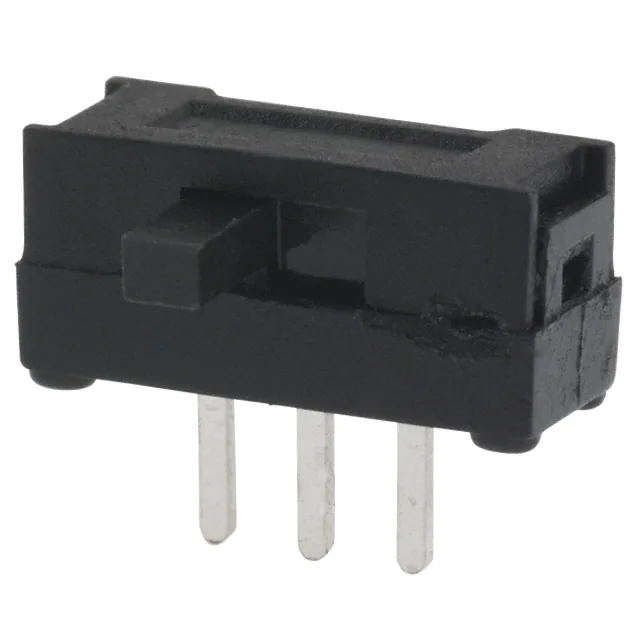

SSJ12RSWITCH SLIDE SPDT 100MA 12V |
0 | - |
|
数据表 |
SSJ | Bulk | Obsolete | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 12 V | Standard | 2.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
CL-SB-13A-02SWITCH SLIDE SP3T 200MA 12V |
0 | - |
|
数据表 |
CL-SB | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount | J Lead | - |
|

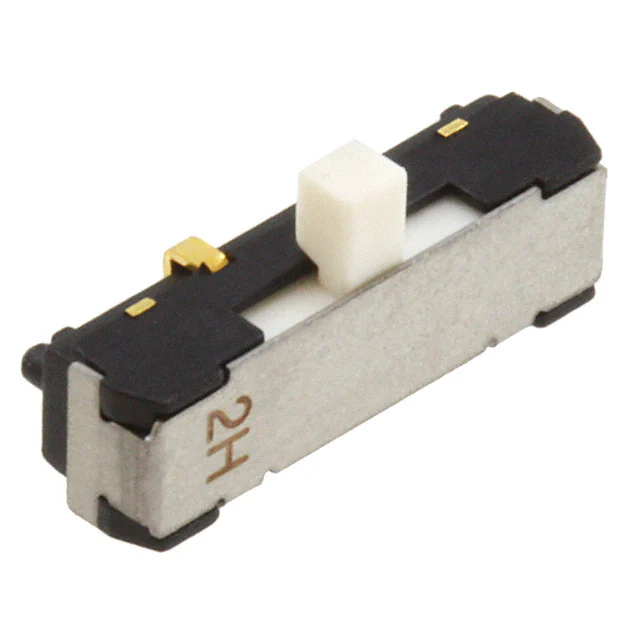

CL-SB-13A-12SWITCH SLIDE SP3T 200MA 12V |
0 | - |
|
数据表 |
CL-SB | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount, Right Angle | J Lead | - |
|
CL-SB-13B-02SWITCH SLIDE SP3T 200MA 12V |
0 | - |
|
数据表 |
CL-SB | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount | Gull Wing | - |
|

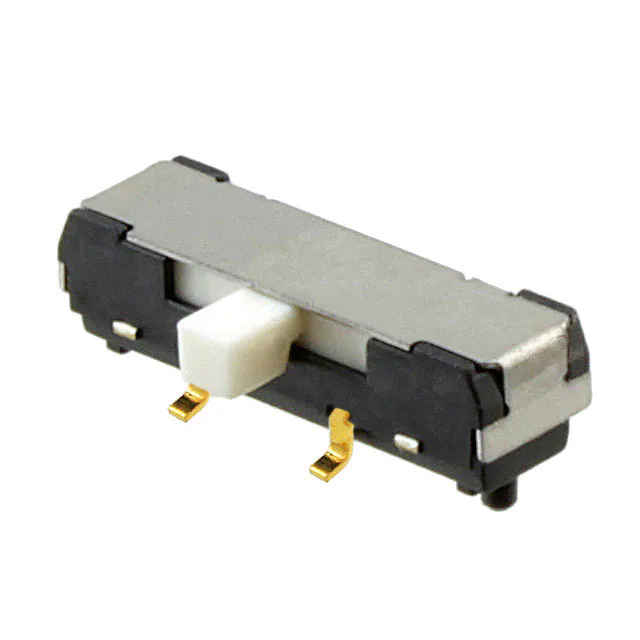

CL-SB-13B-12SWITCH SLIDE SP3T 200MA 12V |
0 | - |
|
数据表 |
CL-SB | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
GF-165-0000SWITCH SLIDE 3PDT 500MA 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | 3PDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount, Right Angle | Solder Lug | - |
|
|
GF-326-0253SWITCH SLIDE DPDT 3A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 19.05mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
GI-159-0006SWITCH SLIDE DP4T 3A 125V |
0 | - |
|
数据表 |
GI | Bulk | Active | DP4T | Not Specified | On-On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 11.50mm | Copper | Silver | Panel Mount, Right Angle | PC Pin | - |
|

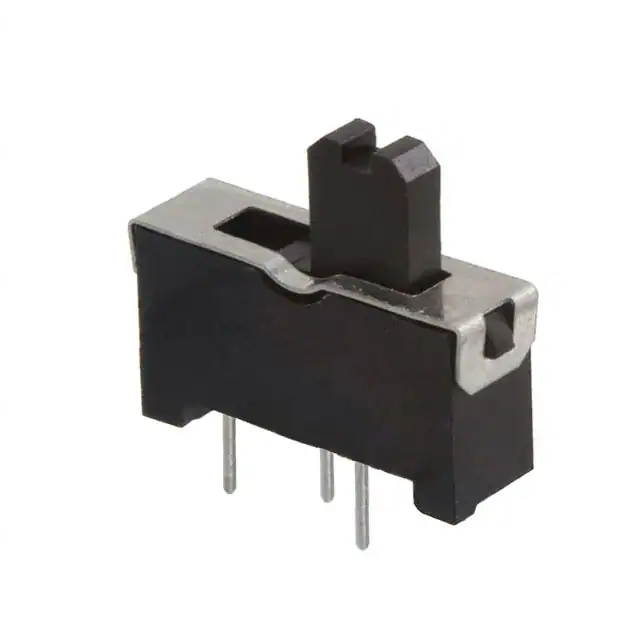

MFS101D-9-ZSWITCH SLIDE SPDT 300MA 12V |
0 | - |
|
数据表 |
MFS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 12 V | Standard | 3.30mm | - | - | Through Hole | PC Pin | - |
|
|
GF-1125-0000SWITCH SLIDE DPST 11A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | DPST | Not Specified | On-Off | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-326-0093SWITCH SLIDE DPDT 3A 125V |
0 | - |
|
数据表 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 12.70mm | Copper | Silver | Panel Mount | PC Pin | - |
