扬声器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM280508-3SPEAKER 8OHM 500MW TOP PORT 90DB |
0 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 7 kHz | 550Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Round | Polyethylenimine (PEI) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) | |
|
CMS-16093-076L100-67SPEAKER 6OHM 700MW TOP PORT 90DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|
CMS-151125-076L100-67SPEAKER 6OHM 700MW TOP PT 92.5DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
CMS-151135-076L100-67SPEAKER 6OHM 700MW TOP PORT 92DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
CMS-151125-078L100-67SPEAKER 8OHM 700MW TOP PORT 91DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
CMS-151135-078L100-67SPEAKER 8OHM 700MW TOP PORT 91DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
CMS-160925-078L100-67SPEAKER 8OHM 700MW TOP PORT 90DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|
CMS-16093-078L100-67SPEAKER 8OHM 700MW TOP PORT 91DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|

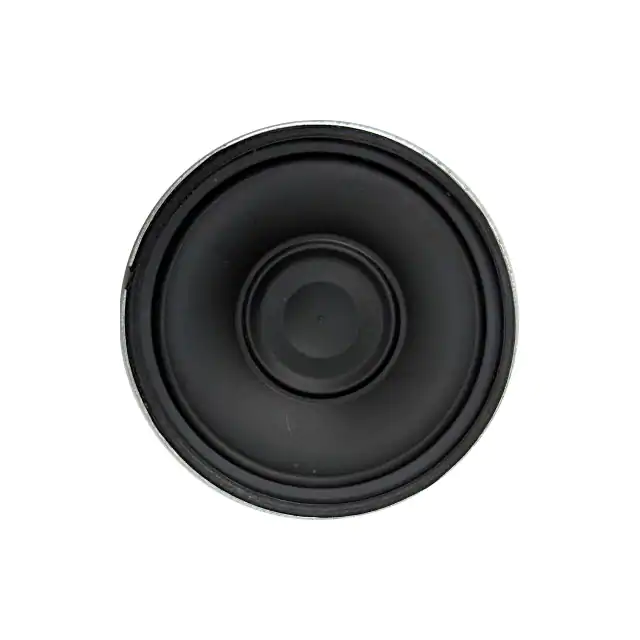

SM360532-3SPEAKR 32OHM 500MW TOP PORT 97DB |
0 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 6 kHz | 550Hz | 32 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.417" Dia (36.00mm) | |
|
CMS-181325-078L100-67SPEAKER 8OHM 700MW TOP PORT 93DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | |
|
AR01032MR-LWC21-2-RSPEAKR 32OHM 10MW TOP PORT 114DB |
0 | - |
|
数据表 |
- | Tray | Active | Magnetic | Receiver | 300 Hz ~ 3.4 kHz | - | 32 Ohms | 114.00 | - | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.394" Dia (10.00mm) | |
|
CMS-15118-30-SPSPEAKER 8OHM 700MW TOP PORT 90DB |
0 | - |
|
数据表 |
CMS | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|

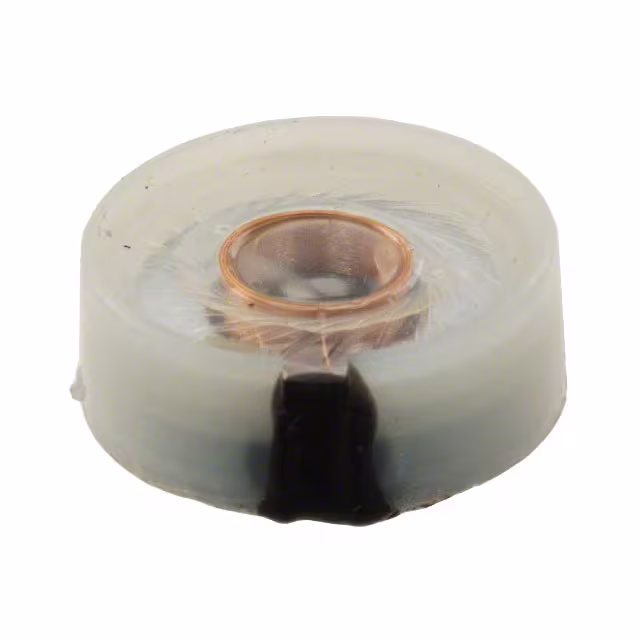

PSR-11N08S-JQSPEAKER 8OHM 250MW TOP PORT 75DB |
0 | - |
|
数据表 |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 1.6 kHz ~ 9 kHz | 1600Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.433" Dia (11.00mm) | |
|
CMS-29958FSPEAKER 8OHM 100MW TOP PORT 78DB |
0 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 4 kHz | 650Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.142" Dia (29.00mm) | |
|
|
AS02608MR-LW152-RSPEAKER 8OHM TOP PORT |
0 | - |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
AS02608MR-F-LW152-RSPEAKER 8OHM TOP PORT |
0 | - |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

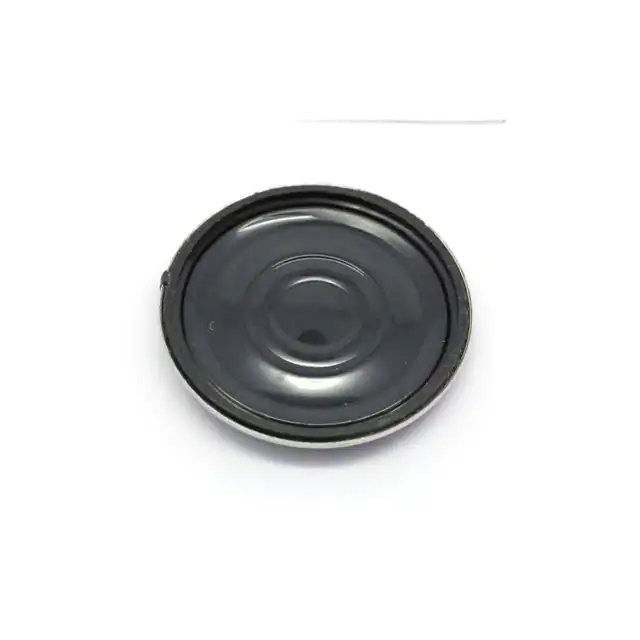

SM320608-1SPEAKER 8OHM 500MW TOP PORT 90DB |
0 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 7 kHz | 600Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.260" Dia (32.00mm) | |
|

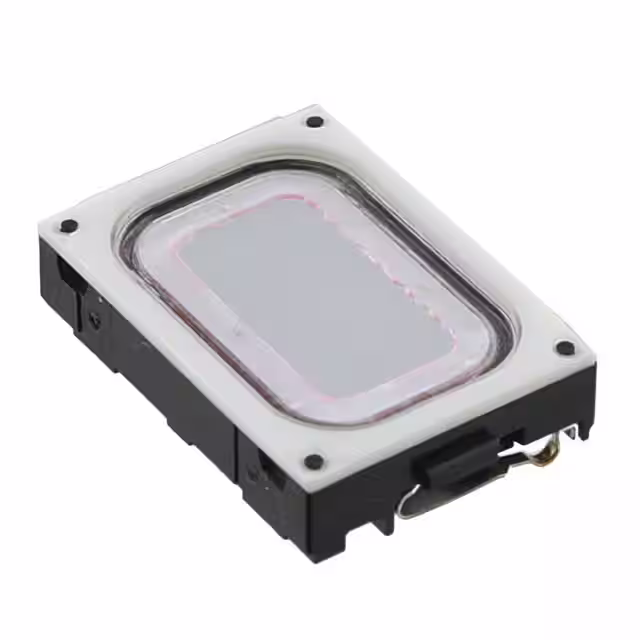

2403 260 00057SPEAKER 8OHM 700MW TOP PORT 73DB |
0 | - |
|
数据表 |
Dumbo | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 650Hz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 700 mW | 1 W | Top | Rectangular | Silicone | Nd-Fe-B | Waterproof | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) | |
|
2403 260 00098SPEAKER 6OHM 1W TOP PORT 73.5DB |
0 | - |
|
数据表 |
Cobra Side Fire | Tray | Obsolete | Magnetic | General Purpose | 300 Hz ~ 10 kHz | 780Hz | 6 Ohms | 73.50 | 1W/10mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Silicone | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|

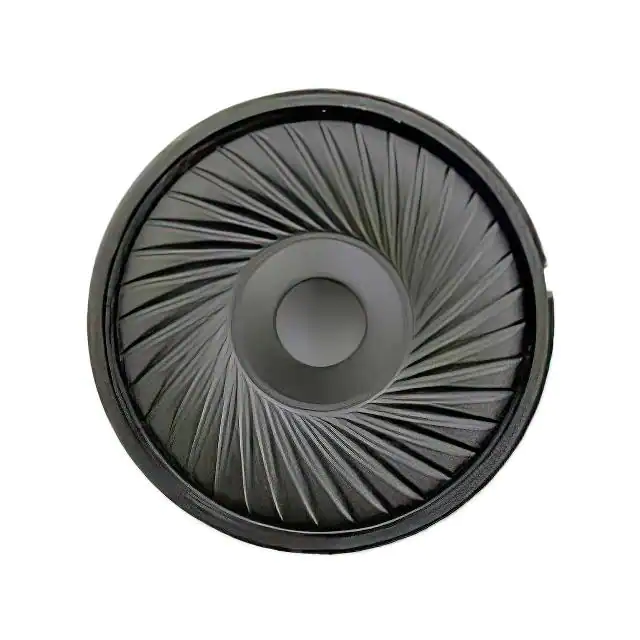

OWS-4065T-4CSPEAKER 4OHM 2.5W TOP PORT 104DB |
0 | - |
|
数据表 |
- | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 420Hz | 4 Ohms | 104.00 | 2.5W/10cm | Sensitivity | 2.5 W | 3 W | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" Dia (40.00mm) |
