通孔式电阻器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX97025004FVERES 5M OHM 1% 20W AXIAL |
0 | - |
|
数据表 |
Super Mox | Bulk | Active | 5 MOhms | ±1% | 20W | Metal Oxide Film | High Voltage, Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.323" Dia x 6.051" L (8.20mm x 153.70mm) | - | 2 | - |
|

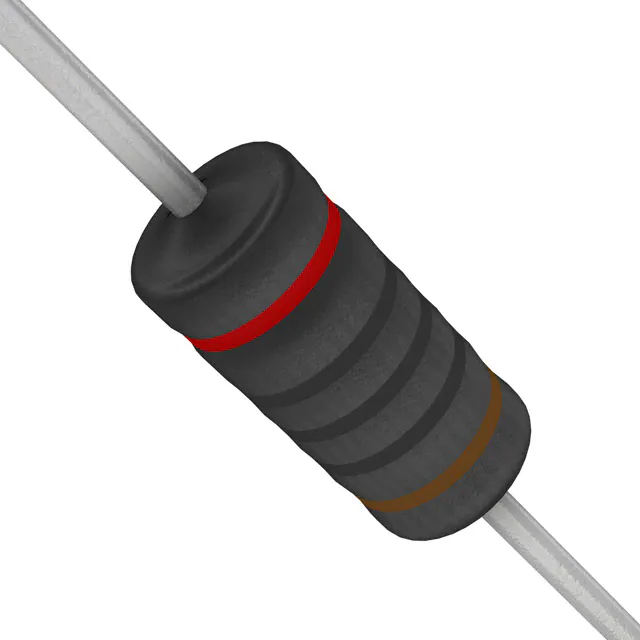

WHB200FETRES 200 OHM 1% 1W AXIAL |
0 | - |
|
数据表 |
WH | Tape & Reel (TR) | Active | 200 Ohms | ±1% | 1W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
23J30RERES 30 OHM 5% 3W AXIAL |
0 | - |
|
数据表 |
20 | Bulk | Active | 30 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
TEH140M4K70FERES 4.7K OHM 1% 140W TO247 |
0 | - |
|
数据表 |
TEH140 | Tube | Active | 4.7 kOhms | ±1% | 140W | Thick Film | Non-Inductive, Pulse Withstanding | 100ppm/°C | -55°C ~ 175°C | TO-247 | 0.630" L x 0.189" W (16.00mm x 4.80mm) | 0.925" (23.50mm) | 2 | - |
|
|
95J30RERES 30 OHM 5% 5W AXIAL |
0 | - |
|
数据表 |
90 | Bulk | Active | 30 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
|
MOX-2-132002F1RES 20K OHM 1% 3W AXIAL |
0 | - |
|
数据表 |
Maxi-Mox | Bulk | Active | 20 kOhms | ±1% | 3W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 210°C | Axial | 0.345" Dia x 2.140" L (8.76mm x 54.36mm) | - | 2 | - |
|
|
SM104022004FERES 2M OHM 1% 2.5W RADIAL |
0 | - |
|
数据表 |
Slim-Mox | Bulk | Active | 2 MOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.000" L x 0.070" W (25.40mm x 1.78mm) | 0.250" (6.35mm) | 2 | - |
|
|
TEH140M2R00FERES 2 OHM 1% 140W TO247 |
0 | - |
|
数据表 |
TEH140 | Tube | Active | 2 Ohms | ±1% | 140W | Thick Film | Non-Inductive, Pulse Withstanding | 100ppm/°C | -55°C ~ 175°C | TO-247 | 0.630" L x 0.189" W (16.00mm x 4.80mm) | 0.925" (23.50mm) | 2 | - |
|
|
23JR33E3W 0.33 OHMS VITREOUS 5% |
0 | - |
|
数据表 |
20 | Bulk | Active | 330 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
OD301JERES 300 OHM 5% 1/4W AXIAL |
0 | - |
|
数据表 |
Little Demon® OD | Bulk | Active | 300 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
WHER10FETRES 0.1 OHM 1% 5W AXIAL |
0 | - |
|
数据表 |
WH | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 5W | Wirewound | Non-Inductive | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
TP810PW100RJERES 100 OHM 5% 10W RADIAL |
0 | - |
|
数据表 |
TP | Tray | Active | 100 Ohms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | 100ppm/°C | - | Radial | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.090" (27.69mm) | 2 | - |
|
|
UM030Z1008JERES 10G OHM 5% 1W RADIAL |
0 | - |
|
数据表 |
Ultra-Mox | Bulk | Active | 10 GOhms | ±5% | 1W | Thick Film | High Voltage | ±250ppm/°C | -55°C ~ 125°C | Radial | 1.181" L x 0.063" W (30.00mm x 1.60mm) | 0.256" (6.50mm) | 2 | - |
|
|
23J390E3W 390 OHMS VITREOUS 5% |
0 | - |
|
数据表 |
20 | Bulk | Active | 390 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
TWW5J43RERES 43 OHM 5% 5W RADIAL LEAD |
0 | - |
|
数据表 |
TWW | Bulk | Active | 43 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial Lead | 0.512" L x 0.354" W (13.00mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
|
TEH140M1K00FERES 1K OHM 1% 140W TO247 |
0 | - |
|
数据表 |
TEH140 | Tube | Active | 1 kOhms | ±1% | 140W | Thick Film | Non-Inductive, Pulse Withstanding | 100ppm/°C | -55°C ~ 175°C | TO-247 | 0.630" L x 0.189" W (16.00mm x 4.80mm) | 0.925" (23.50mm) | 2 | - |
|
|
20J40KERES 40K OHM 5% 10W AXIAL |
0 | - |
|
数据表 |
20 | Bulk | Active | 40 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
|
SM102031005FERES 10M OHM 1% 1W RADIAL |
0 | - |
|
数据表 |
Slim-Mox | Bulk | Active | 10 MOhms | ±1% | 1W | Thick Film | Non-Inductive | ±25ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
RC12KT11R0RES 11 OHM 10% 1/2W AXIAL |
0 | - |
|
数据表 |
RC | Bulk | Obsolete | 11 Ohms | ±10% | 0.5W, 1/2W | Carbon Composition | Non-Inductive, Pulse Withstanding | - | -55°C ~ 125°C | Axial | 0.142" Dia x 0.374" L (3.60mm x 9.50mm) | - | 2 | - |
|
|
CBT25K2K2RES 2.2K OHM 10% 1/4W AXIAL |
0 | - |
|
数据表 |
CBT, Neohm | Tape & Box (TB) | Active | 2.2 kOhms | ±10% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
