通孔式电阻器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRA-05R3900FE12RES 0.39 OHM 1% AXIAL |
2,700 | - |
|
数据表 |
MRA-5 | Bulk | Active | 390 mOhms | ±1% | 4W | Wirewound | Moisture Resistant, Non-Inductive, Non-Magnetic | - | -65°C ~ 250°C | Axial | 0.167" Dia x 0.562" L (4.24mm x 14.27mm) | - | 2 | - |
|
SM104031005JERES 10M OHM 5% 1.5W RADIAL |
941 | - |
|
数据表 |
Slim-Mox | Bulk | Active | 10 MOhms | ±5% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
SM102035006FERES 500M OHM 1% 1W RADIAL |
1,822 | - |
|
数据表 |
Slim-Mox | Bulk | Active | 500 MOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

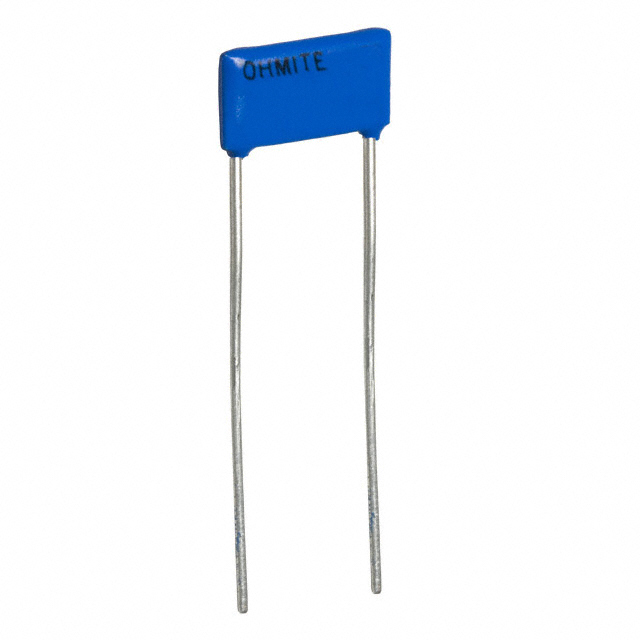

SM102033007FERES 3 GOHM 1% 1W RADIAL |
145 | - |
|
数据表 |
Slim-Mox | Bulk | Active | 3 GOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
PWR221T-50-6R00FRES 6 OHM 1% 50W TO220 |
468 | - |
|
数据表 |
PWR221T-50 | Tube | Active | 6 Ohms | ±1% | 50W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 105°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
|
|
SM102033004FERES 3M OHM 1% 1W RADIAL |
202 | - |
|
数据表 |
Slim-Mox | Bulk | Active | 3 MOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
RN60D2001FB14RES 2K OHM 1/4W 1% AXIAL |
580 | - |
|
数据表 |
Military, MIL-R-10509/1, RN60 | Bulk | Active | 2 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±100ppm/°C | -65°C ~ 175°C | Axial | 0.145" Dia x 0.344" L (3.68mm x 8.74mm) | - | 2 | - |
|
PWR220T-35-2000FRES 200 OHM 1% 35W TO220-2 |
259 | - |
|
数据表 |
PWR220T-35 | Tube | Active | 200 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-35-5R00FRES 5 OHM 1% 35W TO220-2 |
216 | - |
|
数据表 |
PWR220T-35 | Tube | Active | 5 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
MOX300005005FERES 50M OHM 1% 1/2W AXIAL |
367 | - |
|
数据表 |
Mini-Mox | Bulk | Active | 50 MOhms | ±1% | 0.5W, 1/2W | Thick Film | High Voltage, Moisture Resistant | 100ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|
|
MRA-051R000FE12RES 1 OHM 1% AXIAL |
231 | - |
|
数据表 |
MRA-5 | Bulk | Active | 1 Ohms | ±1% | 4W | Wirewound | Moisture Resistant, Non-Inductive, Non-Magnetic | ±50ppm/°C | -65°C ~ 250°C | Axial | 0.167" Dia x 0.562" L (4.24mm x 14.27mm) | - | 2 | - |
|
|
MRA-05R4700FE12RES 0.47 OHM 1% AXIAL |
147 | - |
|
数据表 |
MRA-5 | Bulk | Active | 470 mOhms | ±1% | 4W | Wirewound | Moisture Resistant, Non-Inductive, Non-Magnetic | - | -65°C ~ 250°C | Axial | 0.167" Dia x 0.562" L (4.24mm x 14.27mm) | - | 2 | - |
|
|
PWR220T-35-1500FRES 150 OHM 1% 35W TO220-2 |
155 | - |
|
数据表 |
PWR220T-35 | Tube | Active | 150 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
SM104034004FERES 4M OHM 1% 1.5W RADIAL |
1,897 | - |
|
数据表 |
Slim-Mox | Bulk | Active | 4 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
20J10KERES 10K OHM 5% 10W AXIAL |
836 | - |
|
数据表 |
20 | Bulk | Active | 10 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
RN65E1002FB14RES 10K OHM 1/2W 1% AXIAL |
256 | - |
|
数据表 |
Military, MIL-R-10509/2, RN65 | Bulk | Active | 10 kOhms | ±1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±25ppm/°C | -65°C ~ 175°C | Axial | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | - | 2 | - |
|
UB15-10KF1RES 10K OHM 1% 15W AXIAL |
335 | - |
|
数据表 |
UB | Bulk | Active | 10 kOhms | ±1% | 15W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±20ppm/°C | -55°C ~ 250°C | Axial | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | - | 2 | - |
|
|
PWR221T-30-1000FRES 100 OHM 1% 30W TO220-2 |
2,473 | - |
|
数据表 |
PWR221T-30 | Tube | Active | 100 Ohms | ±1% | 30W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -50°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
|
|
20J15KERES 15K OHM 5% 10W AXIAL |
210 | - |
|
数据表 |
20 | Bulk | Active | 15 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
RNC55J1002BSB14RES 10K OHM 1/8W .1% AXIAL |
795 | - |
|
数据表 |
Military, MIL-PRF-55182/01, RNC55 | Bulk | Active | 10 kOhms | ±0.1% | 0.125W, 1/8W | Metal Film | Military, Moisture Resistant, Weldable | ±25ppm/°C | -65°C ~ 175°C | Axial | 0.094" Dia x 0.250" L (2.39mm x 6.35mm) | - | 2 | S (0.001%) |
