拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022SA2A13/CULSWITCH TOGGLE M2 |
23 | - |
|
- |
M | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

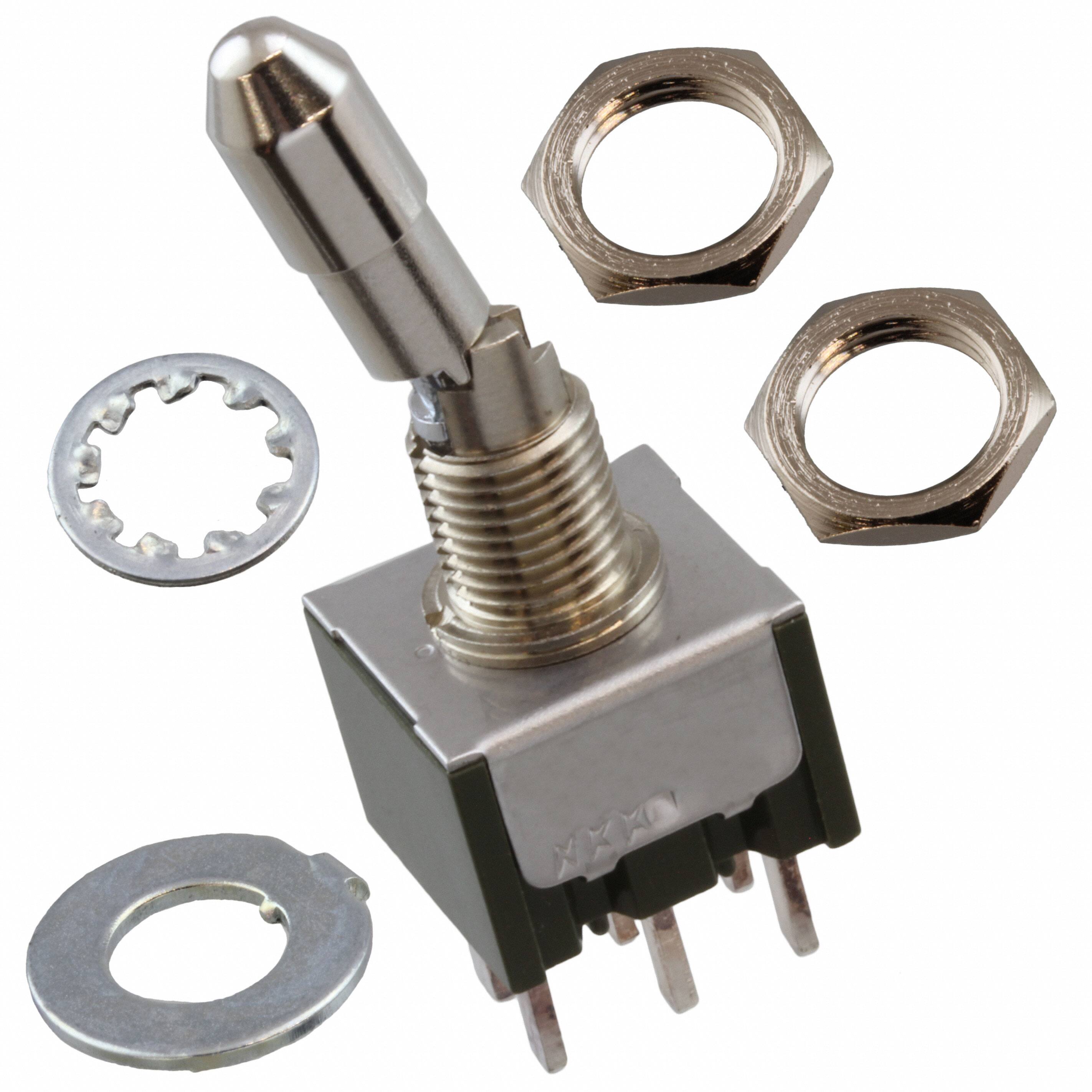

M2022LL1W02SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A28KB-AHSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
7208P3H3ZQESSWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
7000 | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 10.92mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
|
M2013BB3W01SWITCH TOGGLE SPDT 6A 125V |
32 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012BB1G01-AT402SSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

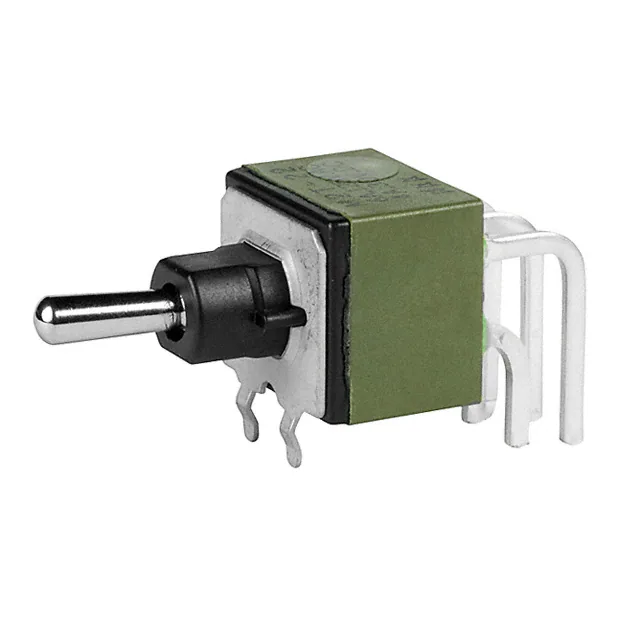

M2T22S4A5W30SWITCH TOGGLE DPDT 6A 125V |
1 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2043SS1W01SWITCH TOGGLE 4PDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

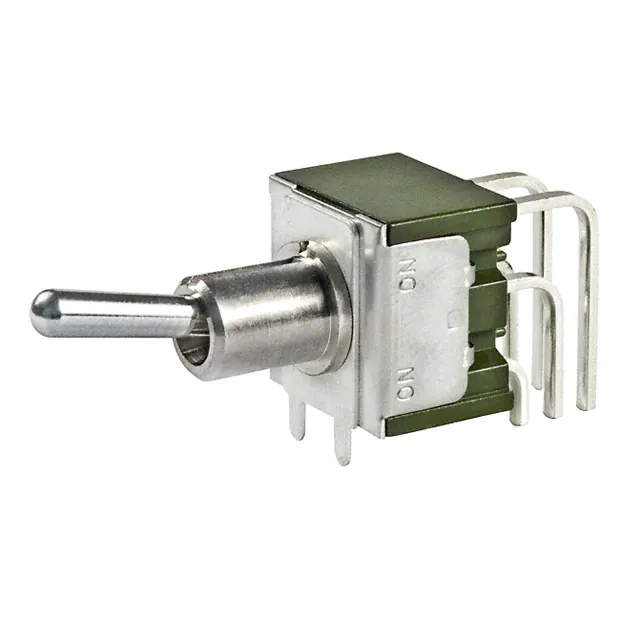

M2022SS2W45SWITCH TOGGLE DPDT 6A 125V |
63 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012B2B1A01/U-AT401ABUSHING MOUNT MINIATURE TOGGLE |
26 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2012B2B1A01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
26 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2018ES2W13SWITCH TOGGLE SPDT 6A 125V |
26 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
D22023BSWITCH TOGGLE DPDT 0.4VA 48V |
0 | - |
|
数据表 |
D2 | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|

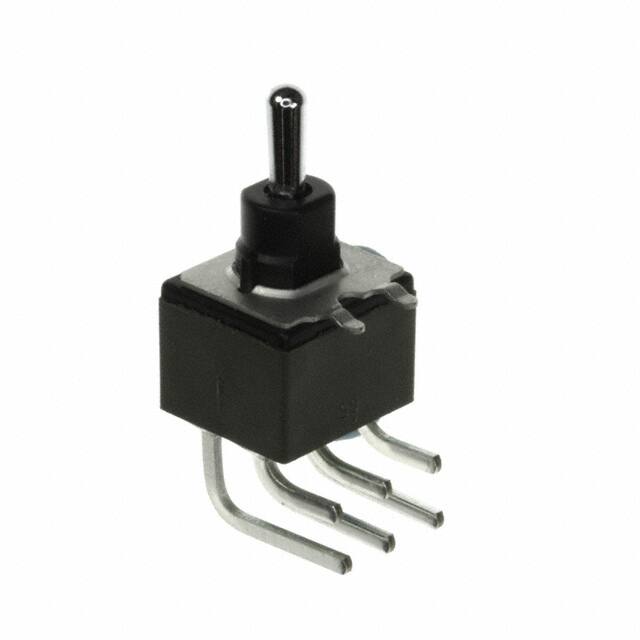

M2T23S4A5W30SWITCH TOGGLE DPDT 6A 125V |
10 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

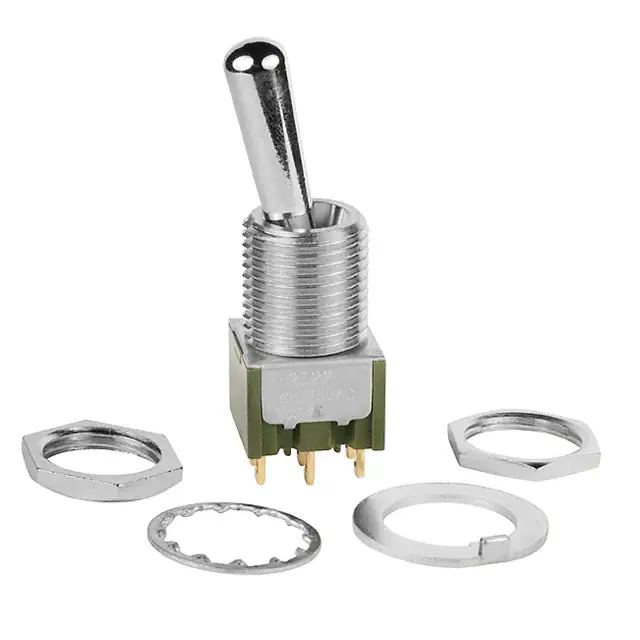

M2022B2B1A01SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101MD9V9BESWITCH TOGGLE SPDT 0.4VA 20V |
9 | - |
|
数据表 |
E | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2032LL1W30SWITCH TOGGLE 3PDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole, Right Angle | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022SS1W40-CASWITCH TOGGLE DPDT 6A 125V |
60 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
M2013SA2G13-BASWITCH TOGGLE SPDT 0.4VA 28V |
16 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
M2024SS2W13SWITCH TOGGLE SP3T 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
